Electromagnetic transmission type high-speed ultrasonic milling machine Ultrasonic drilling machine

Electromagnetic transmission type high-speed ultrasonic milling machine Ultrasonic drilling machine

Ultrasonic drilling machine: Ultrasonic drilling is a method that uses the ultrasonic vibration of the end face of the drill bit to drill the glass through the abrasive suspension.

  • Item No.:

    HS-M20-W
  • Payment:

    T/T, PayPal, Western Union
  • Product origin:

    China
  • Color:

    Silver and Green
  • Shipping port:

    Shanghai or Ningbo
  • Lead Time:

    45
  • Product Details

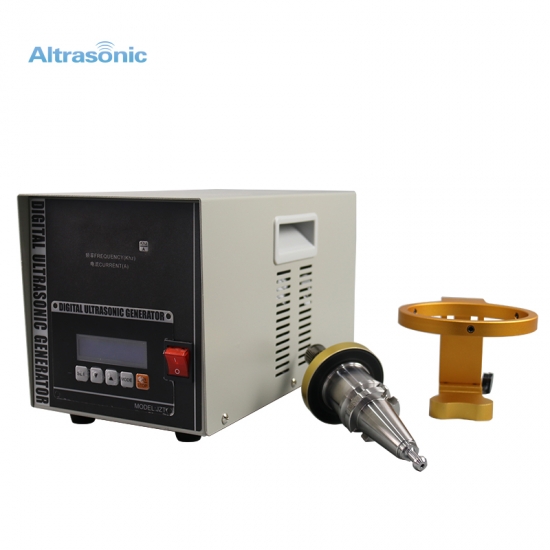

Electromagnetic transmission type high-speed ultrasonic milling machine Ultrasonic drilling machine




Specification:


 Item No  HS-M20
 Frequency  20 kHz
 Power  500 watt

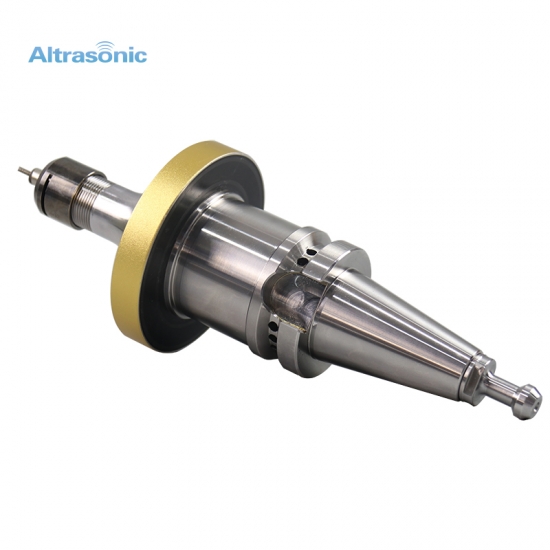

 Spindle taper  BT30
 Rotation speed  Maximum 24,000 r/min
 Amplitude  1~10 um
 Tool interface model  ER-16
 Weight  30 KG

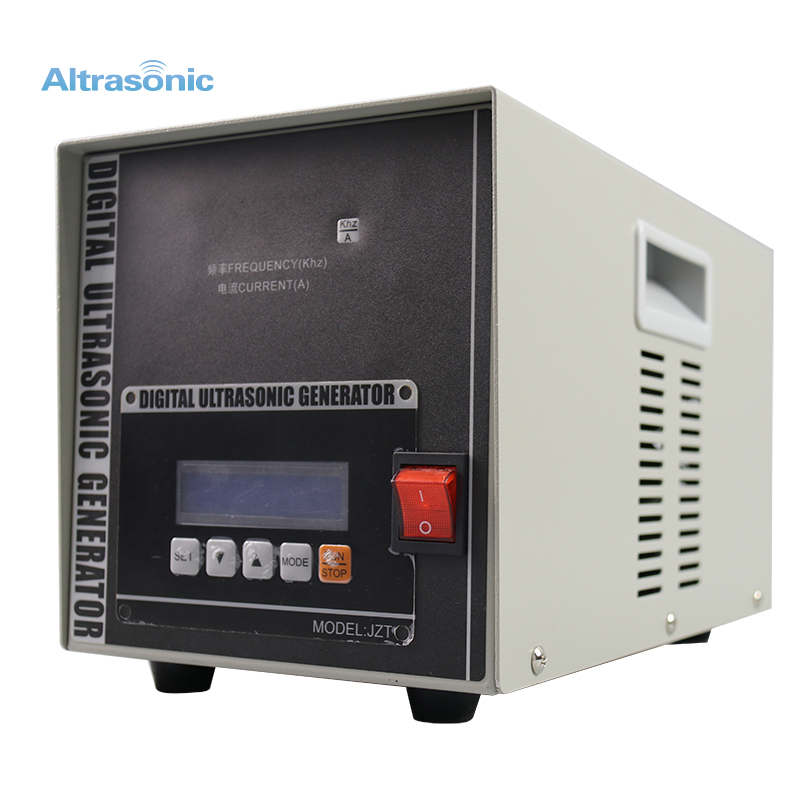

 Generator  Digital




Description:


Ultrasonic assisted drilling: The application of ultrasonic vibration for assisted drilling can effectively reduce drilling resistance and temperature, promote chip removal, increase tool life, greatly improve the quality of the hole wall and exit surface after processing, and achieve hard Drilling of brittle materials, such as diamond, glass, ceramics, tungsten carbide, titanium alloys, etc.; especially for the processing of small and deep holes, ultrasonic assisted drilling can achieve surface quality and processing efficiency that cannot be achieved by traditional drilling techniques . Ultrasonic-assisted milling uses ultrasonic vibration for auxiliary milling to realize the processing of composite materials and hard and brittle materials that are difficult to achieve by ordinary milling, such as diamond, glass, ceramics, carbides, titanium alloys, etc. Ultrasonic-assisted milling can achieve higher surface quality and greatly Reduce cutting force, improve processing efficiency, and extend tool life.



Advantages:


1. Suitable for processing hard metals, stones, diamonds, with high precision

2. Can be installed on CNC machine tools, can be used with a variety of spindle tool holders

3. Diversified tool sizes, the tool head can also be customized according to actual needs




Workshop:


CE:


Shipping:


Payment:
