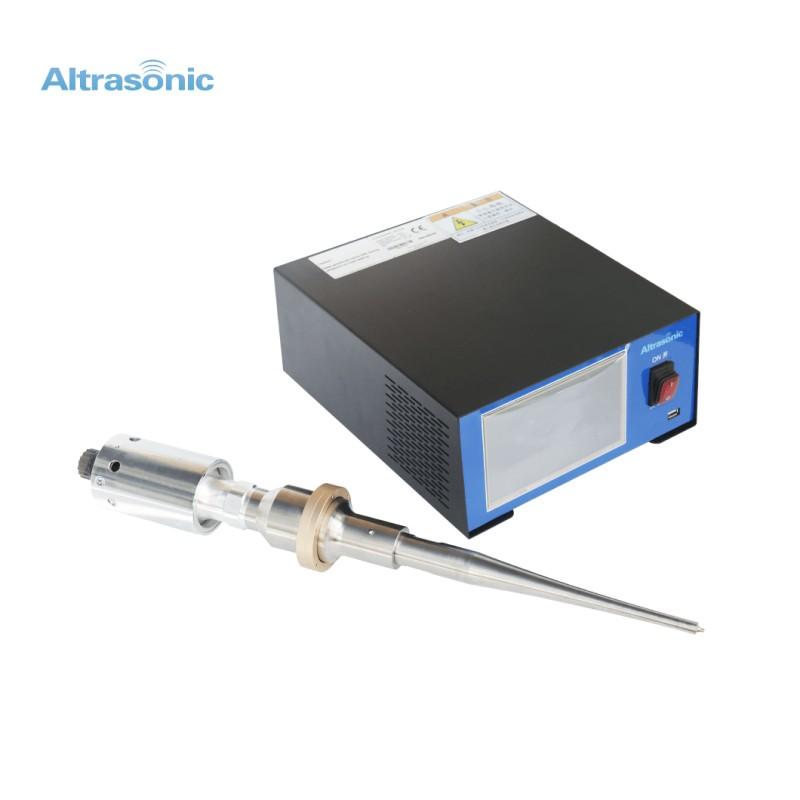

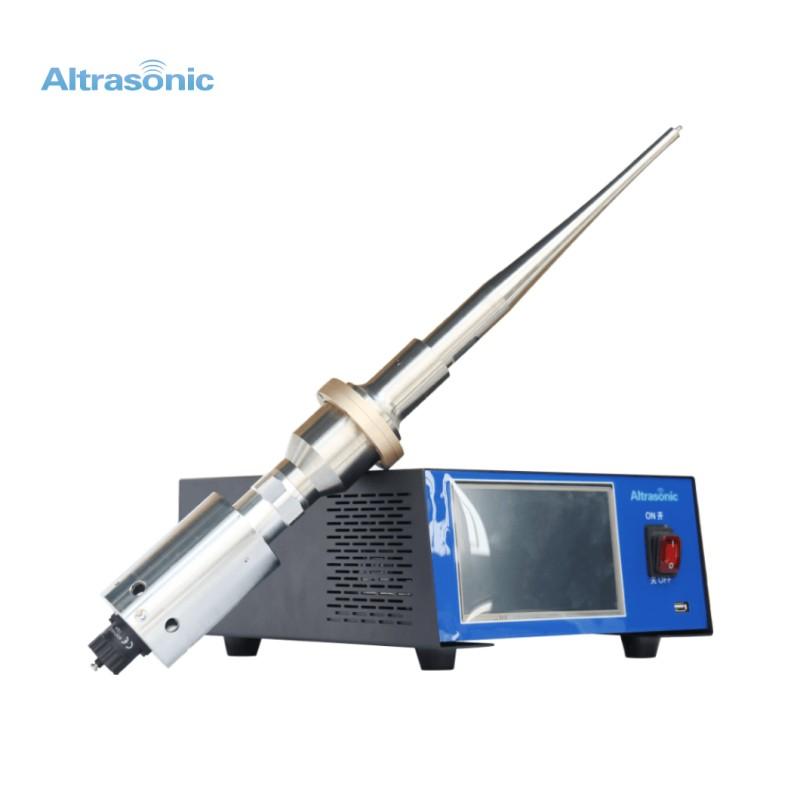

Ultrasonic Deburring System

 Specification

Working Principle

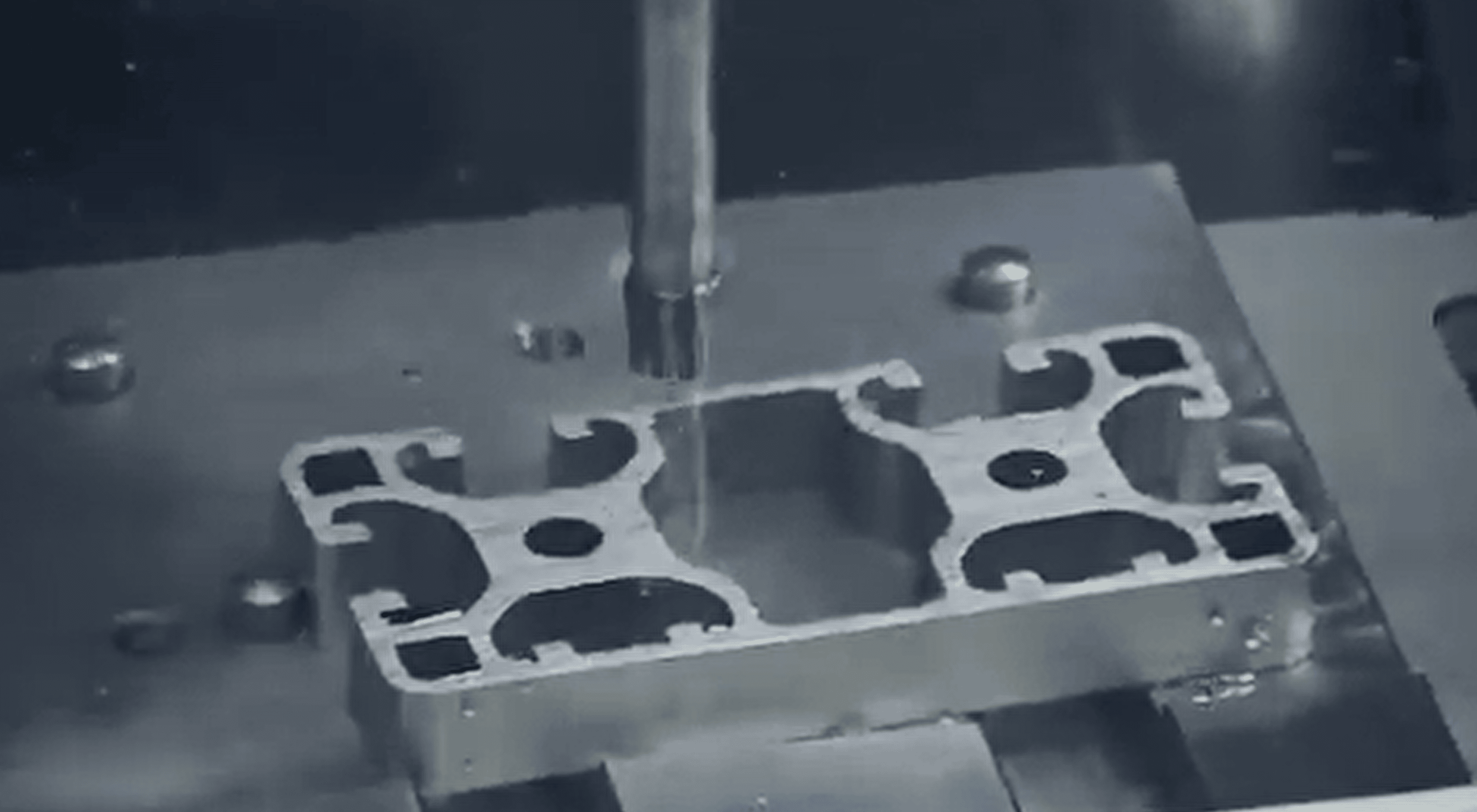

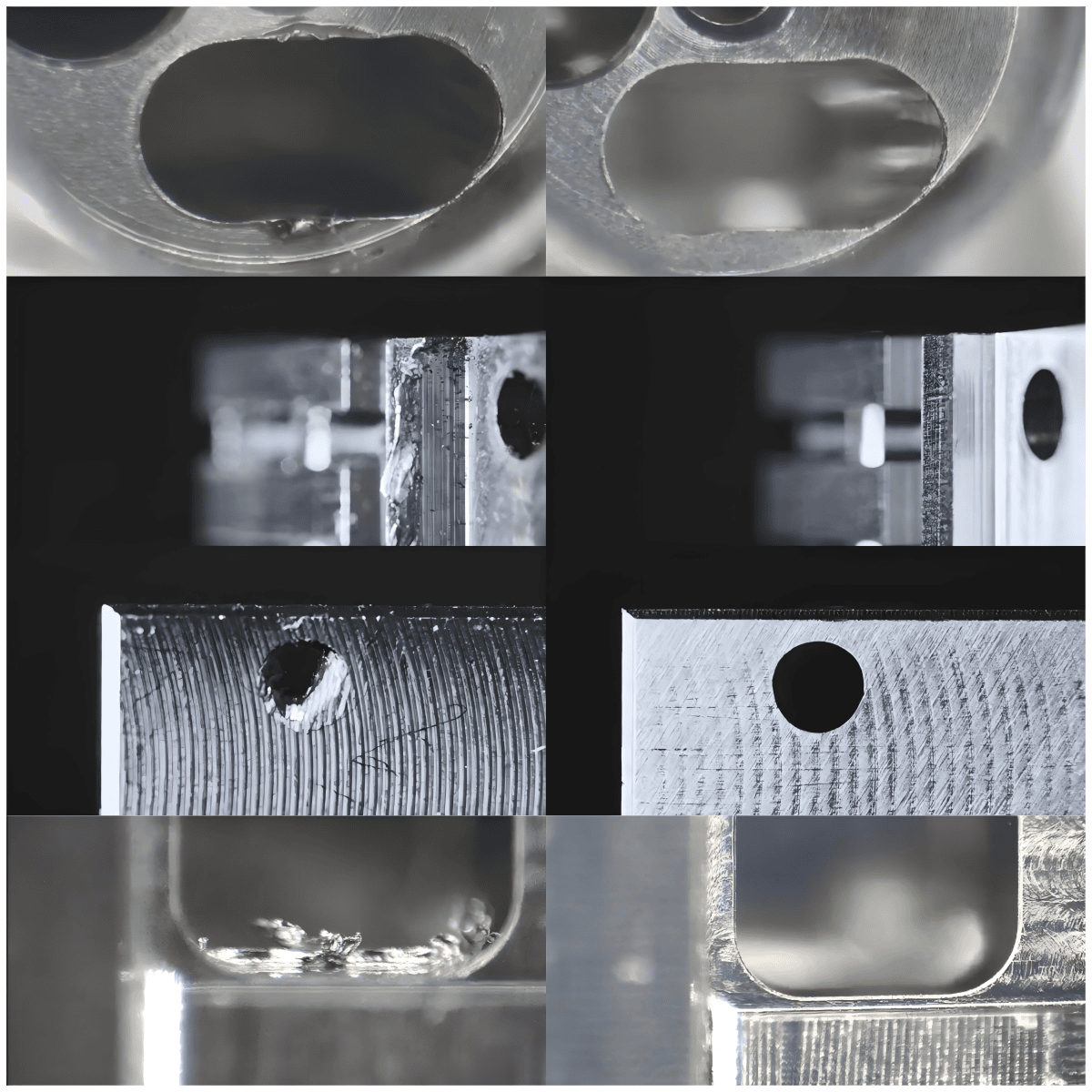

Altrasonic Technology's latest ultrasonic deburring system utilizes the cavitation effect and high-frequency vibration principle. It converts ultrasonic energy into targeted mechanical force, achieving non-contact deburring without chemical additives, using only process water as the medium. The ultrasonic sonotrode tip induces a large number of microscopic cavitation bubbles in the process water. When these bubbles rapidly collapse (implode), they release high-intensity impact force and discontinuous water flow, simultaneously causing high-frequency vibration of the burrs on the workpiece surface. The collapse impact force and vibration work together on the burrs (including intersecting holes, hidden burrs, injection molding parting line burrs, and "flash") on the inner and outer surfaces of the workpiece, causing the burrs to break off without thermal stress, without damaging the workpiece body or its original sharp edges.

Features

• Precise and Efficient: Targets and removes burrs from internal and external surfaces, blind holes, intersecting holes, and narrow cavities—areas difficult to reach with traditional processes. This includes workpieces made of special materials such as thin-walled parts and fiber-reinforced plastic parts, with no blind spots.
• Non-Destructive Processing: No material removal, no alteration of critical dimensional tolerances, no damage to the surface structure of parts, preserving the original sharp edges; no thermal stress impact, avoiding secondary burr formation.
• Simultaneous Cleaning: Simultaneously cleans the workpiece surface during deburring, removing fine impurities without additional cleaning steps.
• Extreme Energy Saving: Energy consumption is only 1%-2% of traditional processes such as high-pressure water jetting, with maximum energy savings of up to 95%.
• Environmentally Friendly and Low Burden: No chemical additives required, only process water, making it environmentally friendly; reduces waste generation and minimizes resource consumption.
• Material Compatibility: Compatible with metal parts (aluminum, zinc die castings, brass, etc.) and plastic parts (polyamide PA, polypropylene PP, polycarbonate PC). (etc.), covering multiple scenarios in high-precision manufacturing

• Adjustable parameters: Adapt to diverse deburring needs by adjusting amplitude, power, and ultrasonic action time.

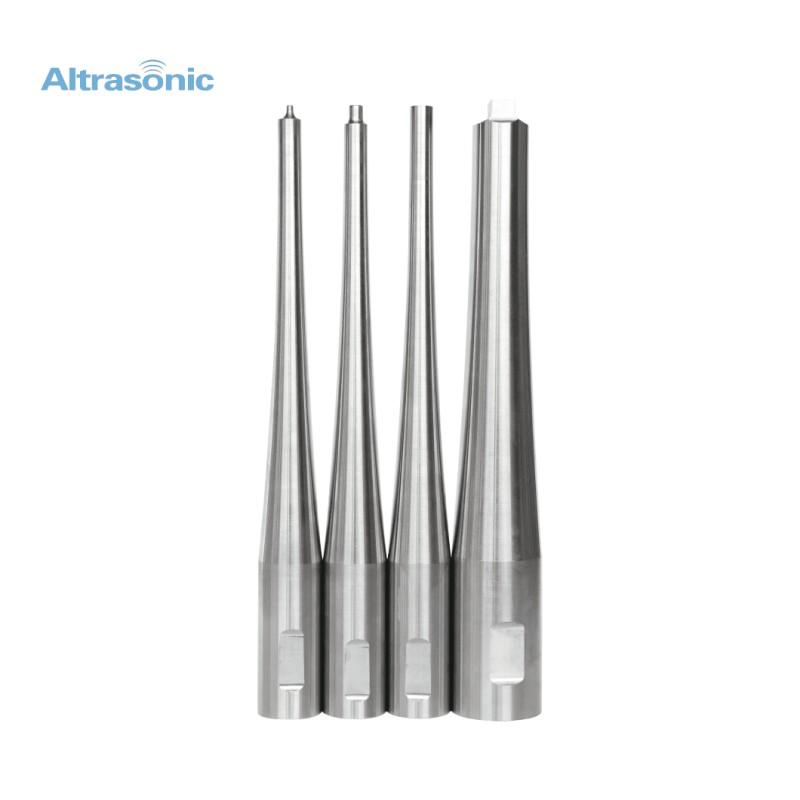

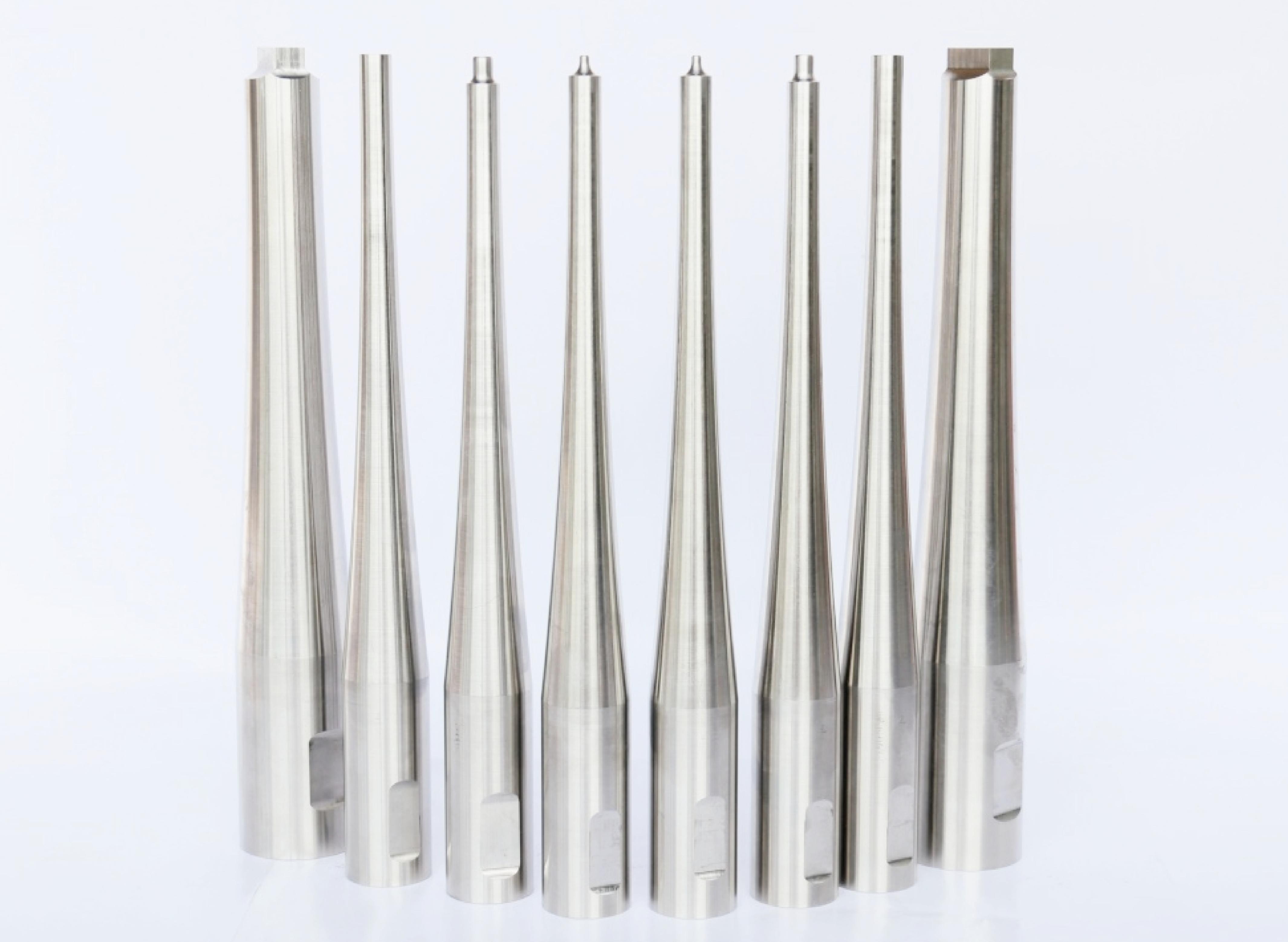

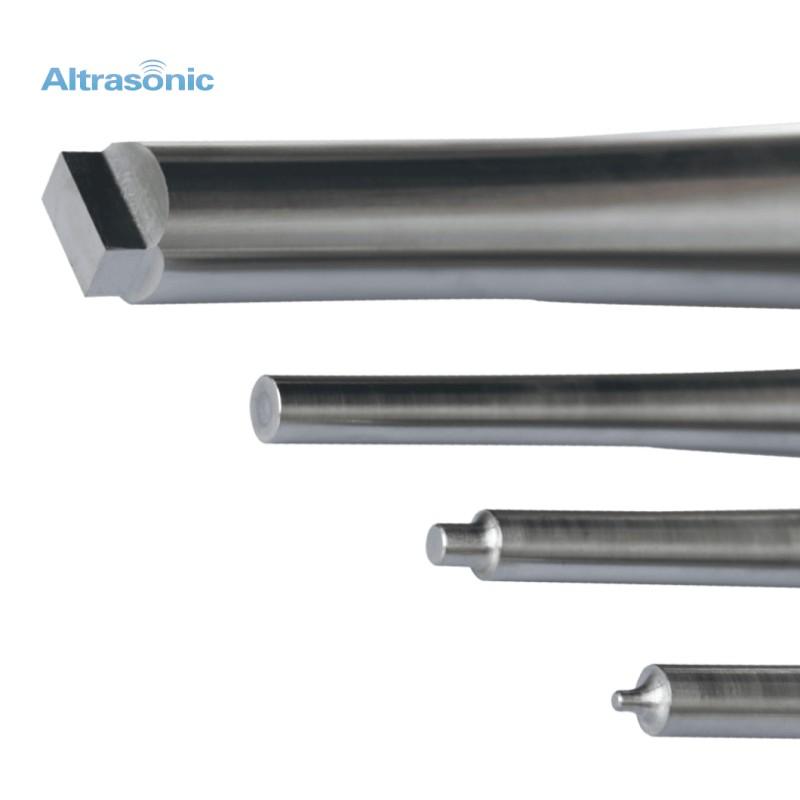

• Customized adaptation: The transducer can be precisely matched to the workpiece structure, and customized ultrasonic horn design improves processing adaptability.

• Flexible deployment: Supports manual handheld operation, semi-automatic and fully automated integration, and can be embedded in automated production lines; optional multi-drawer systems and industrial robots (such as ABB and Fanuc series) can be added to achieve unattended processing.
• Economical and reliable: Reduces processing costs, provides a cost-effective alternative for injection molded parts, etc., with strong process stability and repeatable verifiable results.
