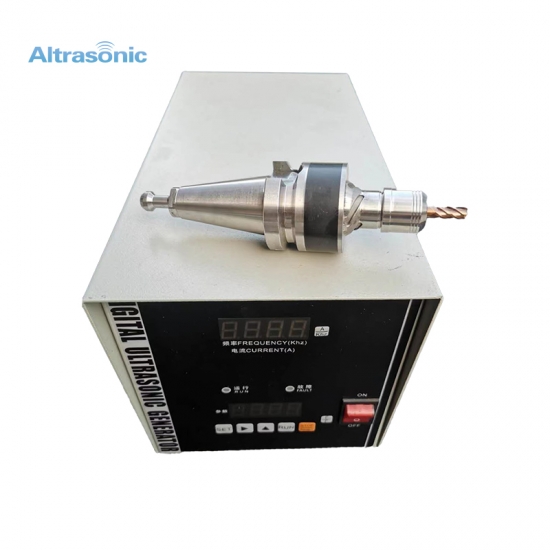

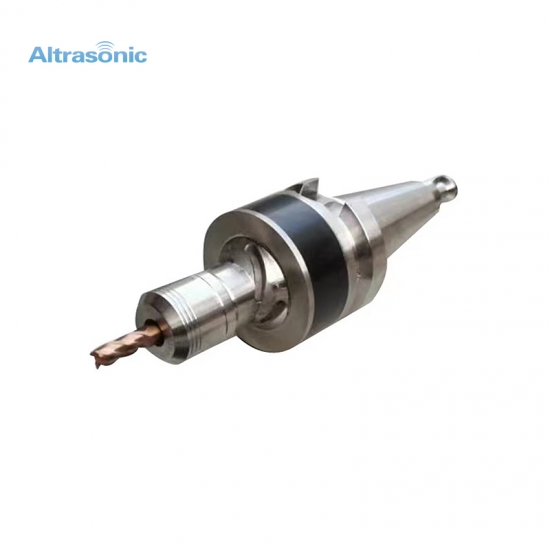

Fast Shipment Ceramic Processing Equipment BT50 Ultrasonic Assisted Milling System Automation Ultrasonic Machining

Fast Shipment Ceramic Processing Equipment BT50 Ultrasonic Assisted Milling System Automation Ultrasonic Machining

Ultrasonic vibration cutting is a kind of pulse cutting from a microscopic point of view.

  • Item No.:

    HS-M20-W
  • Payment:

    T/T, PayPal, Western Union
  • Product origin:

    China
  • Color:

    Silver and Yellow
  • Shipping port:

    Shanghai or Ningbo
  • Lead Time:

    45
  • Product Details


Ultrasonic non-contact auxiliary processing machine Hard and brittle material processing






Specification:


 Item No  HS-M20
 Frequency  20 kHz
 Power  500 watt
 Spindle taper  BT30
 Rotation speed  Maximum 24,000 r/min
 Amplitude  1~10 um
 Tool interface model  ER-16
 Weight  30 KG

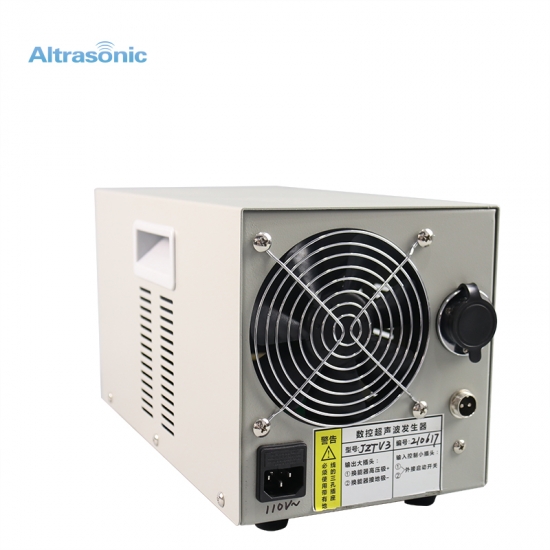

 Generator  Digital




Description:


Ultrasonic Machining It is also known as Ultrasonic impact grinding is an operation that involves a vibrating tool fluctuating the ultrasonic frequencies in order to remove the material from the work piece. The process involves an abrasive slurry that runs between the tool and the work piece.


Advantages:


1. Suitable for processing hard metals, stones, diamonds, with high precision

2. Can be installed on CNC machine tools, can be used with a variety of spindle tool holders

3. Diversified tool sizes, the tool head can also be customized according to actual needs




Workshop:


CE:


Shipping:


Payment:

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
