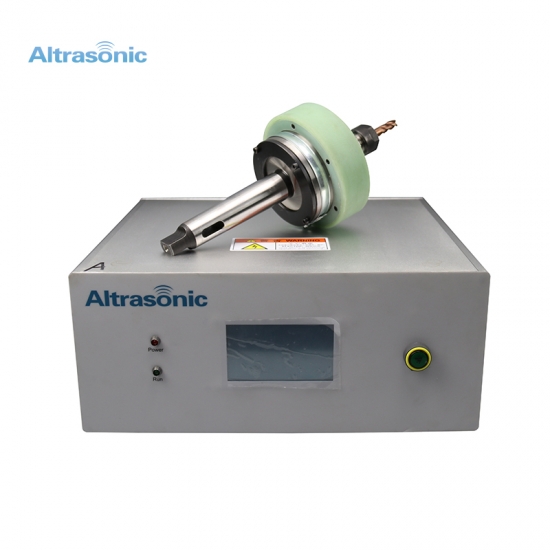

High speed ultrasonic rotary milling machine.
Item No.:
HS-M20Payment:
T/T, PayPal, Western UnionProduct origin:
ChinaColor:
Silver and GreenShipping port:
Shanghai or NingboLead Time:
45
Machine tool accessories milling and drilling tools high-speed rotary ultrasonic machining
Specification:
Item No
HS-M20
Frequency
20 kHz
Power
500 watt
Rotation speed
20000 rpm
Amplitude
10um or more
Diameter of horn
milling φ1~13 mm, drilling φ2~6 mm
Spindle taper
BT30 / BT40 / BT50 / HSK63 / ISO / CAT
Description:

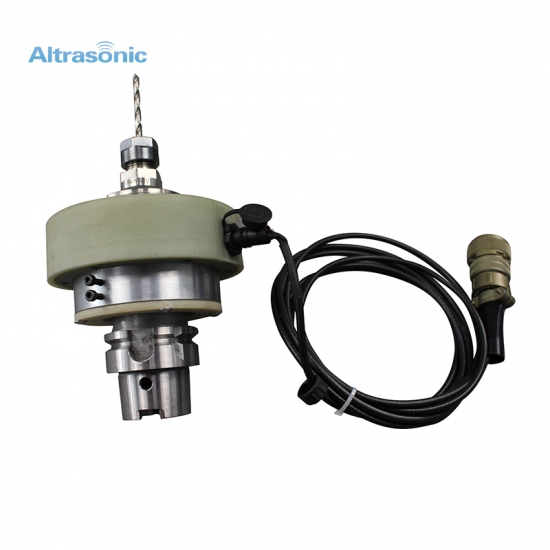

We provide high tech ultrasonic rotary milling system, which could be used on CNC machinery.

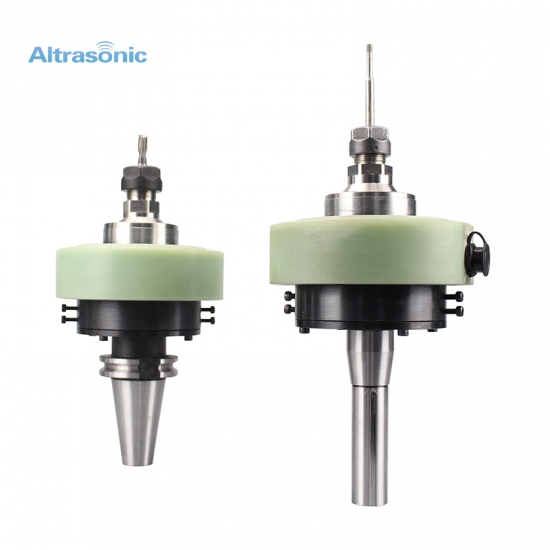

We have spindle taper selection BT30/40/50, HSK63, CT40 and so on...
Here you can contact us for a free consultation, our technical department will evaluate and feedback to you immediately.
The function of various parts are described below:
1. Transducer: The transducer mainly consists of a cylinder which is made up of piezoelectric ceramic. It converts electrical energy into mechanical vibration. Transducer then vibrates sonotrode at low amplitude and high frequency.

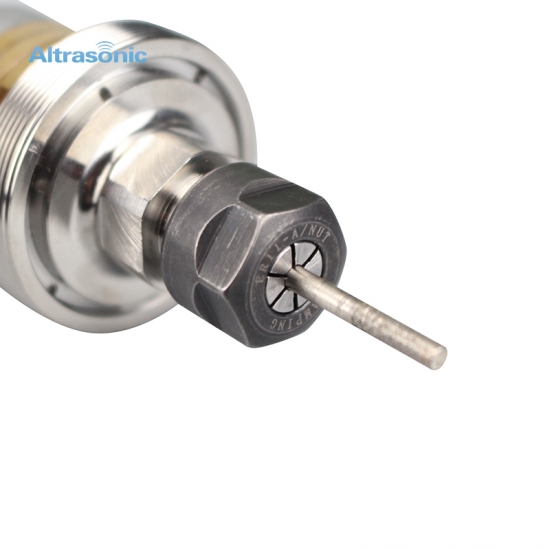

2. Sonotrode: It is made of low carbon steel. One end of it is connected with the transducer and other end contains tool. The sonotrode vibrates at low amplitude and high frequency and removes material from the w/p by abrasion where it contacts it.
3. Generator: The generator consists of an electronic oscillator which produces an alternating current at high frequency. The frequency produced is usually in 20kHz in ultrasonic range.
Workshop:
CE:
Shipping:
Payment:
Previous :
Fine processing machine tool accessories milling and drilling tools high-speed rotary ultrasonic machiningNext :
BT30/40/50 HSK63A CT40 ultrasonic spindle drilling and milling system metal finishingIf you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
