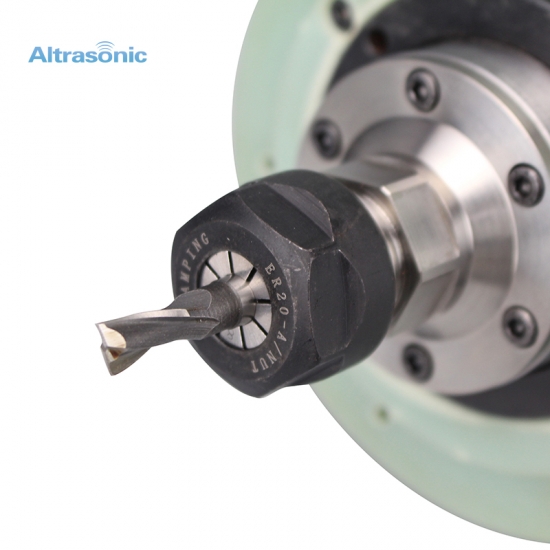

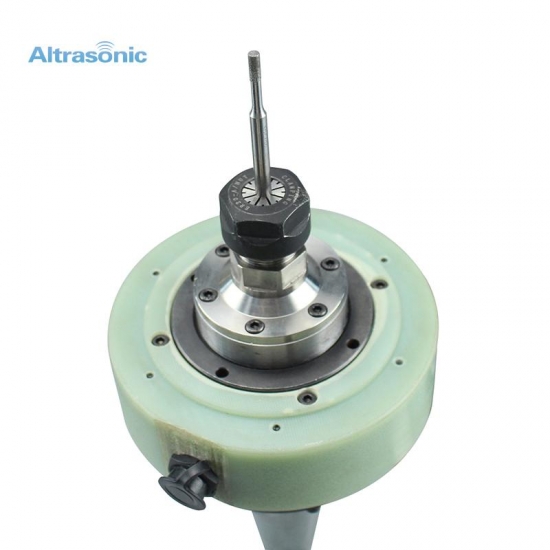

Ultrasonic vibration cutting is a kind of pulse cutting in micro view.
Item No.:
HS-M20Payment:
T/T, PayPal, Western UnionProduct origin:
ChinaColor:
Silver and GreenShipping port:
Shanghai or NingboLead Time:
45
Specification:
Item No
HS-M20
Frequency
20 kHz
Power
500 watt
Spindle taper
BT30 / BT40 / BT50 / HSK63
Rotation speed
Maximum 20,000 r/min
Power adjusting
Step or Continuous
Matching tools
Carbide end milling cutter φ2-φ13, disc milling cutter φ50
Weight
30 KG
Generator
Digital
Brief introduction of the performance of the ultrasonic milling device:
1 The cutting force is small, about 1/3-1/10 of the ordinary cutting force.
2 The machining accuracy is high, which mainly depends on the accuracy of the machine tool used, and the shape and position tolerance of the processed workpiece can almost be close to the relevant accuracy of the machine tool.
3 The cutting temperature is low, and the workpiece is kept at room temperature.
4 There is no built-up edge, small deformation of the workpiece, and no burrs.
Advantages:
1. Suitable for processing hard metals, stones, diamonds, with high precision
2. Can be installed on CNC machine tools, can be used with a variety of spindle tool holders
3. Diversified tool sizes, the tool head can also be customized according to actual needs
Workshop:
CE:
Shipping:
Payment:
