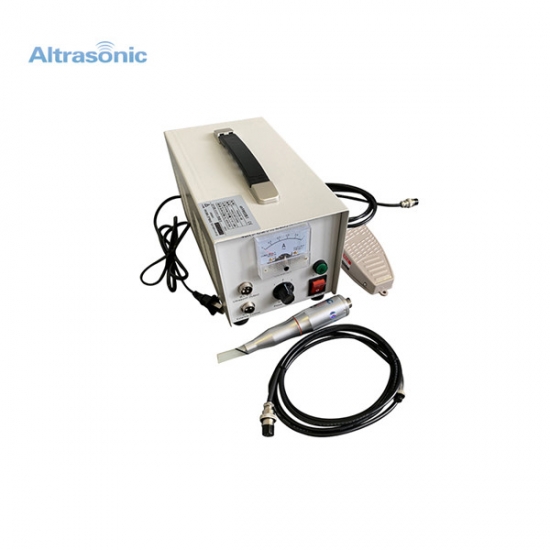

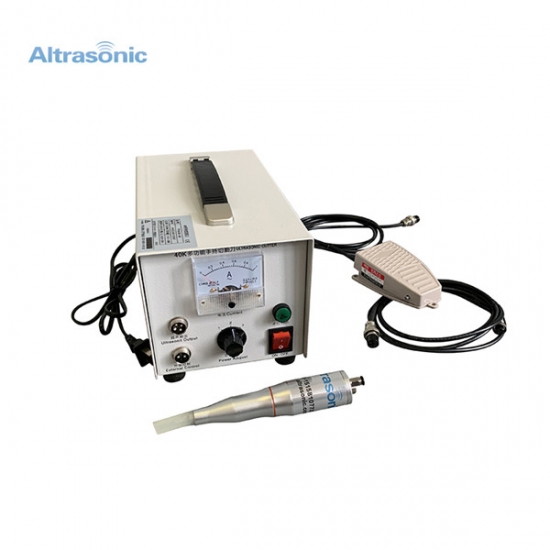

40kHz Ultrasonic Portable Cutter with Replaceable Blades For Non-woven Fabric Cutting

40kHz Ultrasonic Portable Cutter with Replaceable Blades For Non-woven Fabric Cutting

Ultrasonic cutting machine is the use of wave energy for cutting equipment, the main feature is cut fast, precise and the cutting edge is smooth.

  • Item No.:

    HS-C40
  • Payment:

    T/T, West union, Paypal
  • Product origin:

    China
  • Color:

    Black and white
  • Shipping port:

    Hangzhou or Shanghai
  • Product Details


40kHz Ultrasonic Portable Cutter with Replaceable Blades For Non-woven Fabric Cutting




Specification:



Model HS-C40
Frequency 40KHZ
Output Power 100W

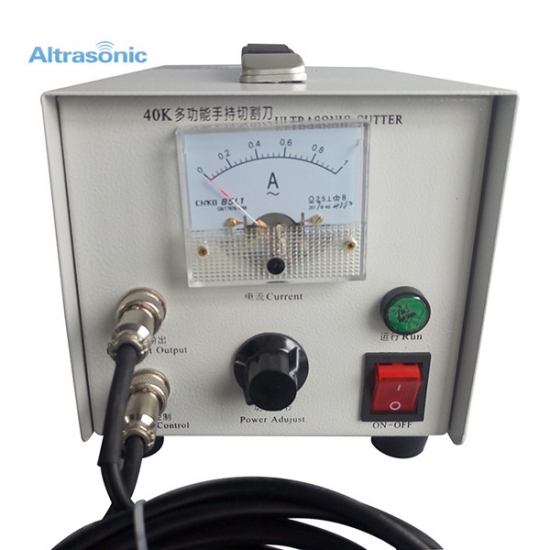

Generator Analog generator, 155 x 265 x 170mm

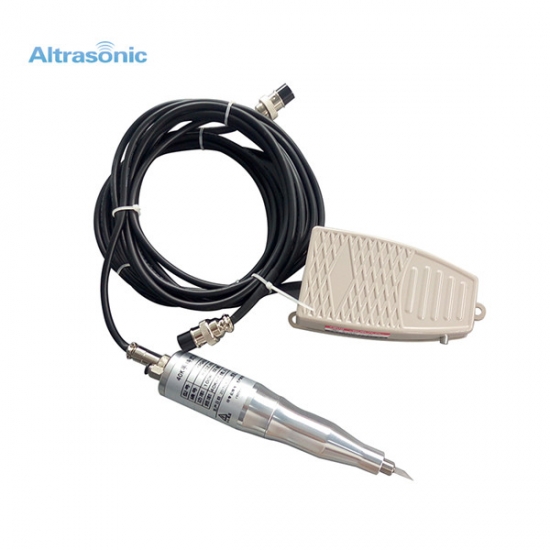

Handle Φ32×170
Size of cutter Blade replaceable
Length of cable 3M
Outer skin Aluminum
Weight 8KG
Voltage 220V / 110V
Accessory Foot switch1pc;Cut blade 25pcs;1.5mm special hex wrench 1pc;
Screw M3×4L 2pcs
Material of cutter titanium alloy, stainless steel



Description:



Ultrasonic cutting machine is a kind of special ultrasonic equipment for cutting. It uses ultrasonic energy to heat and melt the material to be cut, so as to achieve the purpose of cutting the material. Ultrasonic cutting replaces the traditional blade cutting, and has the advantages of smooth cutting, reliable cutting, accurate trimming, no deformation, no wrinkles, etc.



Application:


Ultrasonic cutting of synthetic resin, Plastic. Epoxy putty, Paper, Cardboard, Chemical fiber/ cloth, Polyester putty, 3D printed material, and Silicone up to 3mm in thickness.



Why choose Altrasonic:


1. Cost-benefit, we will work out the best program with reasonable price for you after testing. we also have one year warranty for none human damage, in this period factory will responsible for all damages. After warranty, we will offer repair and new spare parts for customer with economical price.

2.Purchase process is very convenient and efficient, we will deal with customers case within 24 hour, and it often take 3-4 days to delivery goods from here to your company via international express. Our general lead time is around 7-15days.

3.Strictly quality control, our product will do 3 times aging test and 48 hours working time for stability test before sending out.
