Altrasonic solutions are designed for high-speed ultrasonic cutting, trimming, deburring and chamfering applications. This technology replaces waterjet, laser cutting, hard tooling and manual trimming or routing methods. Whatever your current approach, Altrasonic ultrasonic technology can reduce operating costs and improve trim quality.
Item No.:
HS-C30Payment:
TT, West union, PaypalProduct origin:
ChinaColor:
Black and BlueShipping port:
Hangzhou or Shanghai
30kHz Ultrasonic Cutting System Of Robotic Arm Easy To Operate
Specification
Model |
|
Frequency |
30kHz |
Output Power |
500W |
Generator |
Digital generator, 452 x 180 x 100mm |

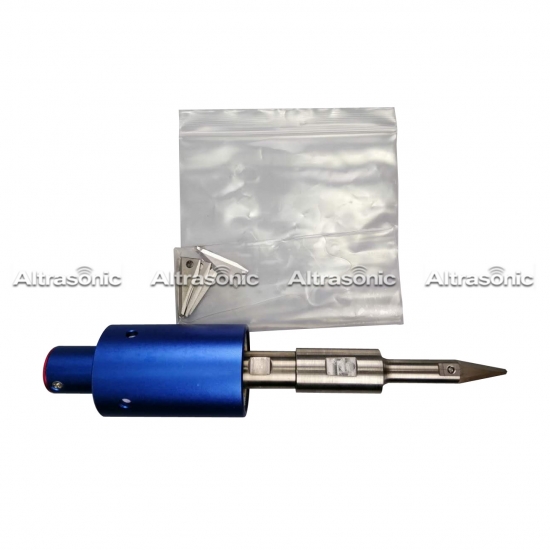

Handle |
Φ44×220 |
Size of cutter |
Blade replaceable |
Length of cable |
3M |
Outer skin |
Aluminum |
Weight |
8KG |
Voltage |
220V / 110V |

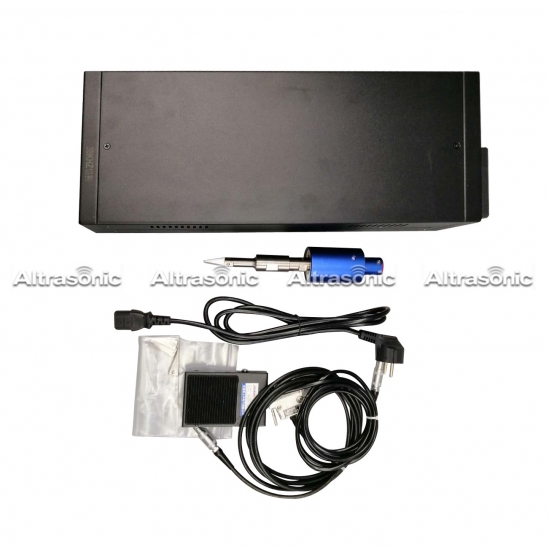

Accessory |
Foot switch 1pc；Cut blade 2pcs； |
Material of blade |
titanium alloy, stainless steel |
Description
The principle of the ultrasonic cutting machine is completely different. It uses the energy of ultrasonic waves to heat and melt the material to be cut locally to achieve the purpose of cutting the material. Therefore, ultrasonic cutting does not require sharp edges or great pressure, and will not cause chipping or damage of the material being cut. At the same time, because the cutting blade is doing ultrasonic vibration, the friction resistance is particularly small, and the material to be cut is not easy to stick to the blade.
Advantages
1. Simple operation.
2. Easy to use in automated production.
3. Good cutting effect, good smooth cutting edge and no rough selvedge (loose edge).
4. Cutting speed, reduce the staff's working intensity, cost savings.
Application
The ultrasonic cutting machine can used for cutting different products like fiber ,paper , food ,fabric ,plastic etc . This machine is with 30KHz ultrasonic hand cutter knife .It can used for hand cutting , CNC cutting or Robot hold cutting .
1) Natural Fiber
2) Synthetic Fiber
3) Thin plastic products,such as plastic film,mobile phone shell
4) Paper
5) Film
6) Rubber,Silica Gel
7) Repair of copper foil on PCB
8) ABS,PP,PE etc organic plastics
9) Sheet with thickness no more than 2mm
10) Polyester Fabric
