UltrasonicThe Ultrasonic Cutting Systems can easily cut to Rubber, Tyre, Resin, Cloths Non-Woven, Film, Ribbon, CD, Foam, Cardboards, Bonded Textile, Craft items, Glass and composite material in which various products.
Item No.:
HS-C30Payment:
T/T, West union, PaypalProduct origin:
ChinaColor:
Black and BlueShipping port:
Hangzhou or Shanghai

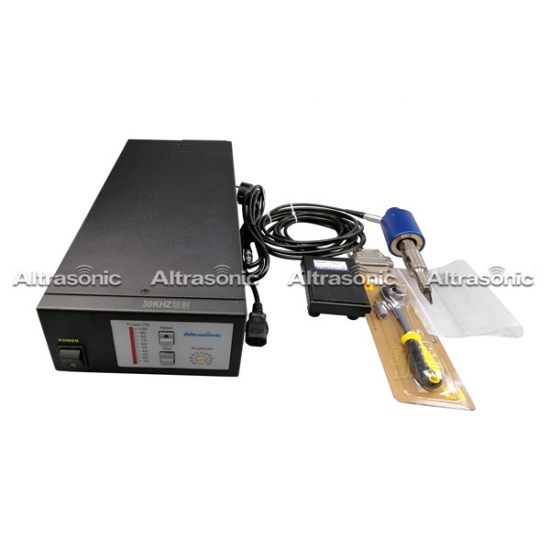

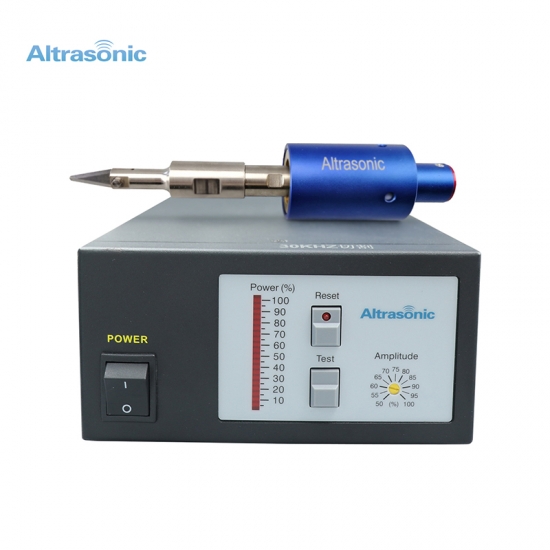

30kHz Ultrasonic Cutting Machine For Rubber And Fabric
Specifications：
Model: HS-C30
Frequency: 30KHZ
Output Power: 200W
Generator Digital generator:, 452 x 180 x 100mm
Handle: Φ44×220
Size of cutter: Blade replaceable
Length of cable: 3M
Outer skin: Aluminum
Weight: 8KG
Voltage: 220V / 110V

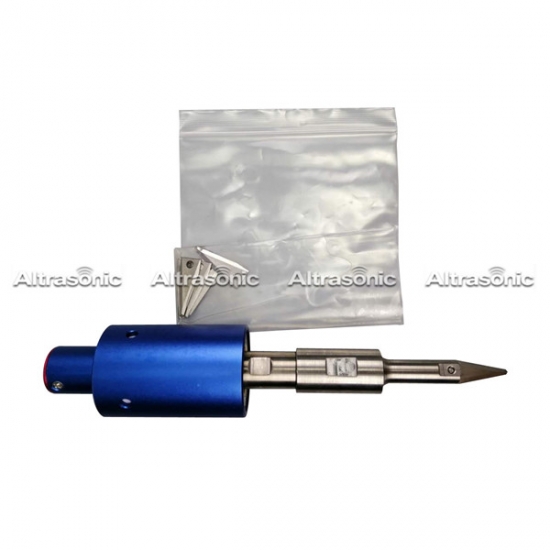

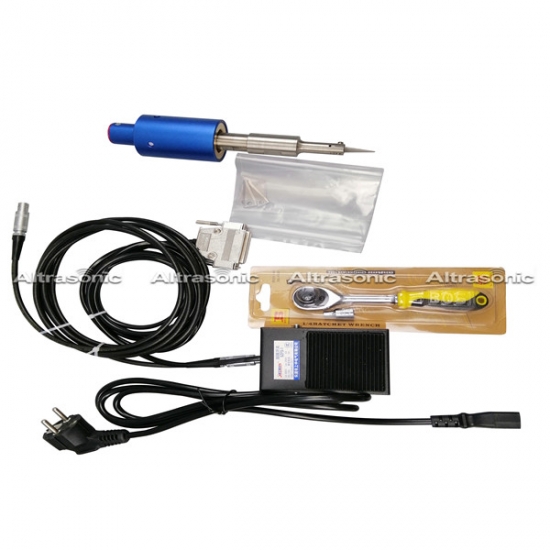

Accessory Foot switch 1pc；Cut blade 2pcs；1.5mm special hex wrench 1pc；Screw M3×4L 2pcs
Material of blade: Titanium alloy, stainless steel
Description:

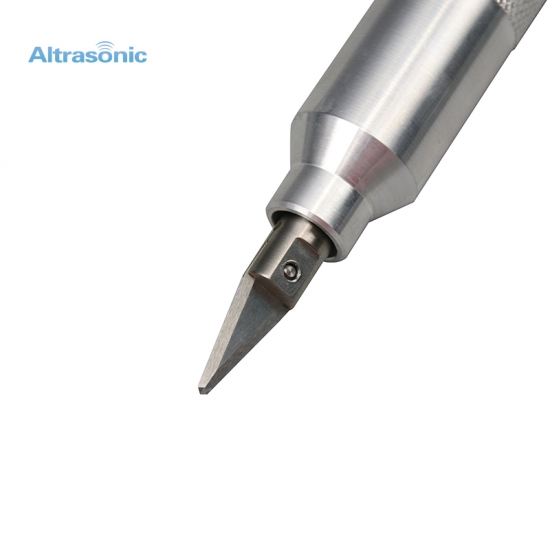

The replaceable ultrasonic hand-held cutter is ideal for long-term hand-held cutting. The transducer features compact size, but powerful performance thanks to the high frequency drive, thereby ensuring sharp cutting. The user-friendly design of shape enables to fully utilize the robot’s operation area. A wide range of materials, including newly-developed composite materials, rubber, and leather, can be cut freely with low processing pressure.
Advantages:
1. Cut the fabrics quickly and precisely.
2. Smooth and traceless cutting edge.
3. Powerful and effective.
4. Ultrasonic Vibration reduces friction resistance between blade and material which enable blade to cut smoothly without any deformation.
5. Ultrasonic Vibration reduces fouling of material on the blade which reduces downtime to clean the production system.
Application:
1. Thermo plastics:plate, sheet, film, and laminated material.
2. Prepreg:carbon prepreg.
3. Composite materials: polyethylene fiber, glass fiber.
4. Rubber:vulcanized latex, non-vulcanized latex, sheeting material, tube.
FAQ:
Q: Do you have any ultrasonic equipment in stock?
A: Yes, we have stock for each model. Regular products can be delivered within 5 days.
Package：
