Manual and Handheld Ultrasonic Knife for Cutting PET and PA

Manual and Handheld Ultrasonic Knife for Cutting PET and PA

Altrasonic solutions are designed for high-speed ultrasonic cutting, trimming, deburring and chamfering applications. This technology replaces waterjet, laser cutting, hard tooling and manual trimming or routing methods. Whatever your current approach, Altrasonic ultrasonic technology can reduce operating costs and improve trim quality.

  • Item No.:

    HS-C30
  • Payment:

    T/T, Paypal, Western Union
  • Product origin:

    China
  • Color:

    Black and Blue
  • Shipping port:

    Ningbo or Shanghai
  • Product Details

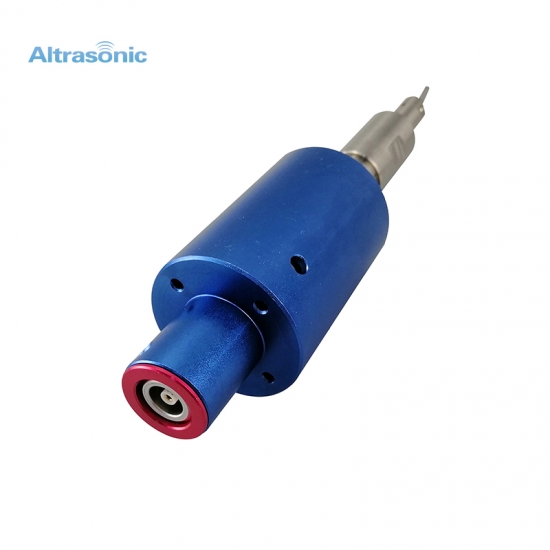

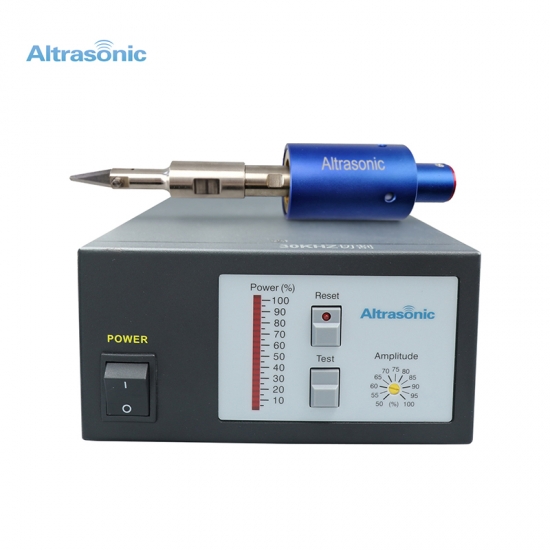

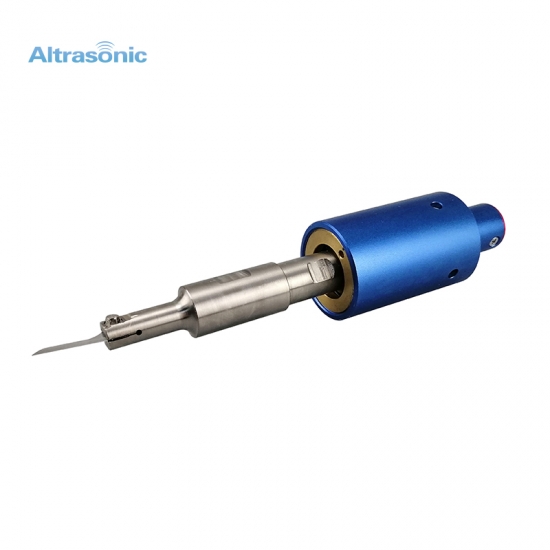

Manual and Handheld Ultrasonic Knife for Cutting PET and PA






Specification:



Item No.

HS-C30

Frequency

30kHz

Output Power

500W

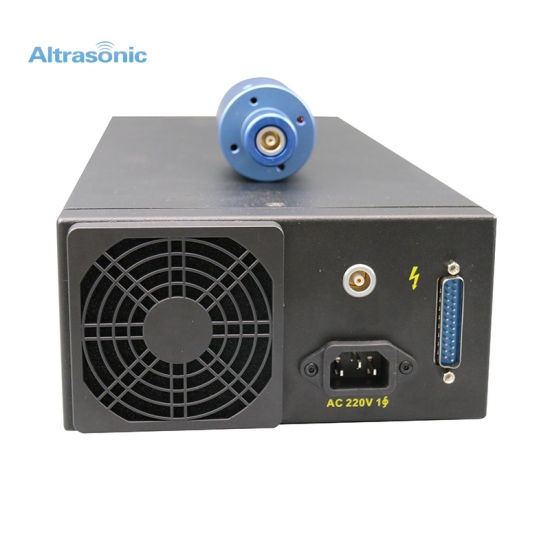

Generator

Digital generator, 452 x 180 x 100mm

Handle

Φ44×220

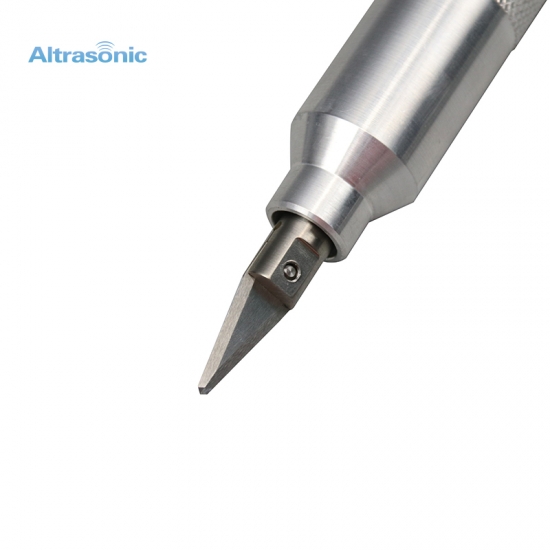

Size of cutter

Blade replaceable

Length of cable

3M

Outer skin

Aluminum

Weight

8KG

Voltage

220V / 110V

Accessory

Foot switch 1pc;Cut blade 2pcs;
1.5mm special hex wrench 1pc;Screw M3×4L 2pcs

Material of blade

Stainless Steel





Description:



Automotive accessories, rubber parts or foils, our ultrasonic solutions simplify the cutting of shapes and bonding of plastics immensely. We can provide the right solution for your individual task as well. Compared to other separation processes ultrasonics stand out with high process speeds and immaculate cutting edges which can be sealed in the same process step.




Advantage:



Precise separation with almost no loss of material

No fraying on edges

High degree of process safety

Reproducible results

Cutting cycles or continuous cutting possible

Little tool wear

Simultaneous cutting and sealing possible
