Ultrasonic handheld cutting machine suitable for materials with thickness 7mm.
Item No.:
HS-C30Payment:
T/T, Paypal, Western UnionProduct origin:
ChinaColor:
Black and BlueProduct weight:
8gShipping port:
Shanghai or Ningbo

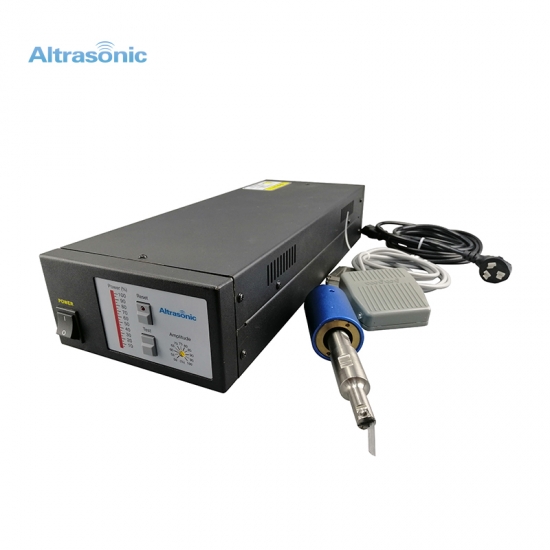

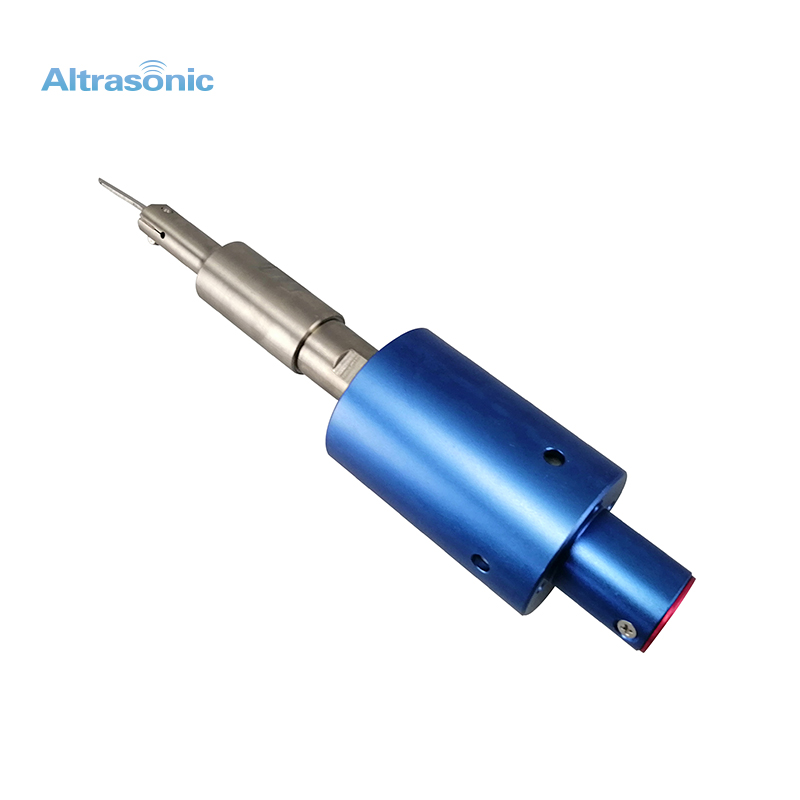

800watt handheld cutter plastic cut blade ultrasonic fabric cutting machine
Specification:
Item No | HS-C30 |
Frequency | 30 kHz |
Power | 800 watt |
Generator | digital |

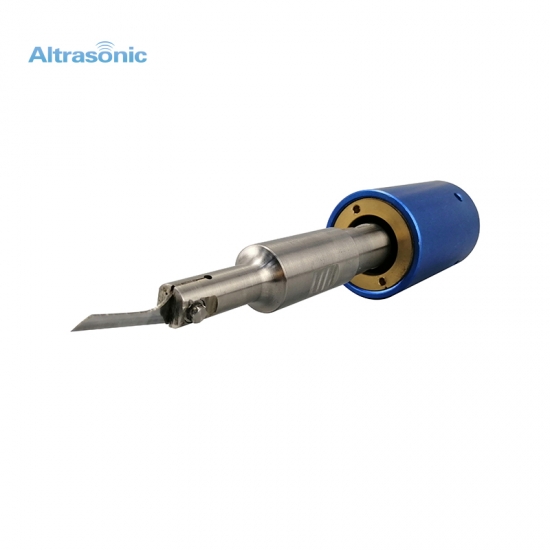

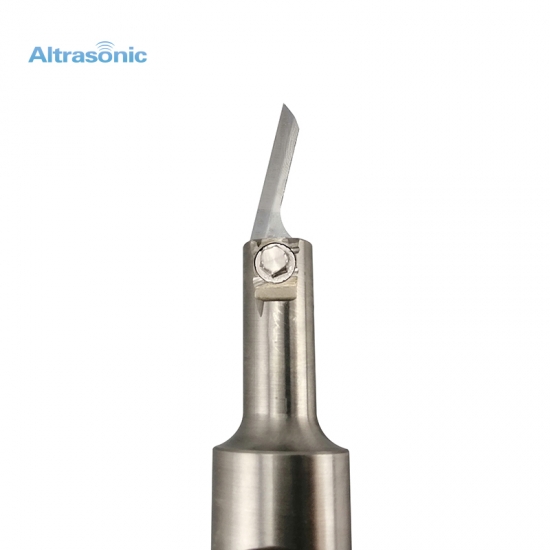

Cutting blade | Single-edged or Double-edged |
Material of blade | Titanium alloy |
Cutting thickness | Maximum 7 mm |
Net weight | 10 KG |
Warranty | 1 Year |
Description:
We provide high tech ultrasonic cutting machine, for thermoplastics with range thickness 0-10 mm.
There are available cutting tools in various frequencies and powers, or made to your own design.
Here you can send inquiry for a free consultation, our technical deparment will evaluate and recommend suitable machine to you.
Advantage:
1.Automatic resonance point, automatic frequency sweep tracking in the frequency range of 29.6-30.1kHz;
2.Automatic amplitude compensation, which automatically works at the optimal frequency point and output point according to the fluidity of the sample;
3.Independent on/off pulse, with two modes of continuous use and intermittent use.
Workshop:
CE:
Shipping:
Payment:
Previous :
30khz digital generator ultrasonic handheld cutter for plastic PC, PVC, PPNext :
Tailored for thick materials cutting ultrasonic rubber cutter 40khz handheld ultrasonic cut machineIf you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
