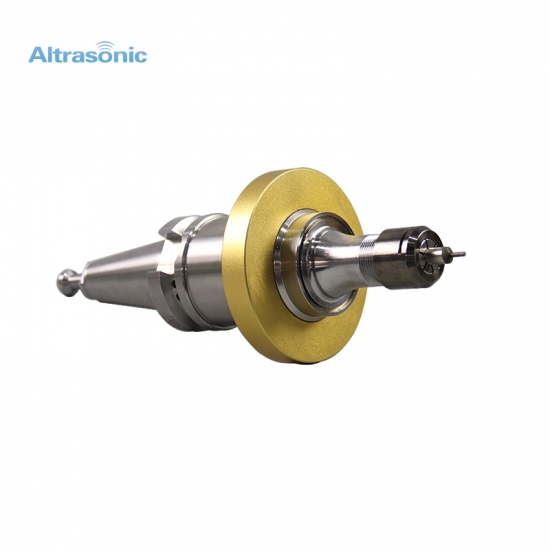

Ultrasonic Rotary Milling Equipment for Precision Machining Auxiliary Tools

Ultrasonic Rotary Milling Equipment for Precision Machining Auxiliary Tools

This ultrasonic milling uses a non-contact rotating device.

  • Item No.:

    HS-M20-W
  • Payment:

    T/T, PayPal, Western Union
  • Product origin:

    China
  • Color:

    Silver and Green
  • Shipping port:

    Shanghai or Ningbo
  • Lead Time:

    45
  • Product Details


Ultrasonic Rotary Milling Equipment for Precision Machining Auxiliary Tools






Specification:


 Item No  HS-M20
 Frequency  20 kHz
 Power  500 watt
 Spindle taper  BT30
 Rotation speed  Maximum 24,000 r/min
 Amplitude  1~10 um
 Tool interface model  ER-16
 Weight  30 KG

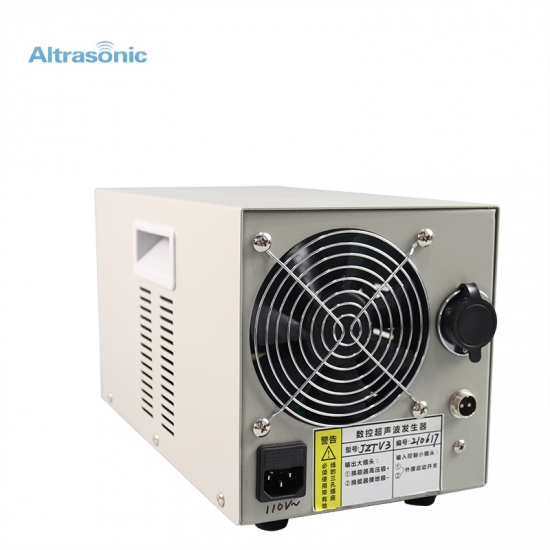

 Generator  Digital




Description:


We provide high tech ultrasonic rotary milling system, which could be used on CNC machinery.

We have spindle taper selection BT30/40/50, HSK63A, CT40 and so on...

If you need a free consultation, pls kindly click "contact now" or send inquiry, and inform us the material for processing. Our technical department will evaluate and feedback to you.



Advantages:


1. Suitable for processing hard metals, stones, diamonds, with high precision

2. Can be installed on CNC machine tools, can be used with a variety of spindle tool holders

3. Diversified tool sizes, the tool head can also be customized according to actual needs




Workshop:


CE:


Shipping:


Payment:
