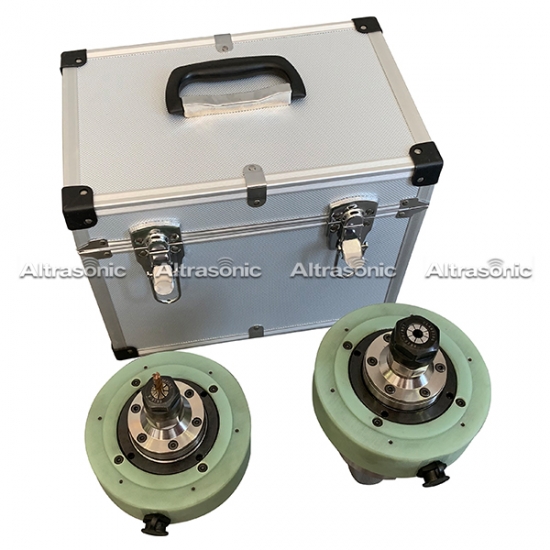

Ultrasonic Grinding Equipment Mounted on CNC machine





Technical Parameters:


Item No.: HS-M20

Frequency: 20kHz

Power: 500Watt

Speed: 20,000RPM

Amplitude: 10um or more

Diameter of Horn:

                          Milling: Φ1-Ф13mm

                          Drilling:Ф2-Ф6mm

Spindle: BT40 / BT50 / R8 / HSK63 / ISO / CAT

(Special spindles are made per request.)


Description:


The rotary ultrasonic machining technology from Altrasonic enables the economical machining of complex workpiece geometries in demanding high-tech materials. The kinematic overlapping of the tool rotation with an additional oscillation effects a reduction of the process forces by up to 40 % in comparison to conventional machining.



Advantage:



1.No dust

2.Reduced cutting force

3.Unrivalled quality due to the absence of deformed cells and lint

4.Significantly reduced cycle time (up to ×3 faster)

5.Increased ultrasonic tool life span

6.Possibility to realize complex geometries





Application:



Medical industry: Artificial crown machining

Automotive industry: Valve deburring

Die & mold industry: Surface finishing

Aerospace industry: Surface finishing

Precise ceramic industry: Roughing and finishing

Glass industry: Drilling, polishing, chamfering

Workshop:




CE:





Packing&Shipping:


Shipping Port:Shanghai

Shipping Term:By express,by air,by ocean and so on.

Leading Time:Quick production leading time and fast delivery.Usually 1-3days if we have in stock.







Payment:




FAQ:


Q:Can your ultrasonic machine assemble to my CNC machine?

A:Yes, you need to inform us the type of tool holder like BT/CTA/ISO/HSKA , or you can provide drawings that we will customized the same on our ultrasonic part to match your CNC machine.



Q:What is the RMP(Round Per Minute) pf your equipment?

A:Normally the max speed of designed equipment is below 3000RMP, if you need faster for better performance, we will do the some adjustment to match the max speed 30000 RPM.



Q:What is the diameter of your drilling tool?

A:The diameter range of our drilling tool is 1mm to 13mm(according to customs application)
