Our extensive knowledge in the machining of glass and ceramics, combined with unique ultrasonic machining capabilities, enable Altrasonic to provide cu stom, high-quality, cost-effective solutions that meet the strict requirements of the semiconductor industry.
Item No.:
HS-M20Payment:
T/T, PayPal, Western UnionProduct origin:
ChinaColor:
GreenShipping port:
Shanghai or NingboLead Time:
45

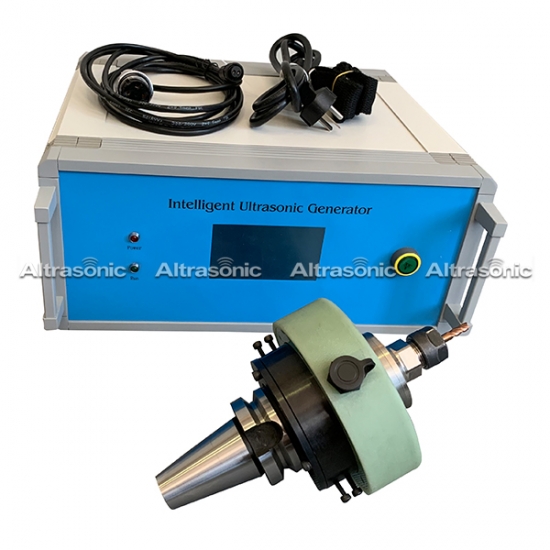

Rotatry Ultrasonic Assisted Milling RUSM for Semiconductor Ceramics
Technical Parameters:
Item No.: HS-M20
Frequency: 20kHz
Power: 500Watt
Speed: 20,000RPM
Amplitude: 10um or more
Diameter of Horn:
Milling: Φ1-Ф13mm
Drilling:Ф2-Ф6mm

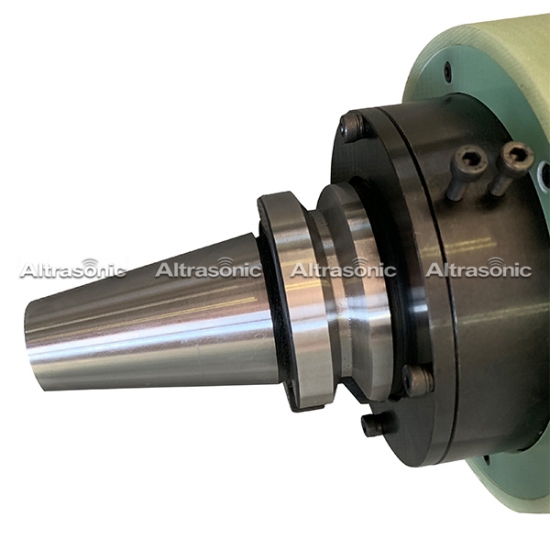

Spindle: BT40 / BT50 / R8 / HSK63 / ISO / CAT
(Special spindles are made per request.)
Description:
Our extensive knowledge in the machining of glass and ceramics, combined with unique ultrasonic machining capabilities, enable Altrasonic to provide cu stom, high-quality, cost-effective solutions that meet the strict requirements of the semiconductor industry.
Advantages to working with Altrasonic:
1. Unique ultrasonic machining allows for the machining of multiple features simultaneously, leading to reduced part costs. Learn more about ultrasonic machining.
2. Parts machined with ultrasonic machining exhibit little or no subsurface damage, resulting in outstanding particle performance and higher process yields.
3. Reliable, consistent high quality means reduced downtime and higher process yields in your process.
4. Our ability to handle prototype through production volumes offers you maximum flexibility.
Application:
1.Tight-tolerance round thru-holes for semiconductor processing equipment components
2.Micromachined and micro-structured glass wafers for microelectromechanical systems (MEMS) applications
3.High-aspect ratio thru-vias; 60-to-1 aspect ratios are possible in glass and advanced material
4.Features machined into Ceramic Matrix Composites for Aerospace manufacturing
Workshop:
CE:

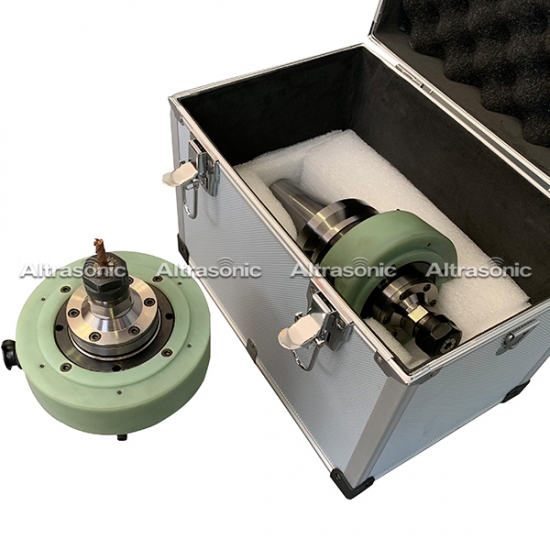

Packing&Shipping:
Shipping Port:Shanghai
Shipping Term:By express,by air,by ocean and so on.
Leading Time:Quick production leading time and fast delivery.Usually 1-3days if we have in stock.
Payment:
FAQ:
Q:Can your ultrasonic machine assemble to my CNC machine?
A:Yes, you need to inform us the type of tool holder like BT/CTA/ISO/HSKA , or you can provide drawings that we will customized the same on our ultrasonic part to match your CNC machine.
Q:What is the RMP(Round Per Minute) pf your equipment?
A:Normally the max speed of designed equipment is below 3000RMP, if you need faster for better performance, we will do the some adjustment to match the max speed 30000 RPM.
Q:What is the diameter of your drilling tool?
A:The diameter range of our drilling tool is 1mm to 13mm(according to custom’s application)
