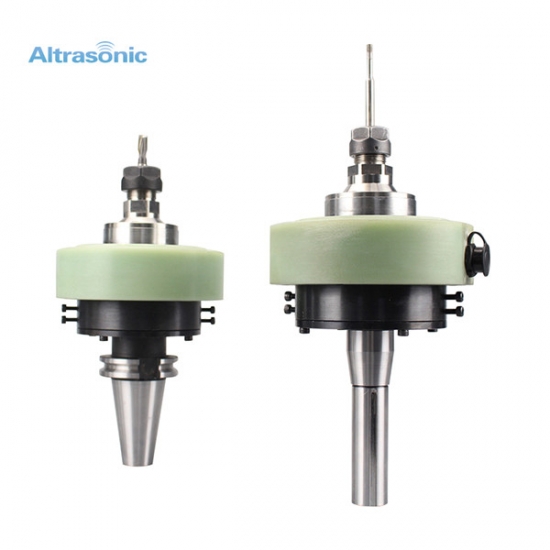

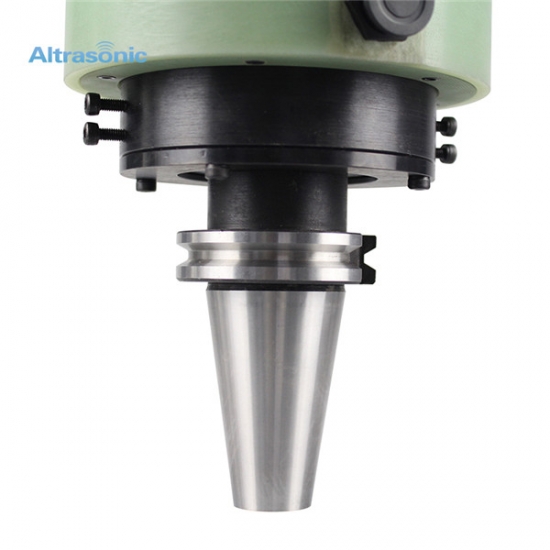

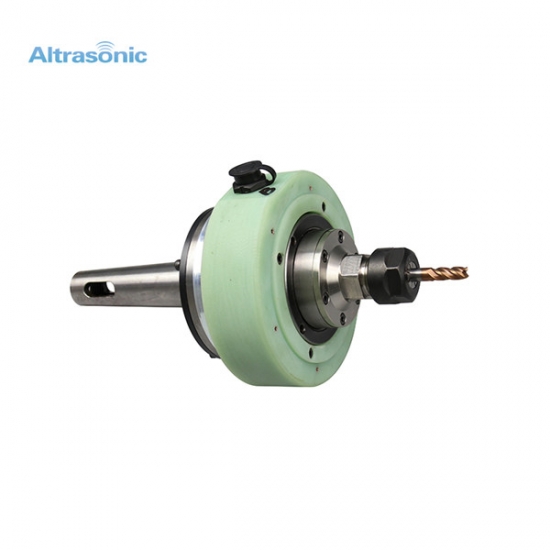

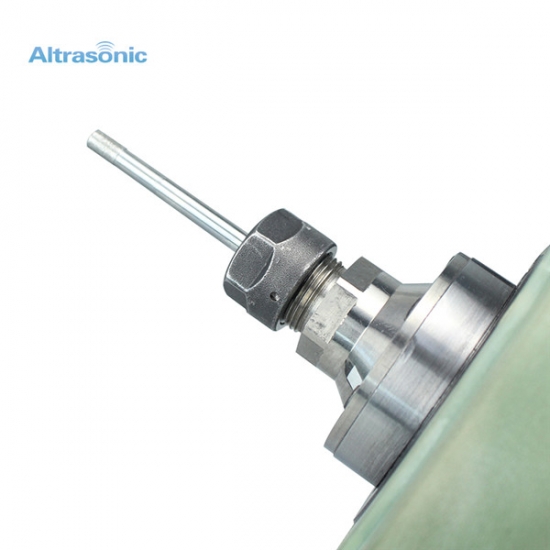

Non-contact Ultrasonic Drilling Equipment Machining Tungsten Carbide

Non-contact Ultrasonic Drilling Equipment Machining Tungsten Carbide

During ultrasonic drilling, the material is removed by micro-grinding or abrasive particle erosion.

The tool oscillates at a frequency of approximately 20 kHz by a piezoelectric sensor and an electric oscillator. The tool forces the abrasive grit to normally impact the work surface in the gap between the tool and the workpiece to machine the work surface.

  • Item No.:

    HS-M20
  • Payment:

    T/T, Paypal, Western Union
  • Product origin:

    China
  • Color:

    Green Silver
  • Shipping port:

    Shanghai or Ningbo
  • Product Details


Non-contact Ultrasonic Drilling Equipment Machining Tungsten Carbide



Specification:


Frequency 20kHz
Output Power 500W
Voltage 220 V / 110V
Switch Handle or foot switch
Power Adjusting Step or continuous
Working Time Control 24 Hours
Weight 30 KG
Application Ultrasonic Milling

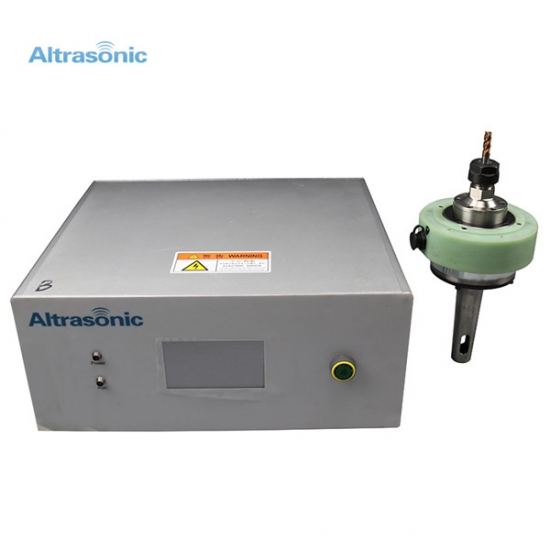

Generator Digital Generator
Length of cable 5M



Principle:


Ultrasonic drilling is an unconventional loose abrasive processing process. Ultrasound is a sound wave with a frequency higher than 20,000 Hz.

Ultrasonic can be generated using mechanical, electromagnetic and thermal energy sources. They can be produced from gases (including air), liquids and solids.

During ultrasonic drilling, the material is removed by micro-grinding or abrasive particle erosion.

The tool oscillates at a frequency of approximately 20 kHz by a piezoelectric sensor and an electric oscillator. The tool forces the abrasive grit to normally impact the work surface in the gap between the tool and the workpiece to machine the work surface.

The smaller the grit size, the smaller the momentum received from the tool. As the tool continues to move downward, the force acting on the larger coarse particles increases rapidly, so some coarse particles may break. Eventually, at the end of its stroke, the sand with a size greater than the minimum gap will penetrate the tool and the work surface to varying degrees.



Application:


1. A variety of materials, especially fragile rigid materials.

2. Machining planes, grooves, various shapes of surfaces (such as splines, gears and threads) and special surfaces of the mold.

3. Application areas: mechanical processing industry, machine tool equipment manufacturing.

Application: Manufacturing enterprises, universities, research institutions, machinery and equipment transformation industry.



Competitive advantages:


1.Can process almost any hard material

2.The heat generated is very small

3.Since the movement of the tool is a vibration up and down rather than a rotation in a conventional process, the hole cutting is not limited to a circle, but may be any shape. The custom "cookie cutter" tool cuts complex shapes.

4.Get good surface finish and higher structural integrity



Ultrasonic machining effect:


微信图片_20190828134636No Ultrasonic

With Ultrasonic
