Stable Amplitude Ultrasonic milling machine of BT30/40/50 HSK63A CT40

Stable Amplitude Ultrasonic milling machine of BT30/40/50 HSK63A CT40

The wonderful ultrasonic control technology can ensure the stability of long-term machining. Frequency scanning and power setting can be completed automatically by controller to improve productivity.


The tool oscillates at a frequency of approximately 20 kHz by a piezoelectric sensor and an electric oscillator. The tool forces the abrasive grit to normally impact the work surface in the gap between the tool and the workpiece to machine the work surface.

  • Item No.:

    HS-M20
  • Payment:

    T/T, PayPal, Western Union
  • Product origin:

    China
  • Color:

    Green Silver
  • Shipping port:

    Shanghai or Ningbo
  • Lead Time:

    40
  • Product Details

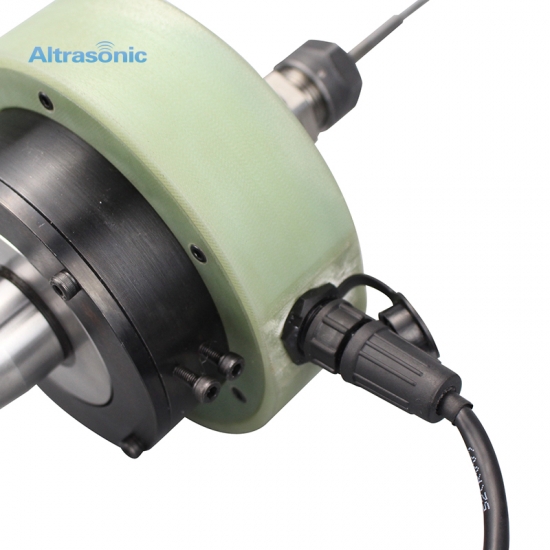

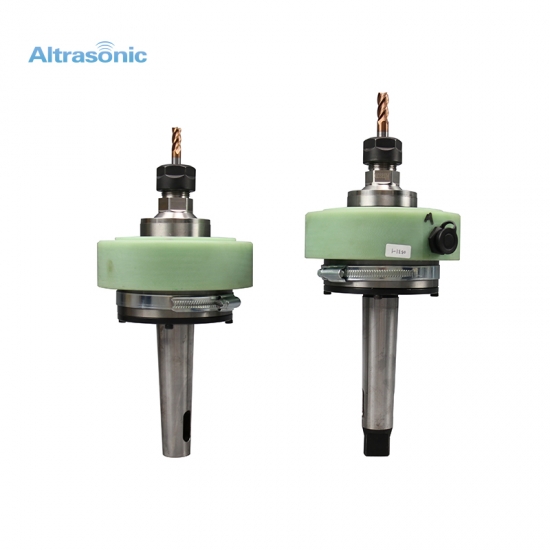

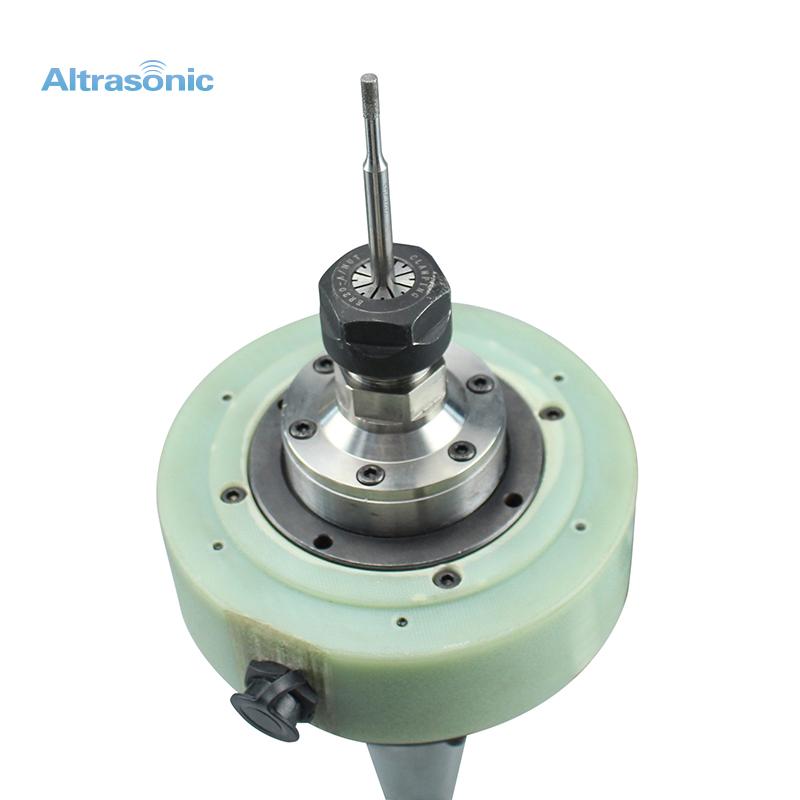

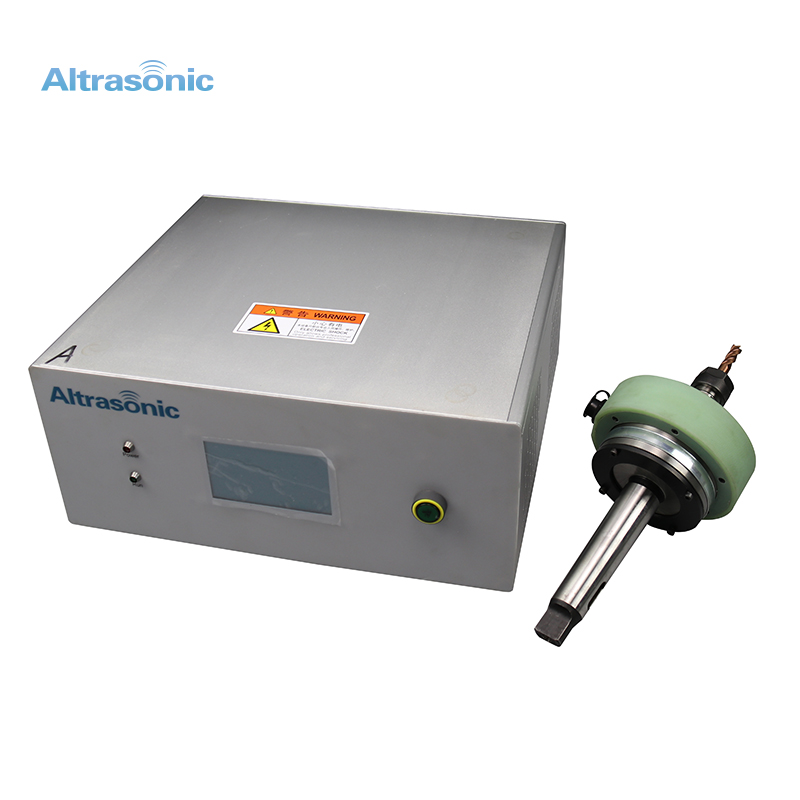

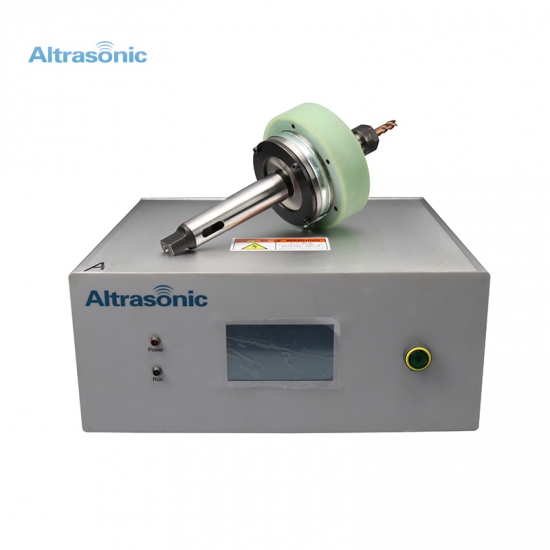

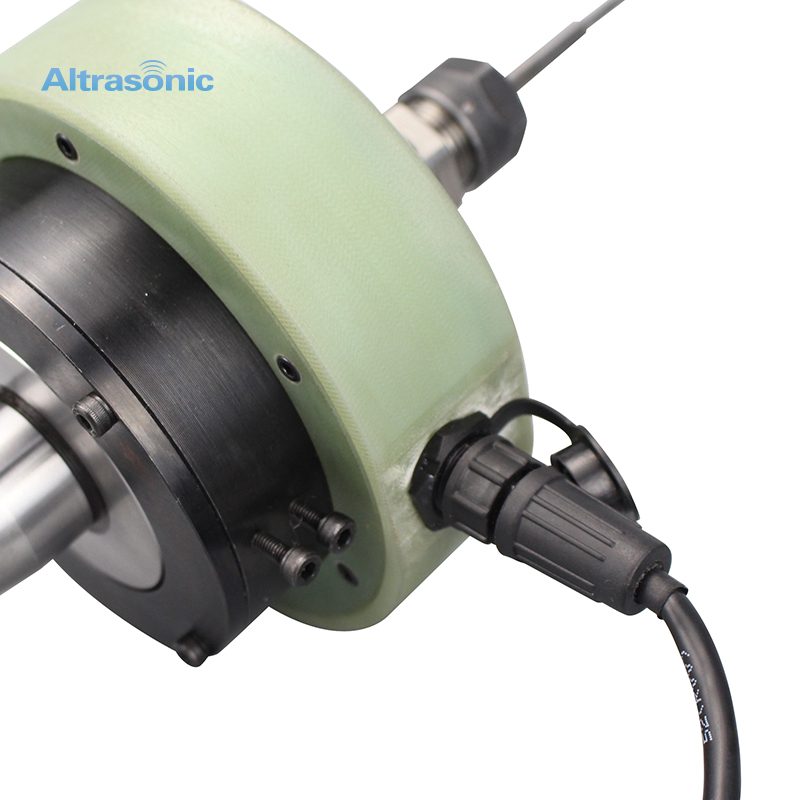

Stable Amplitude Ultrasonic milling machine of BT30/40/50 HSK63A CT40



Specification:


Item No.: HS-M20

Frequency: 20kHz

Power: 500Watt

Speed: 20,000RPM

Amplitude: 10um or more

Diameter of Horn:

                          Milling: Φ1-Ф13mm

                          Drilling:Ф2-Ф6mm

Spindle: BT40 / BT50 / R8 / HSK63 / ISO / CAT

(Special spindles are made per request.)



Principle:


Ultrasonic drilling is an unconventional loose abrasive processing process. Ultrasound is a sound wave with a frequency higher than 20,000 Hz.

Ultrasonic can be generated using mechanical, electromagnetic and thermal energy sources. They can be produced from gases (including air), liquids and solids.

During ultrasonic drilling, the material is removed by micro-grinding or abrasive particle erosion.

The tool oscillates at a frequency of approximately 20 kHz by a piezoelectric sensor and an electric oscillator. The tool forces the abrasive grit to normally impact the work surface in the gap between the tool and the workpiece to machine the work surface.

The smaller the grit size, the smaller the momentum received from the tool. As the tool continues to move downward, the force acting on the larger coarse particles increases rapidly, so some coarse particles may break. Eventually, at the end of its stroke, the sand with a size greater than the minimum gap will penetrate the tool and the work surface to varying degrees.



Application:


Medical industry: Artificial crown machining

Automotive industry: Valve deburring

Die & mold industry: Surface finishing

Aerospace industry: Surface finishing

Precise ceramic industry: Roughing and finishing

Glass industry: Drilling, polishing, chamfering



Advantages:


1.Technology integration via R8 actuator system;

2.ULTRASONIC superimpositioning of the tool rotation with amplitudes up to > 10 µm;

3.Automatic frequency detection -adation, amplitude regulation and automatic feed adjustment;

4.Up to 50% reduced process forces due to ULTRASONIC allow: higher feeds, better surface finishes up to Ra < 0.2 µm, longer tool life.



Ultrasonic machining effect:



微信图片_20190828134636No Ultrasonic

With Ultrasonic

1(1)2(1)3(1)

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

related products
Ultrasonic Rotary Spindle
None-contact Ultrasonic Drilling for Zirconic Glass Yttria Aluminum Nitride and Semiconductor Ceramics

The excellent ultrasonic control technology can ensure the stability of long-term machining. Frequency scanning and power setting can be completed automatically by controller to improve productivity. The tool oscillates at a frequency of approximately 20 kHz by a piezoelectric sensor and an electric oscillator. The tool forces the abrasive grit to normally impact the work surface in the gap between the tool and the workpiece to machine the work surface.

ultrasonic milling
Ultrasonic Assisted Milling With BT50 Tool Holder

It works in the same way as ultrasonic welding. This process uses ultrasonic waves to generate low-amplitude high-frequency forces that act as a driving force for the abrasive. This high frequency vibration transfer to the abrasive particles is contained in the abrasive slurry. This causes the abrasive particles to be indented to the brittle workpiece and removed from the contact surface.

Ultrasonic Drilling Process
Strong Anti-interference Rotary Ultrasonic Grinding for Titanium alloy and Tungsten Carbide

Ultrasonic Machining is a new mechanical machining process, which can enhance the milling and drilling performance by high frequency micro vibrations.

Ultrasonic Milling Machine
precision milling process ultrasonic auxiliary system ultrasonic tool holder BT30/BT40/BT50

Ultrasonic milling equipment can be used for finishing of metal hard materials.

Ultrasonic Milling Machine
BT30/40/50 HSK63A CT40 ultrasonic spindle drilling and milling system metal finishing

Ultrasonic milling equipment can be used for finishing of metal hard materials.

ultrasonic assisted milling machine
Non-contact Ultrasonic Drilling Process for Yttria and Sapphire

Ultrasonic milling has proven to be an effective technique for improving titanium, aluminum and stainless steel workability. Under the action of ultrasonic milling, it has more advantage than the traditional milling. In contrast to the effect of ultrasonic machining aluminum, steel, stainless steel, titanium four metallic materials.Improved surface quality of the most prominent is the titanium and aluminum, can improve the cutting ability of the most prominent is the stainless steel, the quality of the workpiece side is the most significant improvement in steel. In addition, for steel quenching after nearly HRC60, the traditional tool is difficult of steel cutting and processing cost is high, only when its hardness is higher than the work piece tool HRC25 above to processing. However, on the basis of traditional tools added to ultrasound, can greatly reduce the cutting of cutting resistance and improve cutting surface quality, but also increase the service life of the tool at least doubled.
