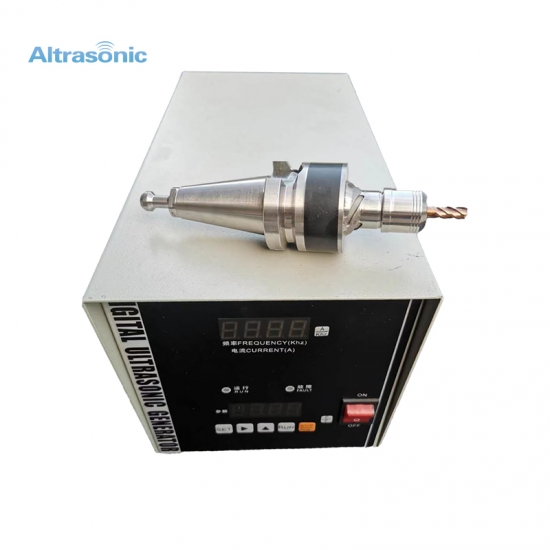

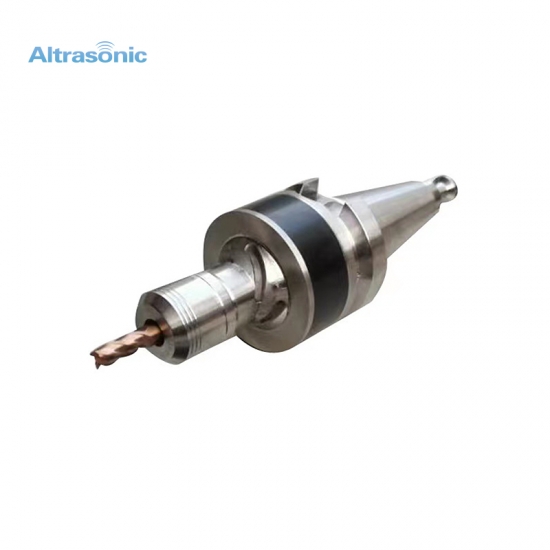

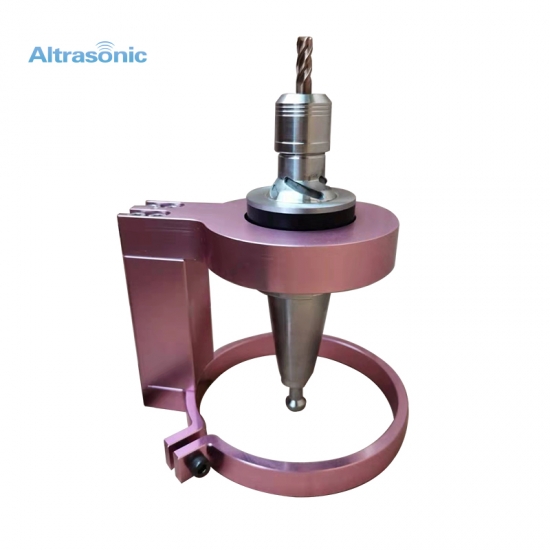

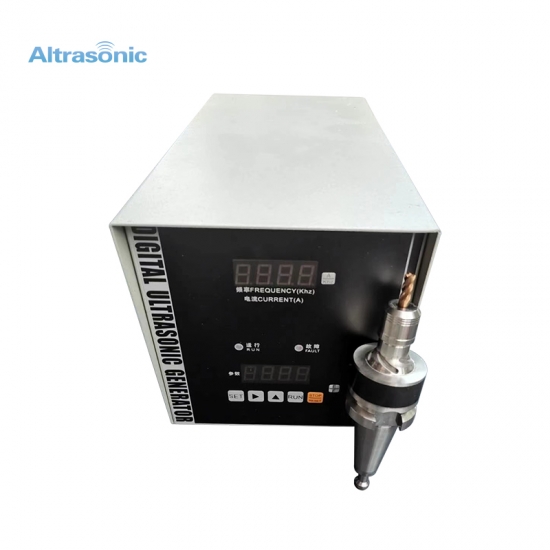

Non-contact Ultrasonic Auxiliary Processing Machine Maximum Speed 22000rpm For Hard Metal Milling/Drilling

Non-contact Ultrasonic Auxiliary Processing Machine Maximum Speed 22000rpm For Hard Metal Milling/Drilling

Rotary ultrasonic machining is a mechanical type of

non-traditional hybrid machining process that can be used

 to process a variety of latest and difficult-to-process

 materials, including toughness, hard and brittleness,

 ceramics, composite materials, etc. In rotary ultrasonic

 machining, the basic material removal phenomenon of

 ultrasonic machining is combined with traditional diamond

 grinding, resulting in a higher material removal rate,

 improved hole accuracy and excellent surface finish.


  • Item No.:

    HS-M20-W
  • Payment:

    T/T, PayPal, Western Union
  • Product origin:

    China
  • Color:

    Silver
  • Shipping port:

    Shanghai or Ningbo
  • Lead Time:

    40
  • Product Details


Non-contact Ultrasonic Auxiliary Processing Machine Maximum Speed 22000rpm For Hard Metal Milling/Drilling




Specification:


Item No.: HS-M20-W

Frequency: 20kHz

Power: 500Watt

Speed: 10000-22000rpm

Amplitude: 1-10um

Tool interface model: ER-16

Generator:Digital

Voltage: 220V/50HZ

Spindle: BT40 / BT50 / R8 / HSK63 / ISO / CAT



Principle:


Rotary ultrasonic machining is a mechanical type of non-traditional hybrid machining process that can be used to process a variety of latest and difficult-to-process materials, including toughness, hard and brittleness, ceramics, composite materials, etc. In rotary ultrasonic machining, the basic material removal phenomenon of ultrasonic machining is combined with traditional diamond grinding, resulting in a higher material removal rate, improved hole accuracy and excellent surface finish.



Application:


a. Able to process hard materials such as boron carbide, silicon carbide, and silicon nitride;

b. Small hole processing of hard and brittle materials, such as quartz, glass, sapphire, etc.;

c. Internal and external thread processing of brittle materials;

d. Ultrasonic cutting of complex profile and conventional round, square and tube.



Advantages:


1. The processing speed is fast; the processing is convenient and easy;

2. High processing accuracy; good surface quality;

3. The tool wear is small and the service life is long;

4. Wide adaptability to processing materials.



Ultrasonic machining effect:






微信图片_20190828134636No Ultrasonic

With Ultrasonic

1(1)2(1)3(1)
