High-Frequency Micromachining Ceramics With Rotary Ultrasonic Milling

High-Frequency Micromachining Ceramics With Rotary Ultrasonic Milling

High-Frequency Micromachining Ceramics With Rotary Ultrasonic Milling

  • Product origin:

    China
  • Product Details



Ultrasonic drilling



Ultrasonic drilling is a non-traditional, loose abrasive machining process.

In this the mirror image of a shaped tool can be created in hard, brittle materials.

Material removal is achieved by the direct and indirect hammering of abrasive particles against a workpiece. The Ultrasonic waves are sound waves of frequency higher than 20,000 Hz.


Applications

1. Various kinds of materials especially fragile rigid material.

2. Processing plane, groove, all kinds of form surface (such as spline, gear and thread) and special surface of mould.

3. Application area: machining industry, machine tool equipment manufacturing.

4. Application occasion: manufacturing enterprise, universities and colleges, scientific research institution, mechanical equipment transformation industry.



Technical Parameters:

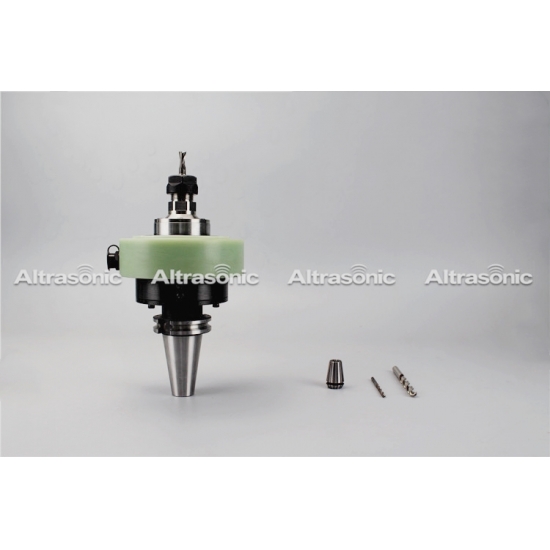

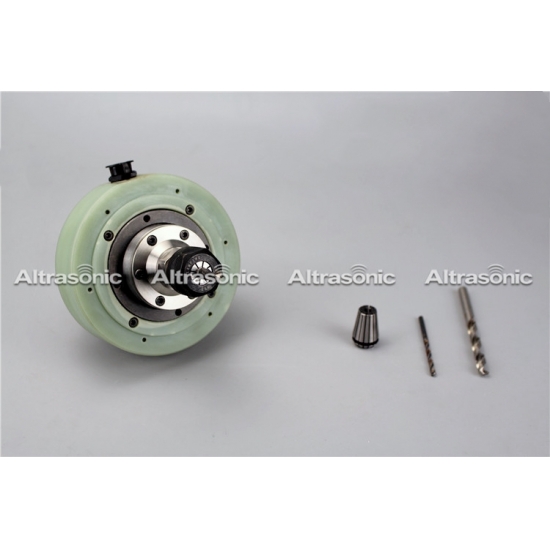

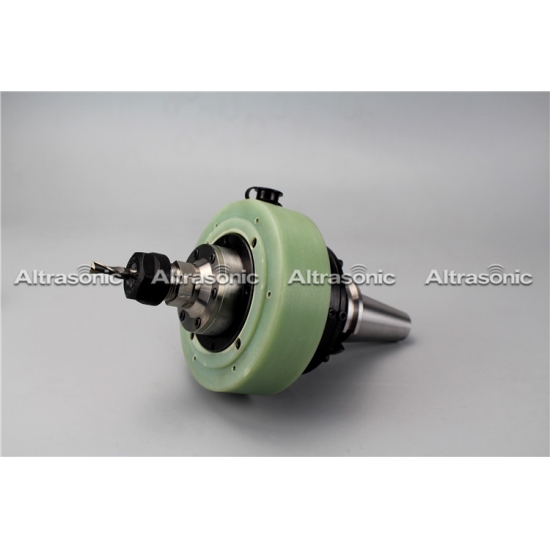

Product shape: milling machine handle

Working frequency: 20Khz/40Khz;

Resonance point amplitude: 10um or more;

Speed: 30000 r / min or less

Matching tool: carbide end mill head Φ2-Φ13; disk cutter Φ50;drilling hear Φ1~6

Power: 500W



Competitive Advantages:

Not only round but unsystematic machine can be done as the Ultrasonic drilling machining is longitudinally processed.

High accuracy and fine finished are obtained depending upon the tool accuracy and grit size.

Simple in operation even a beginner can operate the machine with ease.

4mm thickness can be drilled in 10-15 seconds on an average.

Workshop:



CE Certification:





Packing&Shipping:

Shipping Port:Shanghai

Shipping Term:By express,by air,by ocean and so on.

Leading Time:Quick production leading time and fast delivery.Usually 1-3days if we have in stock.







Payment:



FAQS

Q:Can your ultrasonic machine assemble to my CNC machine?

A:Yes, you need to inform us the type of tool holder like BT/CTA/ISO/HSKA , or you can provide drawings that we will customized the same on our ultrasonic part to match your CNC machine.



Q:What is the RMP(Round Per Minute) pf your equipment?

A:Normally the max speed of designed equipment is below 3000RMP, if you need faster for better performance, we will do the some adjustment to match the max speed 30000 RPM.



Q:What is the diameter of your drilling tool?

A:The diameter range of our drilling tool is 1mm to 13mm(according to customs application)
