Home Ultrasonic Cutting Machine

Ultrasonic Plastic & Fabric Cutting Machine

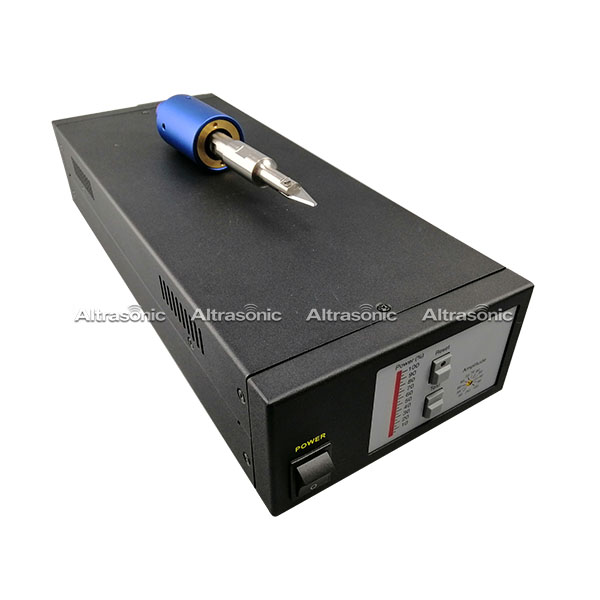

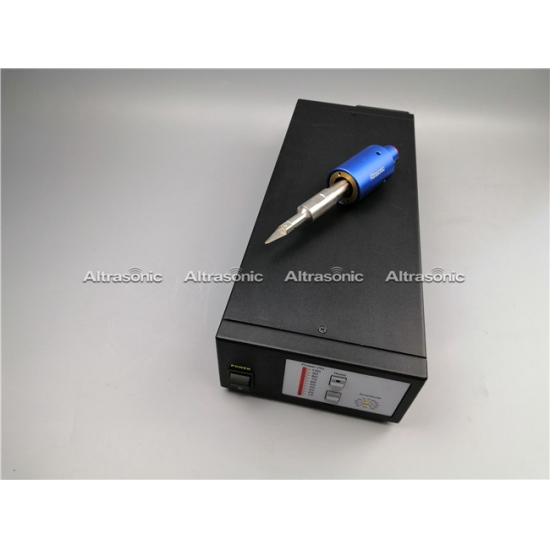

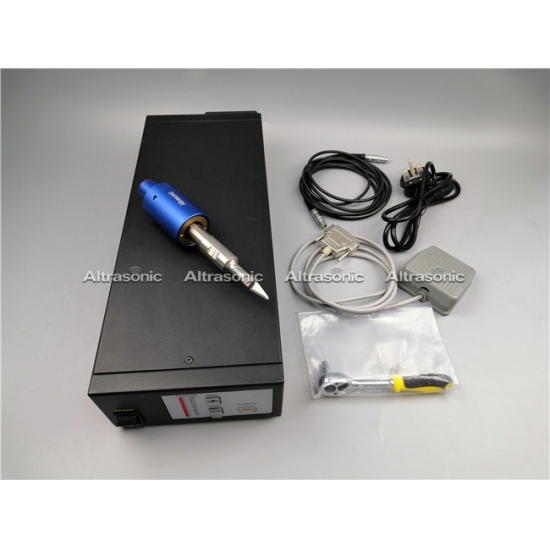

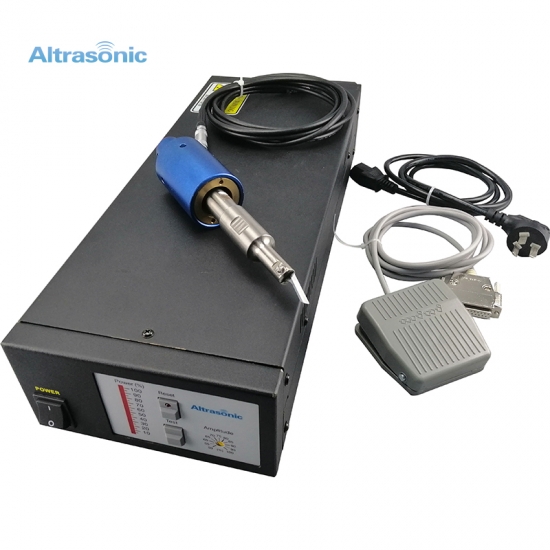

factory direct sale ultrasonic cutting machine for plastic fabric rubber cutting

factory direct sale ultrasonic cutting machine for plastic fabric rubber cutting

Ultrasonic plastic cutting knife, also known as ultrasonic cutting machine, is a kind of ultrasonic equipment specially used for cutting, and it is one of the important categories of ultrasonic applications

  • Item No.:

    HS-C30
  • Payment:

    T/T, Paypal, Western Union
  • Product origin:

    China
  • Color:

    Black and Blue
  • Shipping port:

    Shanghai or Ningbo
  • Lead Time:

    5
  • Product Details

factory direct sale ultrasonic cutting machine for plastic fabric rubber cutting

Specification:



 Item No.:  HS-C30
 Frequency:  30kHz
 Power:  500Watt
 Generator:  110V/220V Digital Generator

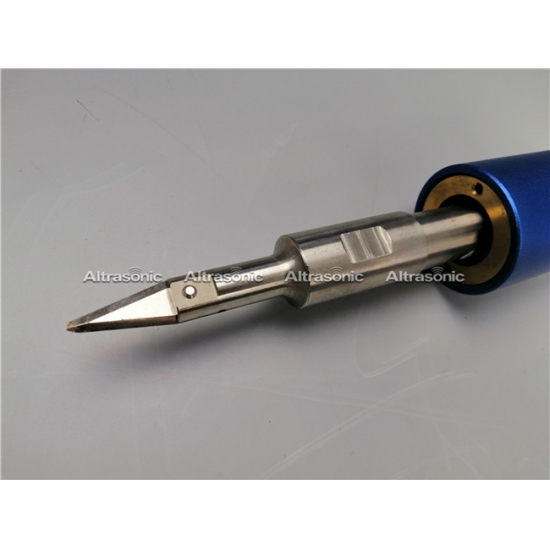

 Blade:  Replaceable
 Material of Blade:  Stainless Steel
 Generator Size:  452*180*100mm
 Length of Cable:  3M
 Materail of Sheel:  Alumiunm
