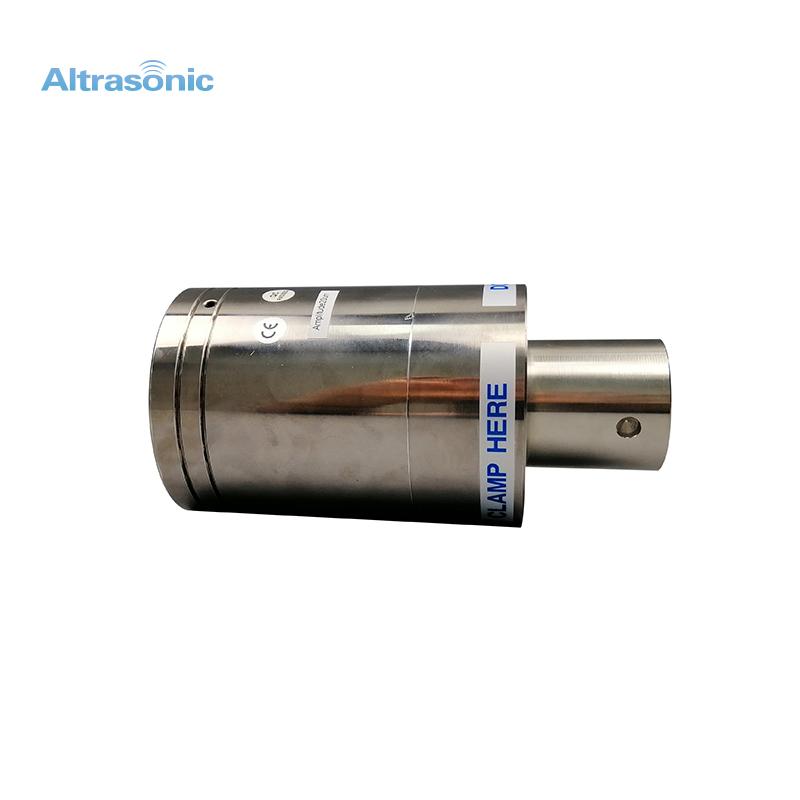

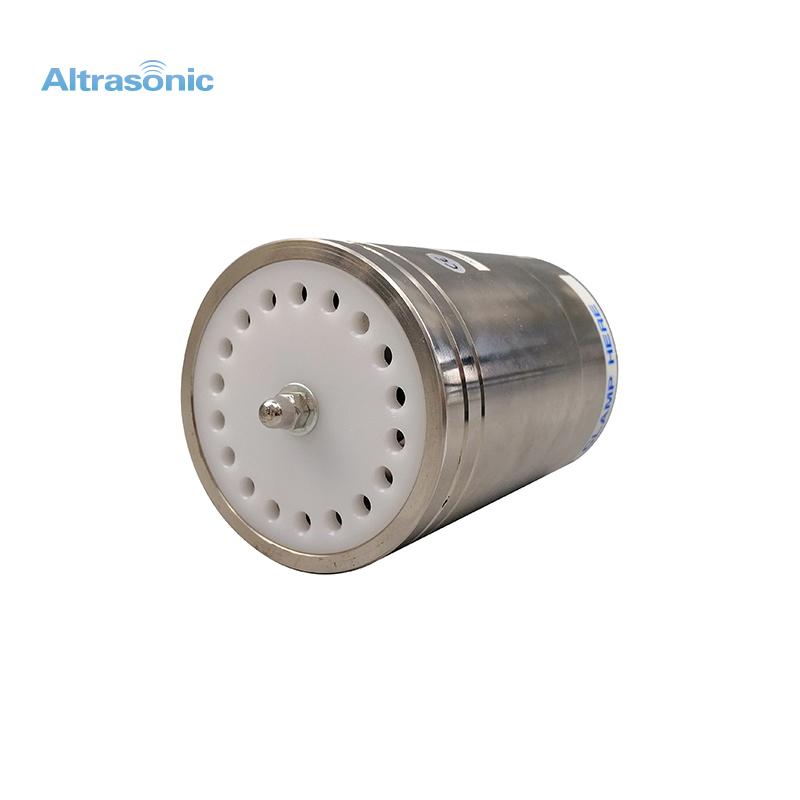

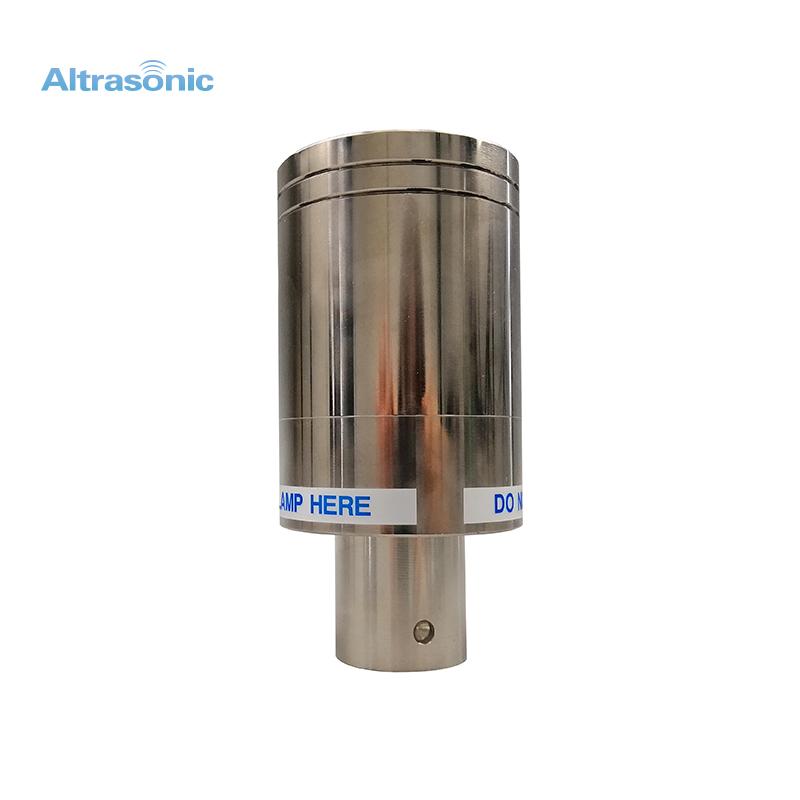

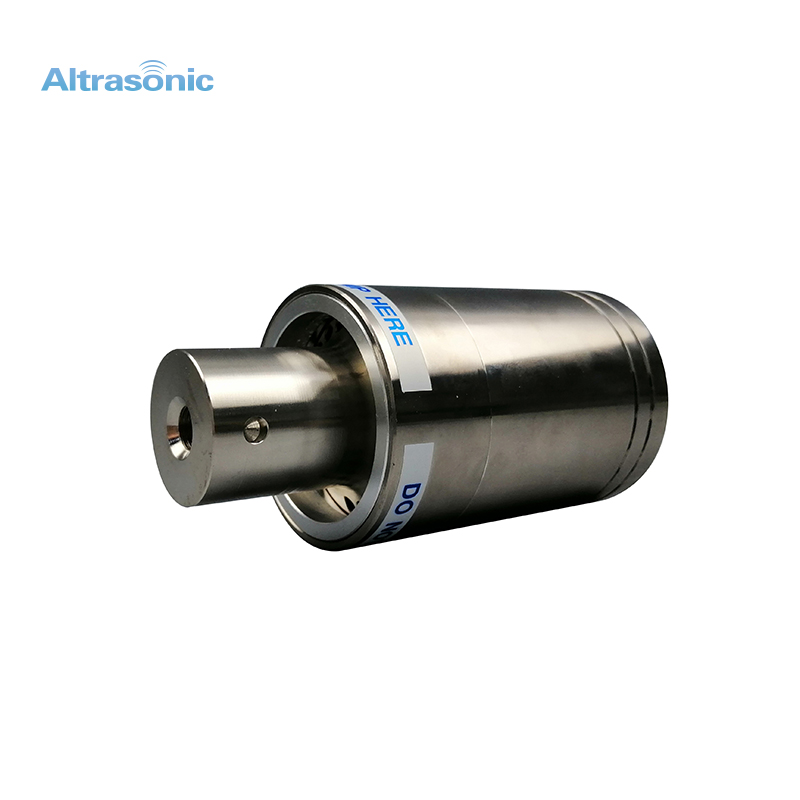

The transducer is the core component of the ultrasonic welding equipment. We can provide customized service as long as you tell us some special requirements you need. And its quality can be comparable to original part.
Item No.:
HS-BCJ20Payment:
T/T, Paypal, Western UnionProduct origin:
ChinaColor:
SliverShipping port:
Hangzhou or ShanghaiLead Time:
7
Description:
An ultrasonic transducer is an energy conversion device that converts an alternating electrical signal into an acoustic signal or converts an acoustic signal in an external sound field into an electrical signal in an ultrasonic frequency range. It is a key device in ultrasonic technology, and its performance is good or bad. It is directly related to the effect and scope of application of ultrasonic application technology. Due to the wide range of applications of ultrasonic technology and the emergence of new ultrasonic technologies, there are many types of ultrasonic transducers.
Specification:
Item No
HS-BCJ20
Frequency
20 kHz
Power
1100 - 4000 watt
Connect screw
1/2-20 UNF
Diameter of ceramic
50 mm
Quantity of ceramic
6 pcs
Capacitance
19 - 21 nF
Advantages:
1. Titanium materials
2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.
3. One by one testing to ensure that each transducer performance are excellent.
4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.
Previous :
50 mm Ceramic Discs Ultrasonic Welding Converter Replacement Branson CJ20Next :
1/2-20 UNF Connect Screw Ultrasonic Converter Replacement Branson CJ20If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
