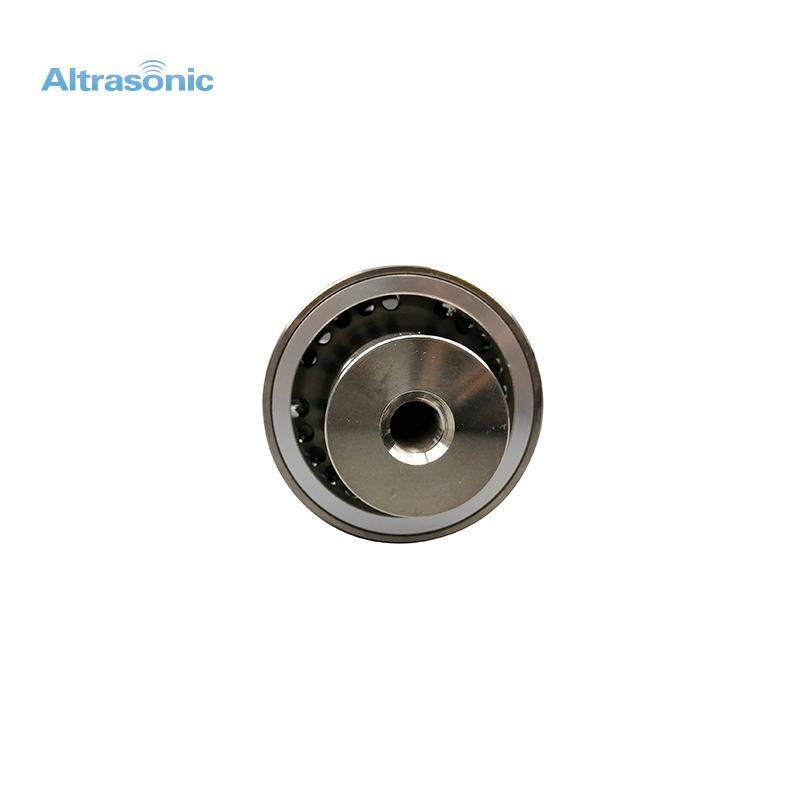

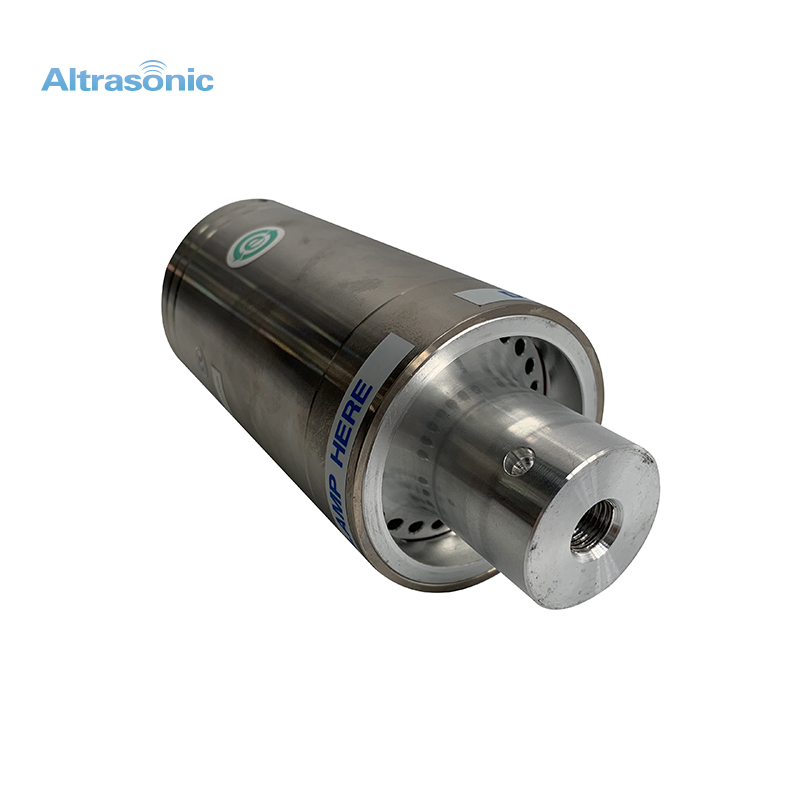

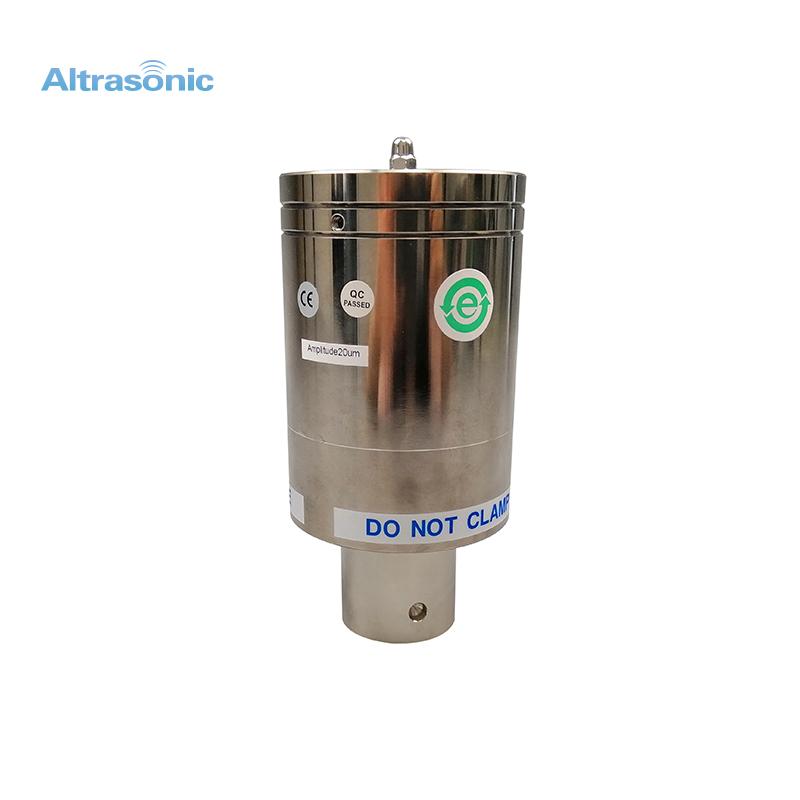

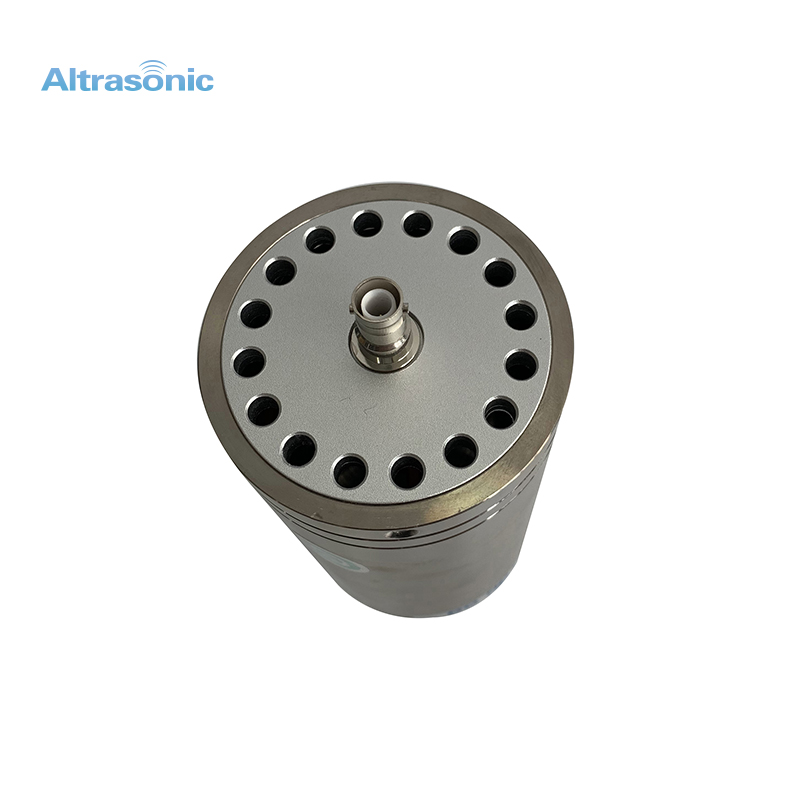

The high power 20 KHz Ultrasonic Converter can directly replace the Branson CJ-20 (101-135-059) , that delivers lower cost, rugged quality and superior value.
Item No.:
HS-BCJ20Payment:
T/T, Paypal, Western UnionProduct origin:
ChinaColor:
SliverShipping port:
Hangzhou or ShanghaiLead Time:
7
Description:
Ultrasonic transducers are piezoelectric ceramics, which resonate at ultrasonic frequencies and convert electrical signals into mechanical vibrations through the piezoelectric effect of the material. When the transducer is used as a transmitter, the electric oscillation signal emitted by the excitation source will change the electric field or magnetic field in the energy storage element of the transducer, thereby changing the mechanical vibration system of the transducer through a certain effect.
Specification:
Item No
HS-BCJ20
Frequency
20 kHz
Power
1100 - 4000 watt
Connect screw
1/2-20 UNF
Diameter of ceramic
50 mm
Quantity of ceramic
6 pcs
Capacitance
19 - 21 nF
Advantages:
1. High-quality materials are matched with selected materials, perfect resonance image.
2. Large amplitude and long service life.
3. Stable design can protect sensitive ultrasonic components.
