Ultrasonic Cutters can also be attached to automated machinery arms. Although they may not be familiar to you, they play an active role in the manufacturing processes of various industrial products which we use daily.
Item No.:
HS-C40Payment:
T/T, Paypal, Western UnionProduct origin:
ChinaColor:
WhiteShipping port:
Ningbo or ShanghaiLead Time:
10

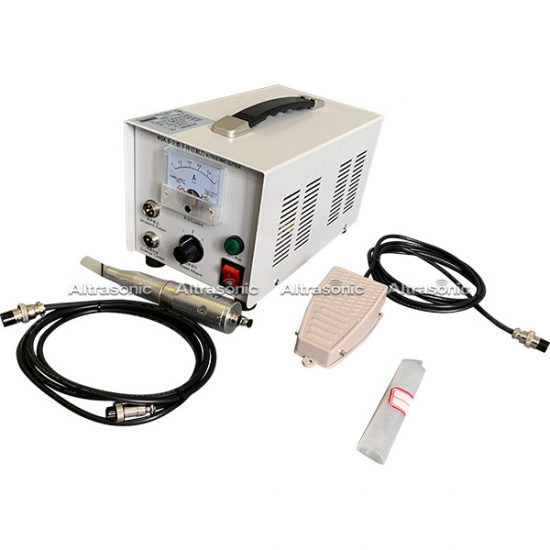

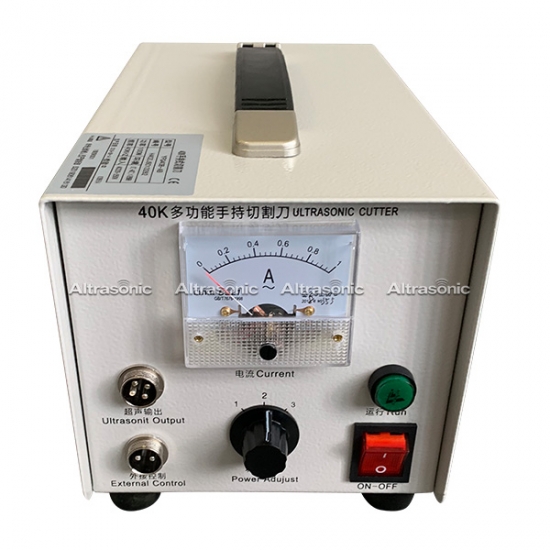

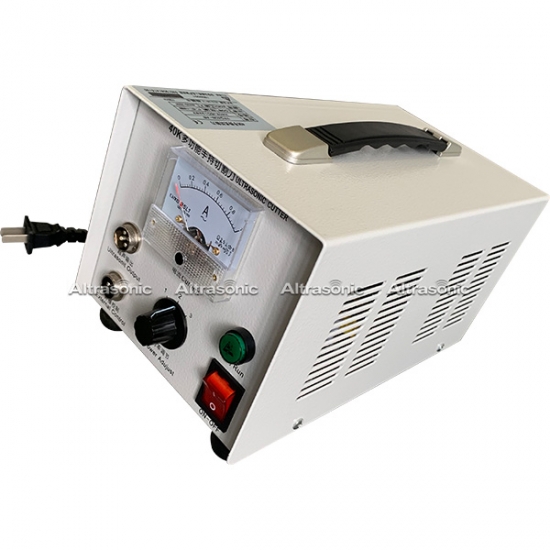

Eco-friendly Cutting Multilayer Materies for 40kHz Ultrasonic Cutter
Parameter:
Item No.
HS-C40
Frequency
40kHz
Power
100Watt
Generator
Analog Generator, 155 x 265 x 170mm
Handle
Φ32×170
Voltage
110V/220V
Accessory
Foot switch: 1pc; Blade 25pcs or 5pcs
Weight
8kg
Length of Cables
3M
Outer Skin
Aluminum
Description:
The sharpness of Ultrasonic Cutters differs according to various combinations of oscillator, transducer, and blade. Because of abundant experience, our company prepares combinations suitable for various materials. Since we can select the model most suitable for your cutting work, we ask that you confirm the sharpness of the selected model by test cutting first.
Advantage:
1. Suitable for cutting plastic films, cloths made of soft thermoplastic materials or synthetic fabric.
2. Convenient cutter holder with rollers under foot.
3. Controlled by a button on the handle.
4. The generator automatically adjusts the output power level.
5. Ultrasonic cutting allows to seal fabric edge, which prevents fraying.
6. The knife is ready for use immediately after the generator is turned on, one has to press a button on the handle and start cutting.
7. Ultrasonic cutting is safe with no emissions of cutting fumes such as smoke or toxic fumes from textiles.
8. The cutting tip does not need to be cleaned.
9. Built-in ventilation prevents generator heating during continuous operation.
10. The unit is very energy efficient.
11. Power output indicator is on the front panel of the generator.
12. 1 year warranty for generator.
Processing Center:
CE:
Shipping Method:
Payment Method:
Previous :
Flexibility Cutting Aramic and ABS used in Ultrasonic CutterNext :
100W 40khz Ultrasonic Fabric Cutting Machine with Replaceable BladesIf you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Categories
New Products
The applicable materials of ultrasonic wave sealing and cutting include: 100% of synthetic fiber, such as nylon, polyester, polypropylene, some polyethylene, modified acrylic resin, vinyl compounds, carbamate compounds, thin films, coated paper, etc.
Mainly used in many kinds of plastic materials，such as: ABS PE, PVC, Acrylic, Nonwovens, Chloroprene Rubber, Corrugated Paper, Polywood, Glass Fiber Resin, Thick Cardboard, Linen (linoleum), Urethane, Nylon, PP, etc.
Altrasonic solutions are designed for high-speed ultrasonic cutting, trimming, deburring and chamfering applications. This technology replaces waterjet, laser cutting, hard tooling and manual trimming or routing methods. Whatever your current approach, Altrasonic ultrasonic technology can reduce operating costs and improve trim quality.
Ultrasonic handheld cutting machine suitable for materials with thickness 7mm.
Altrasonic solutions are designed for high-speed ultrasonic cutting, trimming, deburring and chamfering applications. This technology replaces waterjet, laser cutting, hard tooling and manual trimming or routing methods. Whatever your current approach, Altrasonic ultrasonic technology can reduce operating costs and improve trim quality.
Ultrasonic cutting to generate a precise cut with clean edges. Cutting is done without any pressure on the material. Process times are extremely short and energy consumption is low.
Ultrasonic cutting to generate a precise cut with clean edges. Cutting is done without any pressure on the material. Process times are extremely short and energy consumption is low.
Altrasonic solutions are designed for high-speed ultrasonic cutting, trimming, deburring and chamfering applications. This technology replaces waterjet, laser cutting, hard tooling and manual trimming or routing methods. Whatever your current approach, Altrasonic ultrasonic technology can reduce operating costs and improve trim quality.
