With high quality and well match with Dukane Type ultrasonic welder.
Item No.:
HS-D41C30Payment:
T/T, PayPal, Western UnionProduct origin:
ChinaColor:
Silver and YellowShipping port:
Shanghai or Ningbo

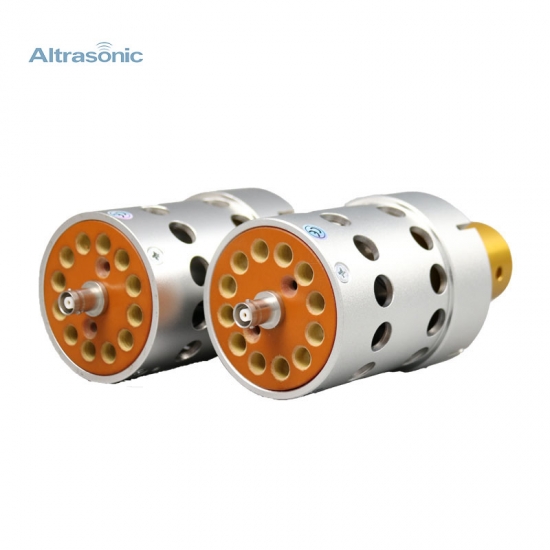

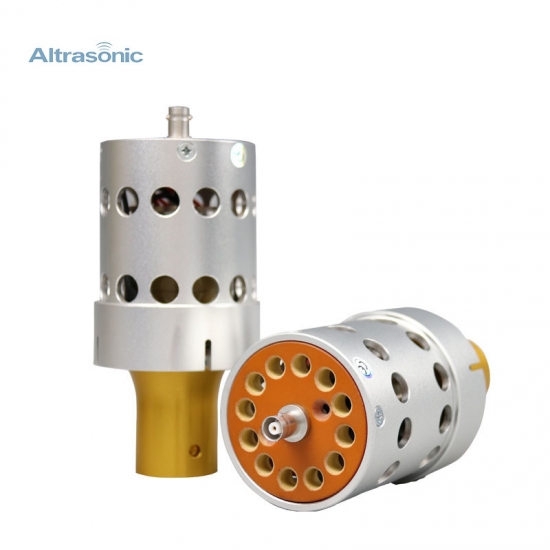

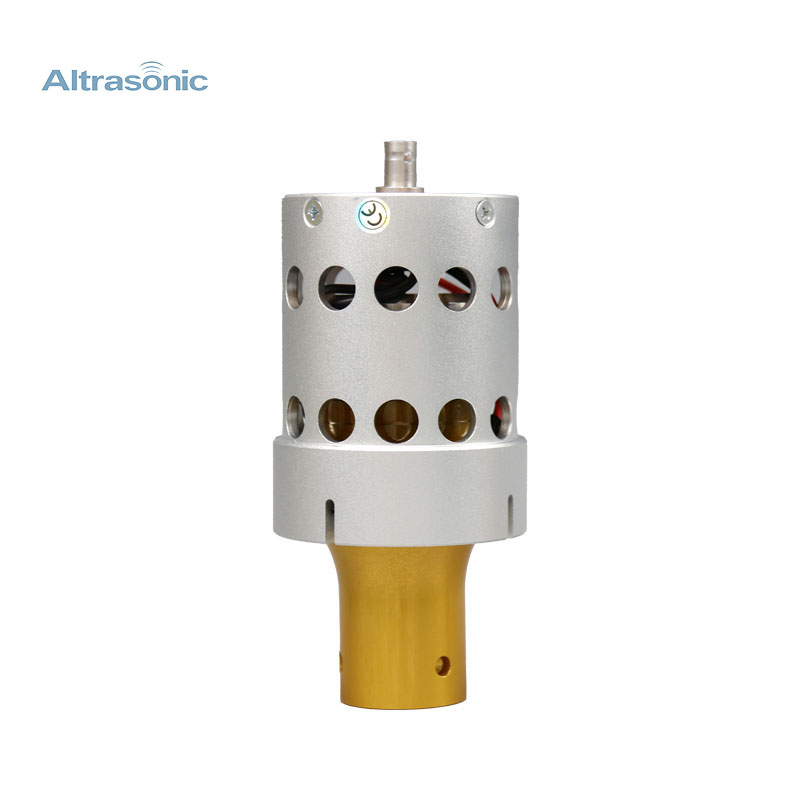

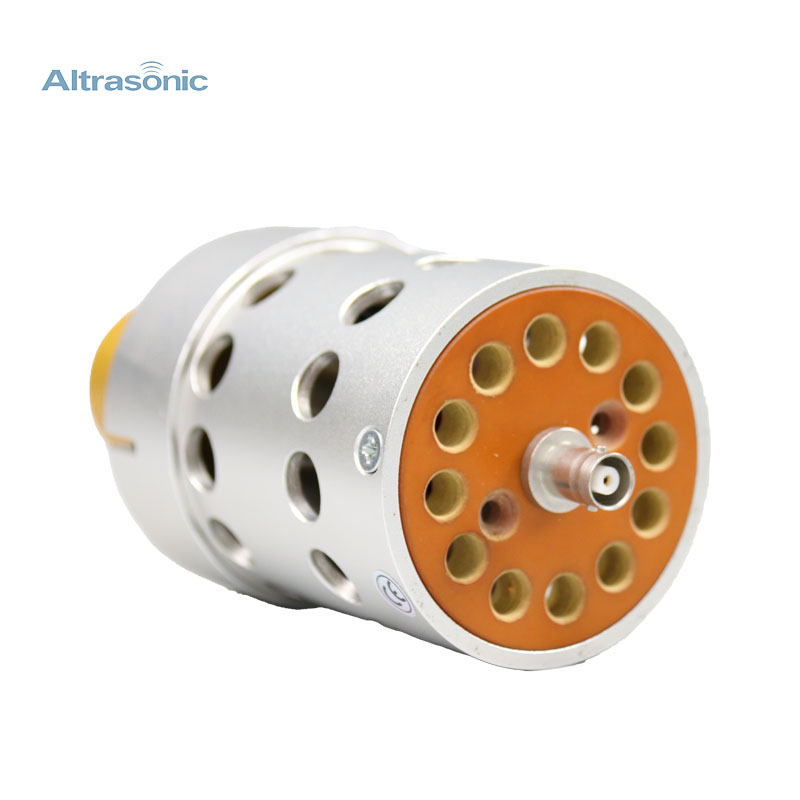

Dukane 41C30 Transducer Replacement High Power Ultrasonic Machinery Components
Specification:
Item No
HS-D41C30
Frequency
20 kHz
Power
2000 watt
Joint bolt
1/2-20 UNF
Diameter of ceramic
50 mm
Quantity of ceramic
4 pcs
Capacitance
11~17 nF
Amplitude
20 um
Application
Plastic welding machine
Description:
The 2000 Watt 20 KHz Ultrasonic Converter Direct replacement for the Dukane 41C30 that delivers lower cost, rugged quality and superior value.
First, all of the parts are all new. The parts are made from certified materials in tightly controlled manufacturing processes, assembled and tested in a climate-controlled environment using carefully calibrated equipment, then properly aged and re-tested to ensure performance that duplicates the OEM part.
What we can do for you:
1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.
3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.
Previous :
Aluminum Protective 20khz Dukane 41S30 Ultrasonic Welding Transducer ReplacementNext :
Replacement of Ultrasonic Converter Dukane 41C30 for High-precision Plastic WelderIf you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Categories
New Products
We can replace the front and back cover of the transducer according to the need. The 20k ultrasonic transducer can be installed with ultrasonic thermoplastic welding machine to weld thermoplastic materials.
We can replace the front and back cover of the transducer according to the need. The 20k ultrasonic transducer can be installed with ultrasonic thermoplastic welding machine to weld thermoplastic materials.
The 2000 Watt 20 KHz Ultrasonic Converter Direct replacement for the Dukane 110-3122 that delivers lower cost, rugged quality and superior value.
Replacement Dukane 110-3122 Converter, used for Dukane plastic welding machine.
The 20kHz High Power Ultrasonic Welding Transducer, replacement converter for Dukane type 41S30, is applied to Dukane type ultrasonic welding machine.
Ultrasonic device consists of ultrasonice transducer, booster and work horn. The transducer is an energy converter, which can converted the high frequency, high power current, output of power supply into reciprocating mechanical energy of the ultrasonic vibration, the vibration frequency output of drive power with the same frequency as the current.
The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations.
We can replace the front and back cover of the transducer according to the need. The 20k ultrasonic transducer can be installed with ultrasonic thermoplastic welding machine to weld thermoplastic materials.
