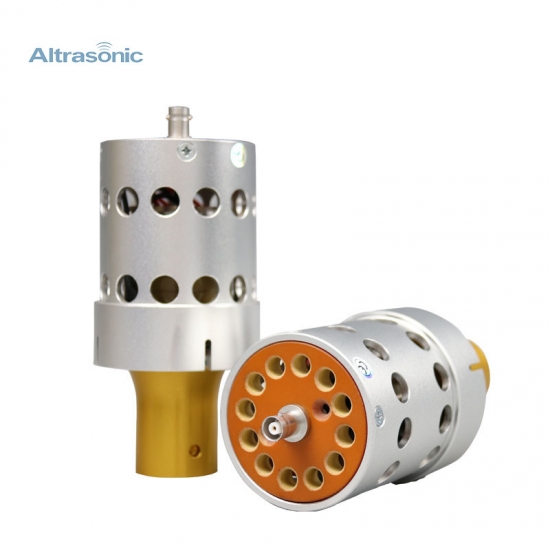

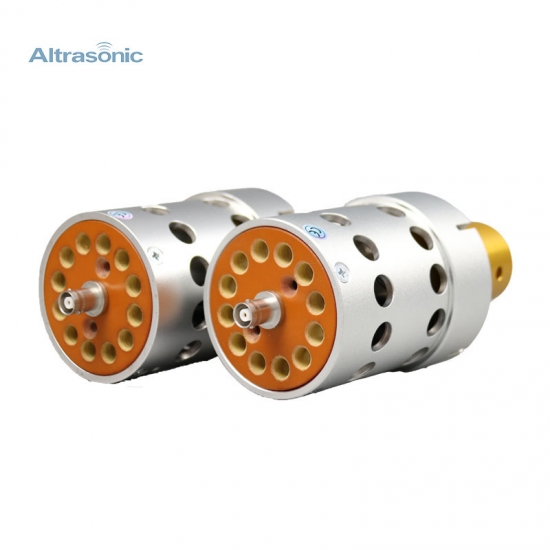

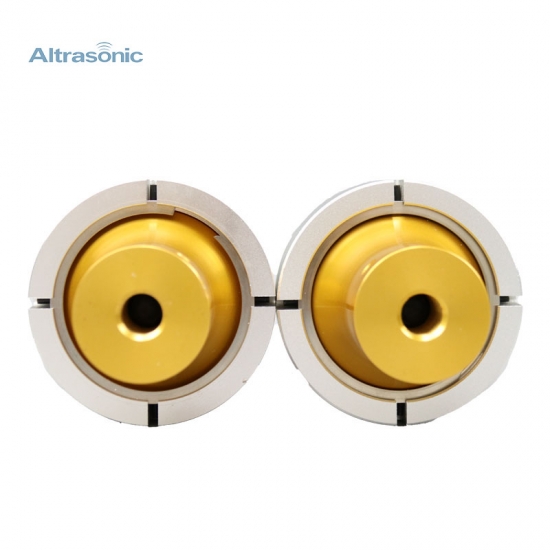

Replacement of Ultrasonic Converter Dukane 41C30 for High-precision Plastic Welder

Replacement of Ultrasonic Converter Dukane 41C30 for High-precision Plastic Welder

With high quality and well match with Dukane Type ultrasonic welder.

  • Item No.:

    HS-D41C30
  • Payment:

    T/T, PayPal, Western Union
  • Product origin:

    China
  • Color:

    Silver and Yellow
  • Shipping port:

    Shanghai or Ningbo
  • Product Details


Replacement of Ultrasonic Converter Dukane 41C30 for High-precision Plastic Welder




Specification:


 Item No  HS-D41C30
 Frequency  20 kHz
 Power  2000 watt
 Joint bolt  1/2-20 UNF
 Diameter of ceramic  50 mm
 Quantity of ceramic  4 pcs
 Capacitance  11~17 nF
 Amplitude  20 um
 Application  Plastic welding machine



Description:



All of the components used in construction of these Dukane 41C30 replacement transducers are all new, not recovered from scrapped units. These converters are made in a highly controlled and repeatable manner to duplicate the performance of the OEM models. The parts are made from certified materials in tightly controlled manufacturing processes, assembled and tested in a climate-controlled environment using carefully calibrated equipment, then properly aged and re-tested to ensure performance that duplicates the OEM part. The entire process is conducted in a ISO registered facility. Best of all, since the manufacturing process is so carefully controlled, durability is assured.

What we can do for you:



1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.

2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.

3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.
