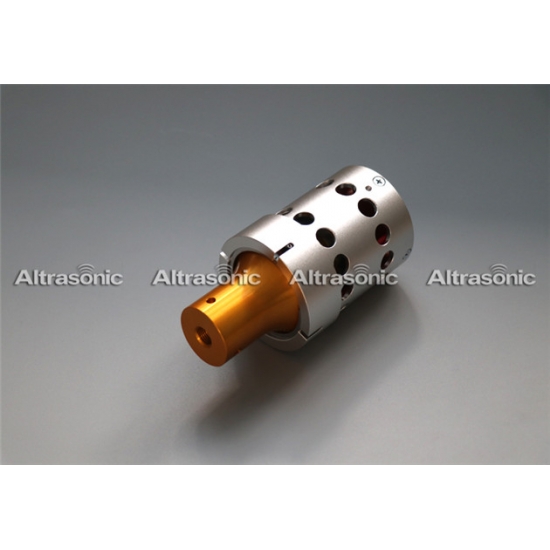

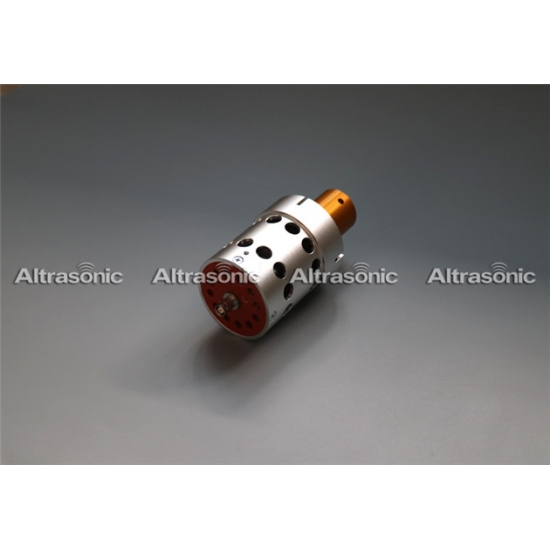

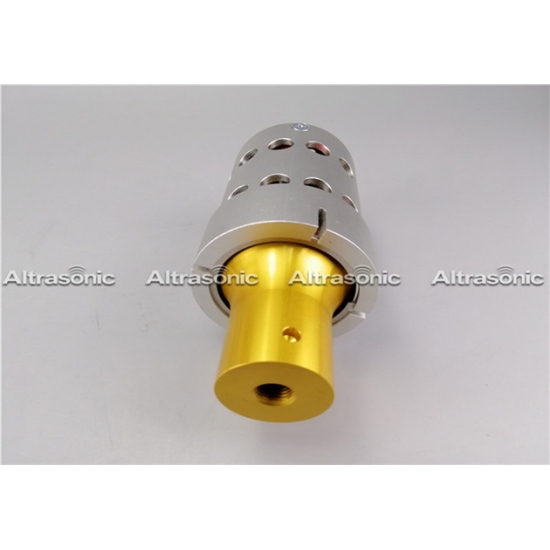

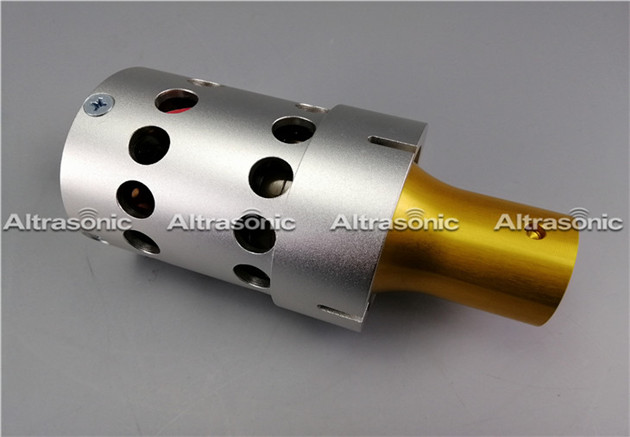

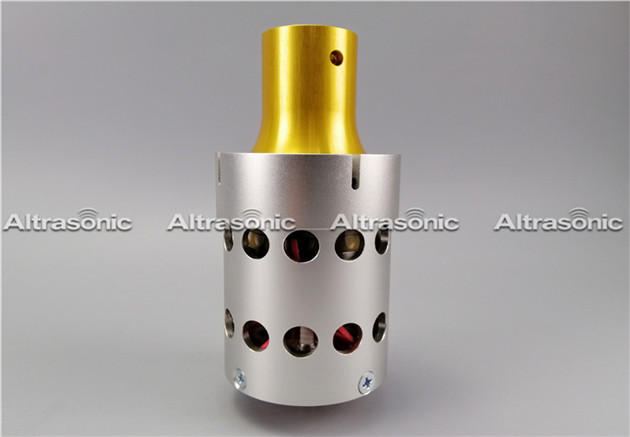

Ultrasonic Welding Transducer Replacement 20kHz 2000W Dukane 41C30

Ultrasonic Welding Transducer Replacement 20kHz 2000W Dukane 41C30

We can replace the front and back cover of the transducer according to the need. The 20k ultrasonic transducer can be installed with ultrasonic thermoplastic welding machine to weld thermoplastic materials.

  • Item No.:

    HS-D41C30
  • Payment:

    T/T, PayPal, WWestern Union
  • Product origin:

    China
  • Color:

    Silver, Yellow
  • Shipping port:

    Shanghai or Ningbo
  • Product Details

Ultrasonic Welding Transducer Replacement 20kHz 2000W Dukane 41C30




Description:


Ultrasonic transducer is the core part of the whole machine, which converts electrical energy into mechanical energy through piezoelectric ceramic (PZT) piezoelectric effect. Our transducer  Direct replacement for the Dukane 41C30 and  has lower cost, rugged quality and superior value.We can replace the front and back cover of the transducer according to the need. The 20k ultrasonic transducer can be installed with ultrasonic thermoplastic welding machine to weld thermoplastic materials.



Specification:


Model

Replacement Dukane 41C30

Frequency 20Khz
Output power 2000 watt
Joint bolt 1/2-20 UNF
Ceramic disc Diameter 50mm
Qty of ceramic discs 4pcs
Capacitance 11-17 nf
Amplitude 20 um
Application Plastic welding machine



Applied Range:



Ultrasonic transducer,ultrasonic generator and ultrasonic horn constitute a whole ultrasonic system,

which can be widely used to do welding in various kinds of industries.

Applied Industries : automobile industry, electric industry, medical industry, household appliance industry, non woven fabric clothing,packing, office supplies, toys, etc.

Applied Machines : Ultrasonic cleaner,Beauty set,welding machines,cutting machines,Medical scalpel and tartar clear.



Replacement Item:



Item No Connect Screw (Size)

Ceramic diameter

(mm)

Qty of ceramic

(PC)

Frequency(khz) Resistance(Ω) Color of ceramic Capacitance

Input Power

(W)

Branson CJ20 1/2-20UNF 50 6 19.90 10 Yellow 20000 3300
Branson 502 1/2-20UNF 50 6 19.90 10 Yellow 20000 3300
Branson 402 M8*1.25 25 4 39.60 10 Yellow 4200 800
Branson 4TH M8*1.25 25 4 39.90 10 Yellow 4200 800
Branson 902 1/2-20UNF 40 4 19.85 10 Yellow 8000 1100
Branson 922J 1/2-20UNF 50 6 19.90 10 Yellow 20000 2200
Dukane 40K M8*1.25 35 2 39.80 5 Gray 3000 800
Dukane 20K 1/2-20UNF 50 2 19.50 10 Yellow 11000 2000
Dukane 110-3122 1/2-20UNF 50 4 19.50 10 Yellow 11000 2000
Dukane 110-3168 1/2-20UNF 45 2 19.50 10 Yellow 4000 800
Rinco 35K M8*1.25 25 2 34.80 50 Yellow 2000 900
Rinco 20K M16*2 50 2 19.90 50 Yellow 5000 3000
Telsonic 35K M8*1.25 25 4 35.00 5 Yellow 4000 1200
Telsonic 20K 1/2-20UNF 50 4 20.00 3 Yellow 10000 2500



What we can do for you:



1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.

2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.

3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.
