China Factory Direct Sales Ultrasonic Slitter for Smoothly Cut Difficult-to-cut Plywood

China Factory Direct Sales Ultrasonic Slitter for Smoothly Cut Difficult-to-cut Plywood

Ultrasonic cutting machine is the use of wave energy for cutting equipment, the main feature is cut fast, precise and the cutting edge is smooth.

  • Item No.:

    HS-C40
  • Payment:

    T/T, West union, Paypal
  • Product origin:

    China
  • Color:

    White
  • Shipping port:

    Hangzhou or Shanghai
  • Product Details



Ultrasonic Slitter for Smoothly Cut Difficult-to-cut Plywood





Specification:



Model HS-C40
Frequency 40KHZ
Output Power 100W

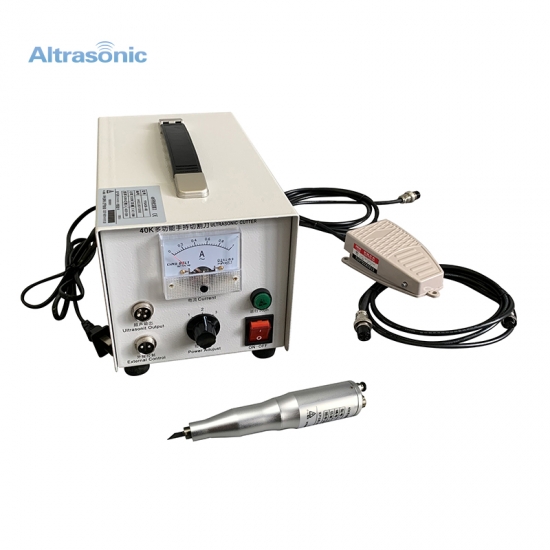

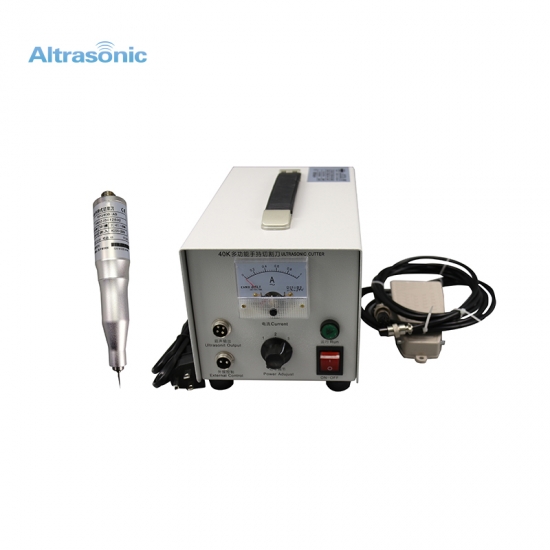

Generator Analog generator, 155 x 265 x 170mm
Handle Φ32×170

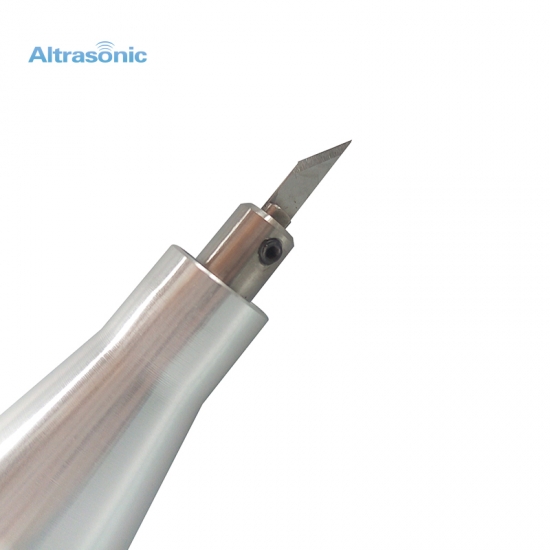

Size of cutter Blade replaceable
Length of cable 3M
Outer skin Aluminum
Weight 8KG
Voltage 220V / 110V
Accessory Foot switch1pc;Cut blade 25pcs;1.5mm special hex wrench 1pc;
Screw M3×4L 2pcs
Material of cutter titanium alloy, stainless steel



Description:



An ultrasonic transducer creates a vibrating blade, enabling the cutting edge to more easily slice through a wide range of materials – thin plastics sheets, rubber, paper products, woven and non-woven materials, and even carbon fiber pre-preg. Available models are designed around hand-held pieces, or mountable transducers for use with industrial robots, plotters, and automated machinery.

Ultrasonic cutters are essentially cutting or trimming tools utilizing a vibrating ultrasonic horn to assist the cutting action of sharp utility knife blades. Ultrasonic vibrations are transmitted to the end of the blades resulting in a substantially smoother and even cutting action.



Advantage:


- Suitable for cutting plastic films, cloths made of soft thermoplastic materials or synthetic fabric.

- Convenient cutter holder with rollers under foot.

- Controlled by a button on the handle.

- The generator automatically adjusts the output power level.

- Ultrasonic cutting allows to seal fabric edge, which prevents fraying.

- The knife is ready for use immediately after the generator is turned on, one has to press a button on the handle and start cutting.

- Ultrasonic cutting is safe with no emissions of cutting fumes such as smoke or toxic fumes from textiles.

- The cutting tip does not need to be cleaned.

- Built-in ventilation prevents generator heating during continuous operation.

- The unit is very energy efficient.

- Power output indicator is on the front panel of the generator.

- 1 year warranty for generator.
