Home Ultrasonic Cutting Machine

Ultrasonic Plastic & Fabric Cutting Machine

40khz ultrasonic rubber cutter high power cutting machine

40khz ultrasonic rubber cutter high power cutting machine

We have ultrasonic rubber cut with frequency 20khz and 40khz.

  • Item No.:

    HS-CR40
  • Payment:

    T/T, West union, Paypal
  • Product origin:

    China
  • Color:

    White
  • Shipping port:

    Hangzhou or Shanghai
  • Product Details

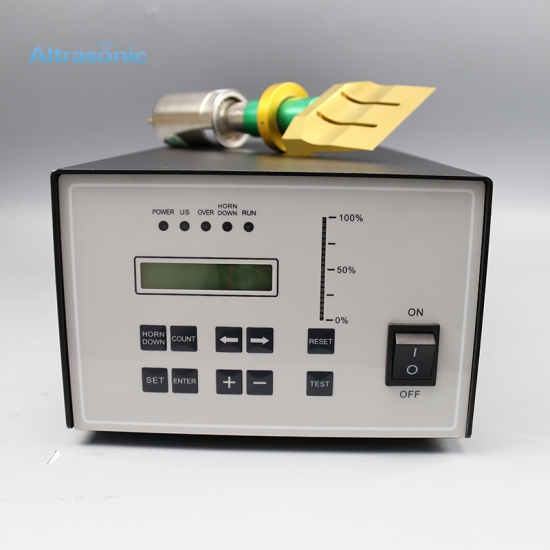

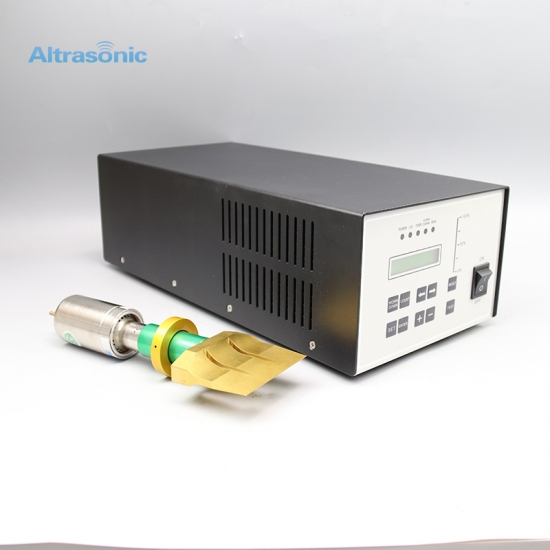

40khz ultrasonic rubber cutter high power cutting machine



Specification:



 Item No  HS-CR40
 Frequency  40kHz
 Power  500watt
 Input  AC110-240V,50/60Hz
 Power controller  Pulse or Continuous
 Material of cutting blade  Titanium Alloy
 Accessories  Foot switch, additional blade
 Application  rubber, thermoplastics
 Foot switch  Available



Description:



Blade and ultrasonic trimming machines is a general purpose portable cutter which can cut material smoothly, due to ultrasonic vibration, cut prepregs faster, more efficiently and with less fiber damage than conventional cutting methods, and are thereby more cost effective through greater productivity and reduced material waste. Ultrasonic energy is trigger activated providing operators with control over cutting pressure and the duration of ultrasonic activation. Accessories for remote operation of a Sonicut system in a machine mounting are available.


Advantage:



1. Light weight, convenient for handheld operation

2. Can work for a long time with stable effect

3. Comes with a cooling fan to extend the service life

4. Color of cutter head is optional




Workshop:



CE:



Packing&Shipping:


Shipping Port:Shanghai

Shipping Term:By express,by air,by ocean and so on.

Leading Time:Quick production leading time and fast delivery.Usually 1-3days if we have in stock.




Payment:

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
