Home Ultrasonic Cutting Machine

Ultrasonic Plastic & Fabric Cutting Machine

40khz 100watt ultrasonic thermoplastic cutter with 20pieces blades

40khz 100watt ultrasonic thermoplastic cutter with 20pieces blades

Ultrasonic cutting machine is the use of wave energy for cutting equipment, the main feature is cut fast, precise and the cutting edge is smooth.

  • Item No.:

    HS-C40
  • Payment:

    T/T, West union, Paypal
  • Product origin:

    China
  • Color:

    White
  • Shipping port:

    Hangzhou or Shanghai
  • Product Details

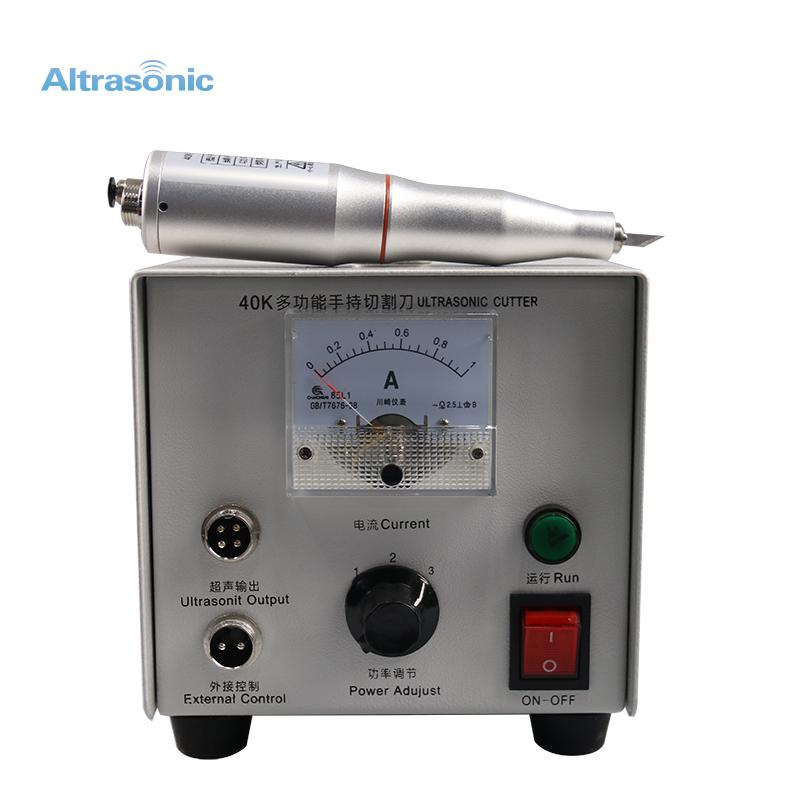

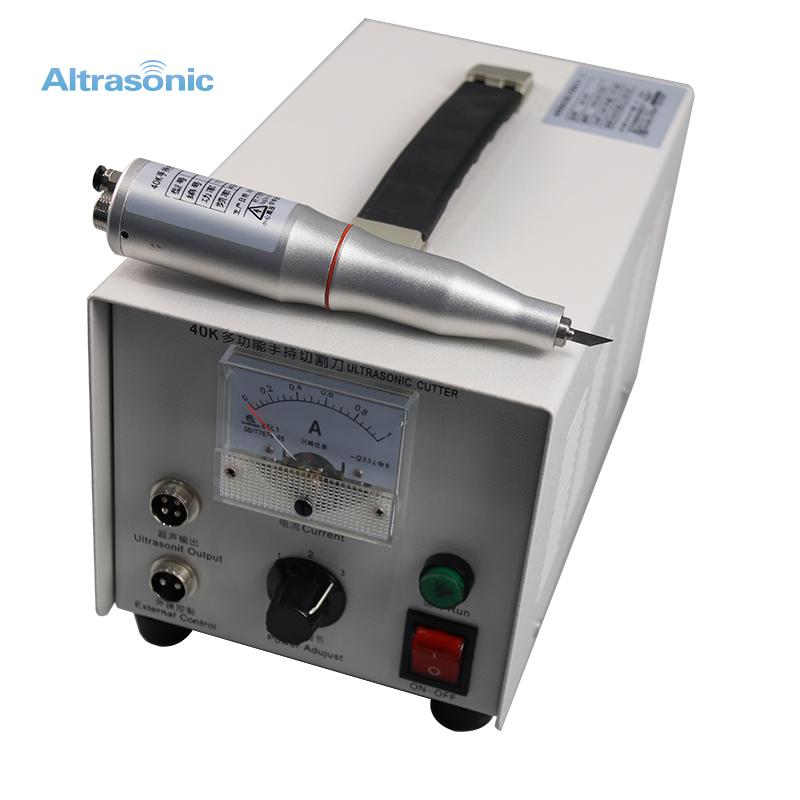

40khz 100watt ultrasonic thermoplastic cutter with 20pieces blades




Specification:



Model HS-C40
Frequency 40KHZ
Output Power 100W

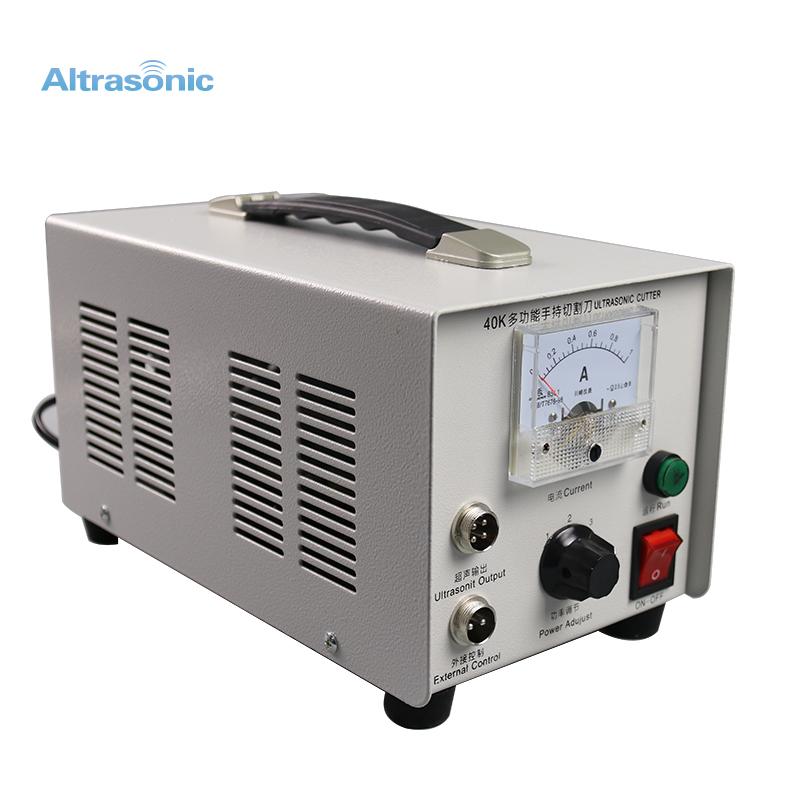

Generator Analog generator, 155 x 265 x 170mm

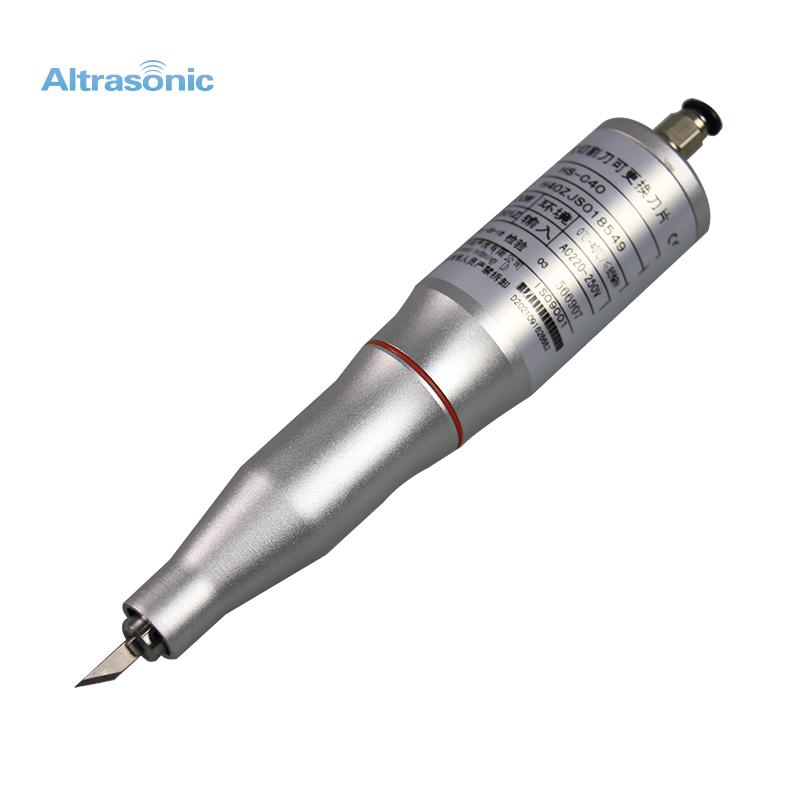

Handle Φ32×170
Size of cutter Blade replaceable
Length of cable 3M
Outer skin Aluminum
Weight 8KG
Voltage 220V / 110V
Accessory Foot switch1pc;Cut blade 25pcs;1.5mm special hex wrench 1pc;
Screw M3×4L 2pcs
Material of cutter titanium alloy, stainless steel



Description:



Ultrasonic plastic cutting machine is used for cutting rubber , synthetic , cloth , plastic , sheet metal , food etc..

.

Advantage:


– No fraying and selvage
– No burns on fabrics and emissions of toxic fumes
– No warm up waiting time
– Shorter production times
– Less energy consumption
– No need for thread in seams
– Coupling together two fabrics or one with a film
– Simultaneously punching and sealing
– Cutting and sealing synthetic cloth at the same time

Workshop:



CE:



Packing&Shipping:


Shipping Port:Shanghai

Shipping Term:By express,by air,by ocean and so on.

Leading Time:Quick production leading time and fast delivery.Usually 1-3days if we have in stock.




Payment:
