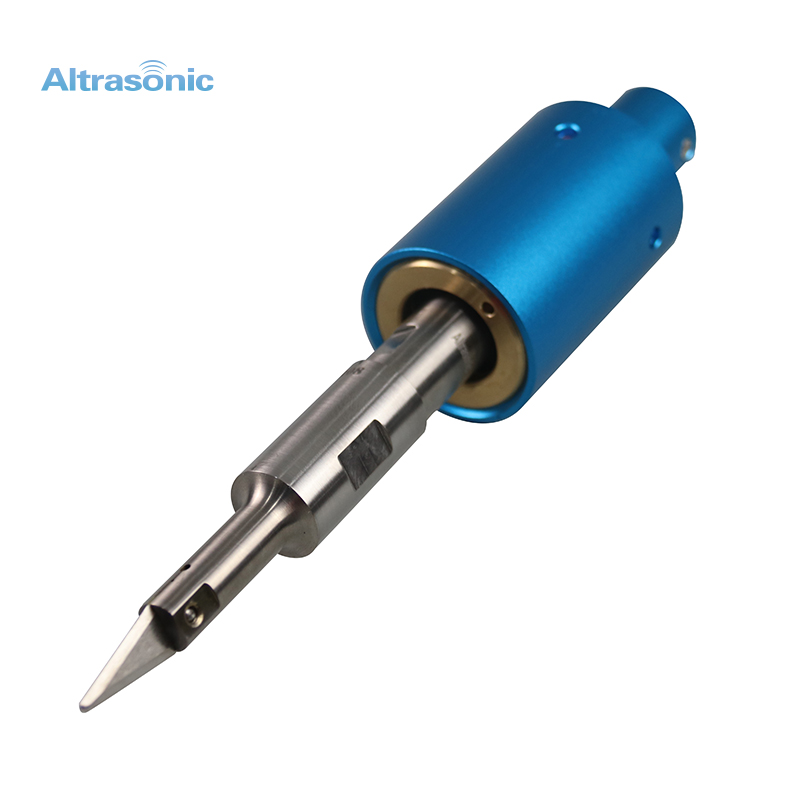

30khz Robotic Ultrasonic Cutting Knife For Precise And Smooth Deburring And Trimming

30khz Robotic Ultrasonic Cutting Knife For Precise And Smooth Deburring And Trimming

30khz ultrasonic cutting machine can be used by handheld or install on automated machinery.Its advantage is that it will not damage the cutting material and does not need a large cutting force, and can improve the cutting efficiency and quality.

  • Item No.:

    HS-C30
  • Payment:

    T/T, Paypal, Western Union
  • Product origin:

    China
  • Color:

    Black and Blue
  • Shipping port:

    Shanghai or Ningbo
  • Product Details


30khz  Plastic Cutting Machine For Thermoplastic Materials And Textile Materials






Specification:


 Item No  HS-C30
 Frequency  30 kHz
 Power  1000 watt
 Generator  digital
 Cutting blade  Single-edged or Double-edged
 Material of blade  Titanium alloy
 Cutting thickness  Maximum 7 mm
 Net weight  10 KG
 Warranty  1 Year




Description:



The ultrasonic cutting machine transmits energy to the cutting area through high-frequency vibration to generate high temperature. Due to the poor conductivity of plastics and other materials, the heat is concentrated in the cutting area, which makes the cutting area soften rapidly, so as to separate materials. Its advantage is that it will not damage the cutting material and does not need a large cutting force, and can improve the cutting efficiency and quality.



Advantage:


1. No sharp blade and great cutting are required
2. No edge collapse and damage will be caused to the material
3. Easy for operating , easy for installation
4. The cut part will not be destroyed , smooth edge
5. Light weight and easy to carry
6. Digital generator with visible parameters.

7.The cutting edge has fusion effect


Workshop:



CE:



Packing&Shipping:


Shipping Port:Shanghai

Shipping Term:By express,by air,by ocean and so on.

Leading Time:Quick production leading time and fast delivery.Usually 1-3days if we have in stock.




Payment:
