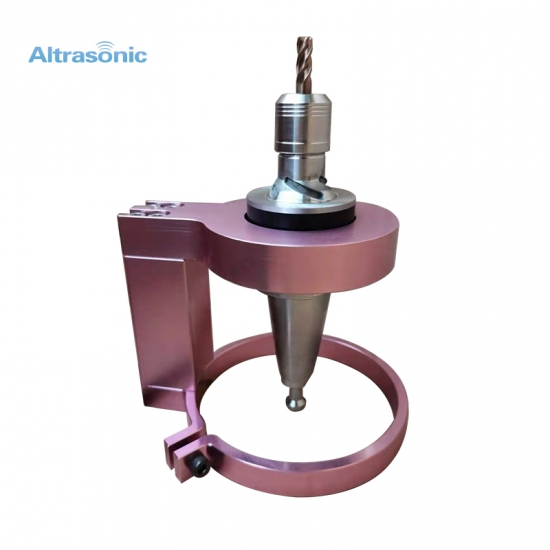

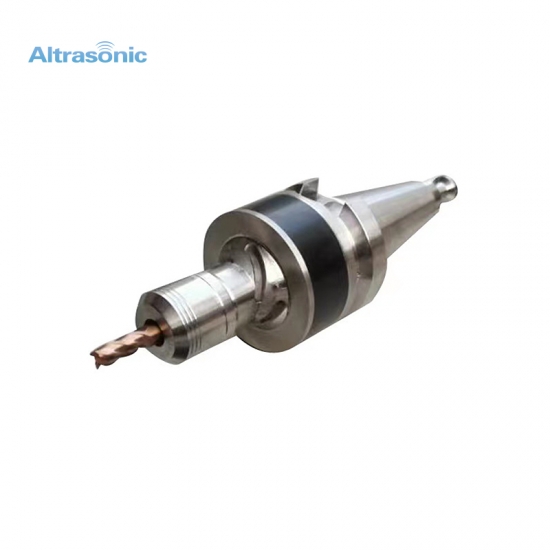

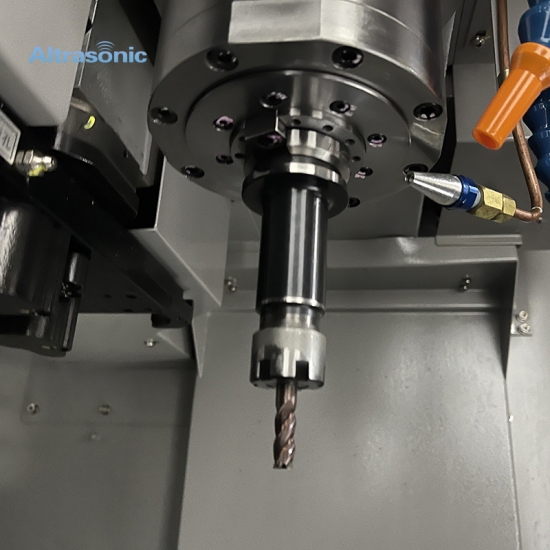

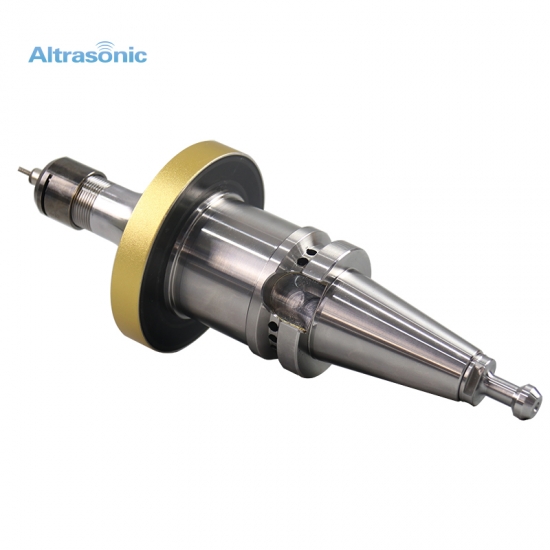

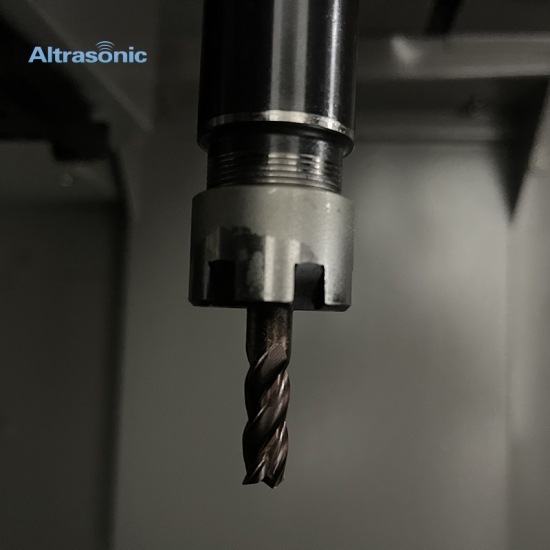

20Khz 500W Ultrasonic Rotary Assisted Processing Device with BT30/BT40 Tool holder Equipped on CNC Machine

20Khz 500W Ultrasonic Rotary Assisted Processing Device with BT30/BT40 Tool holder Equipped on CNC Machine

This device is suitable for finishing of various materials,

 especially fragile rigid materials.

  • Item No.:

    HS-M20-W
  • Payment:

    T/T, PayPal, Western Union
  • Product origin:

    China
  • Color:

    Silver
  • Shipping port:

    Shanghai or Ningbo
  • Lead Time:

    40
  • Product Details


20KHZ 500watt Ultrasonic Rotary Assisted Processing Device with BT30/BT40 Tool holder Equipped on CNC Machine





Specification:


Item No.: HS-M20-W

Frequency: 20kHz

Power: 500Watt

Speed: 10000-22000rpm

Amplitude: 1-10um

Tool interface model: ER-16

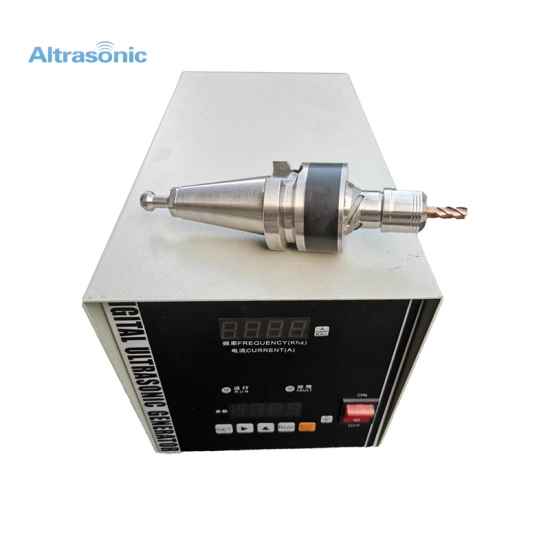

Generator:Digital

Voltage: 220V/50HZ

Spindle: BT40 / BT50 / R8 / HSK63 / ISO / CAT



Principle:


Rotary ultrasonic machining(RUM) is an effective technology for the machining of hard and brittle materials,such as glass,engineering ceramic,and diamond and so on.This technology has high productivity,and can obtain good machining accuracy and surface quality.In the process of investigation,diamond grain and glass are selected to create a machining model.LS-DYNA software is used to simulate the stress variations and the development of micro-cracks in the machining process.Combining the experimental results,studies of the machining mechanism and the analysis on surface quality are also carried out.



Application:


a. Able to process hard materials such as boron carbide, silicon carbide, and silicon nitride;

b. Small hole processing of hard and brittle materials, such as quartz, glass, sapphire, etc.;

c. Internal and external thread processing of brittle materials;

d. Ultrasonic cutting of complex profile and conventional round, square and tube.



Advantages:


1. The processing speed is fast; the processing is convenient and easy;

2. High processing accuracy; good surface quality;

3. The tool wear is small and the service life is long;

4. Wide adaptability to processing materials.



Ultrasonic machining effect:






微信图片_20190828134636No Ultrasonic

With Ultrasonic

1(1)2(1)3(1)
