20khz 30000 rpm ultrasonic milling Drilling processing equipment High-speed processing equipment, Metal Assisted Machining

20khz 30000 rpm ultrasonic milling Drilling processing equipment High-speed processing equipment, Metal Assisted Machining

This ultrasonic milling uses a non-contact rotating device.

  • Item No.:

    HS-M20-W
  • Payment:

    T/T, PayPal, Western Union
  • Product origin:

    China
  • Color:

    Silver and yellow
  • Shipping port:

    Shanghai or Ningbo
  • Lead Time:

    45
  • Product Details


High-tech non-contact Ultrasonic Milling 20khz 30000 rpm Metal Assisted Machining







Specification:


 Item No  HS-M20
 Frequency  20 kHz
 Power  500 watt
 Spindle taper  BT30
 Rotation speed  Maximum 24,000 r/min
 Amplitude  1~10 um

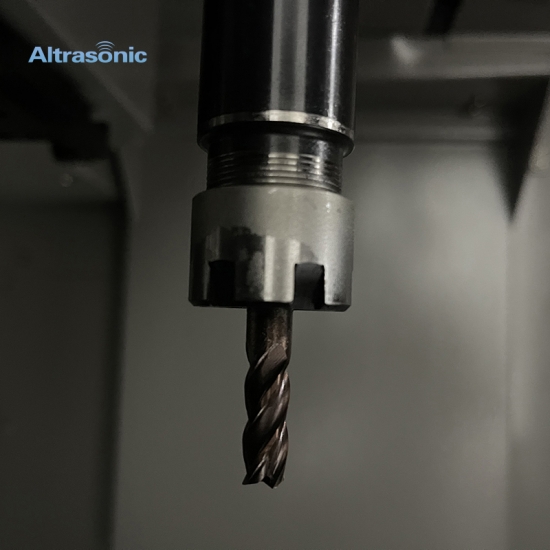

 Tool interface model  ER-16
 Weight  30 KG

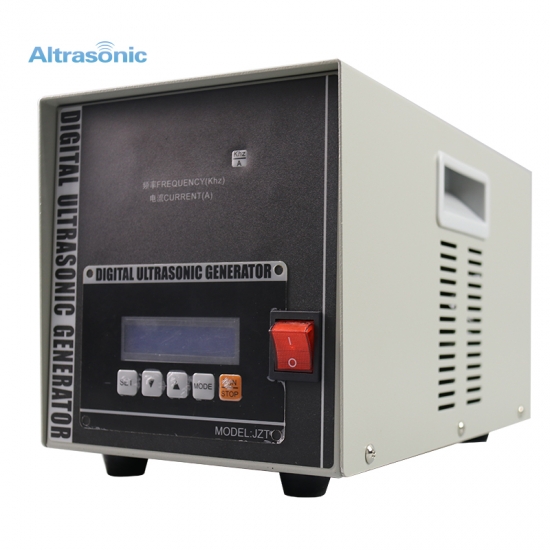

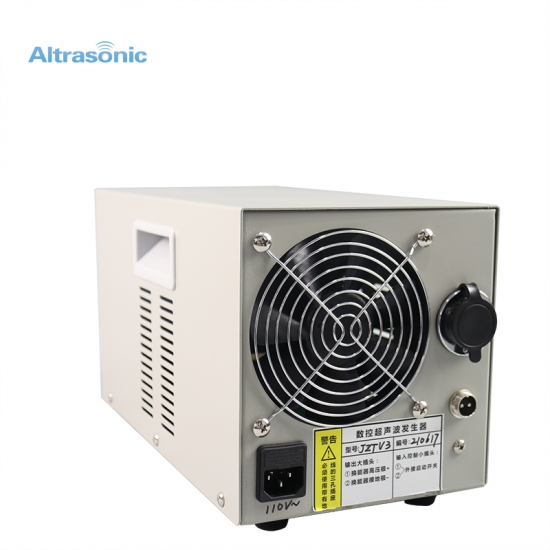

 Generator  Digital




Description:


Rotary ultrasonic machining is a mechanical type of non-traditional hybrid machining process that can be used to process a variety of latest and difficult-to-process materials, including toughness, hard and brittleness, ceramics, composite materials, etc. In rotary ultrasonic machining, the basic material removal phenomenon of ultrasonic machining is combined with traditional diamond grinding, resulting in a higher material removal rate, improved hole accuracy and excellent surface finish.

It is suitable for the precision processing of any hard and brittle materials; especially the drilling, punching, cutting and engraving of glass, gemstones, porcelain, gemstones, semiconductors, ceramics and cemented carbide.



Advantages:


1. Suitable for processing hard metals, stones, diamonds, with high precision

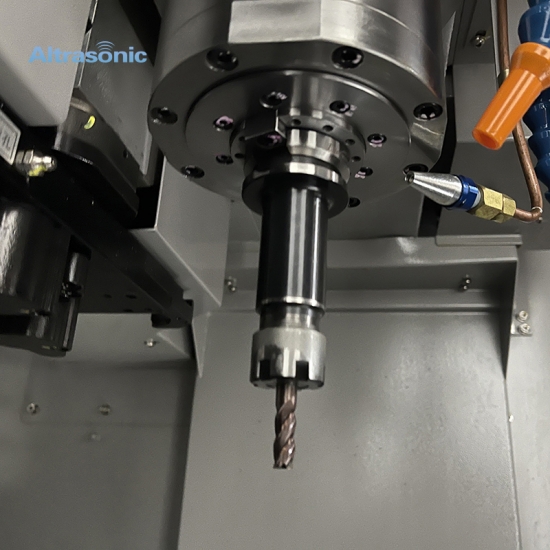

2. Can be installed on CNC machine tools, can be used with a variety of spindle tool holders

3. Diversified tool sizes, the tool head can also be customized according to actual needs




Workshop:


CE:


Shipping:


Payment:
