Home Ultrasonic Sewing Machine

35kHz Sewing Machine

Ultrasonic Seamless Sewing Machine for Thermoplastic Cloth Replacement Needles and Threads

Ultrasonic Seamless Sewing Machine for Thermoplastic Cloth Replacement Needles and Threads

The work method of Seamless sewing part is completely imitating traditional sewing machine.

  • Item No.:

    HSF57B-CB-Y
  • Payment:

    TT, Paypal
  • Market price:

    $13200
  • Price:

    $8600/unit
  • Product origin:

    China
  • Color:

    White
  • Shipping port:

    Shanghai or Ningbo
  • Product Details

Ultrasonic Seamless Sewing Machine for Thermoplastic Cloth Replacement Needles and Threads


Description:



The work method of Seamless sewing part is completely imitating traditional sewing machine. The biggest characteristic is the ultrasonic transmit horn work direction is same with the sewed cloth. Which will make the sewed point of the cloth are even, flat and fastness. Through suitable design, it can reach perfect sewing effectiveness.



Specifications:



Model HSF57B-CB-Y
Frequency 35 KHz
Power 800 W
Rotary Welding Horns Width 12 mm
Power Adjust Method File or Continuous
The Horns Surface Hardness More than HRC56
Rate Electricity 6A
Jointing Width 1-5mm
Jointing Speed  1-10m/min
Working air pressure 3-4kg/cm2
Dimension 1300*600*1100mm



Applications:



Usually used in clothing industry is the ultrasonic lace machine, which is mainly used in cutting and welding cloth. Owing to its transmit horn is a plane, so it only can turn its own geometric center and cant turn the same direction with the cloth. Which make the sewed point of the cloth is unevenness. The transmit horn of Seamless sewing part is a circumference horn, and can turn around . For the cloth, it is jointing with the cloth and working at the same time. The ultrasonic seamless sewing part advance ultrasonic lace machine and its market prospects are very bright.

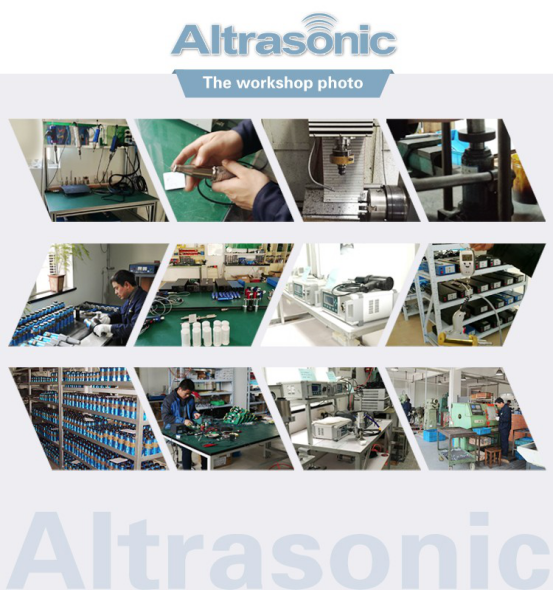

Workshop:

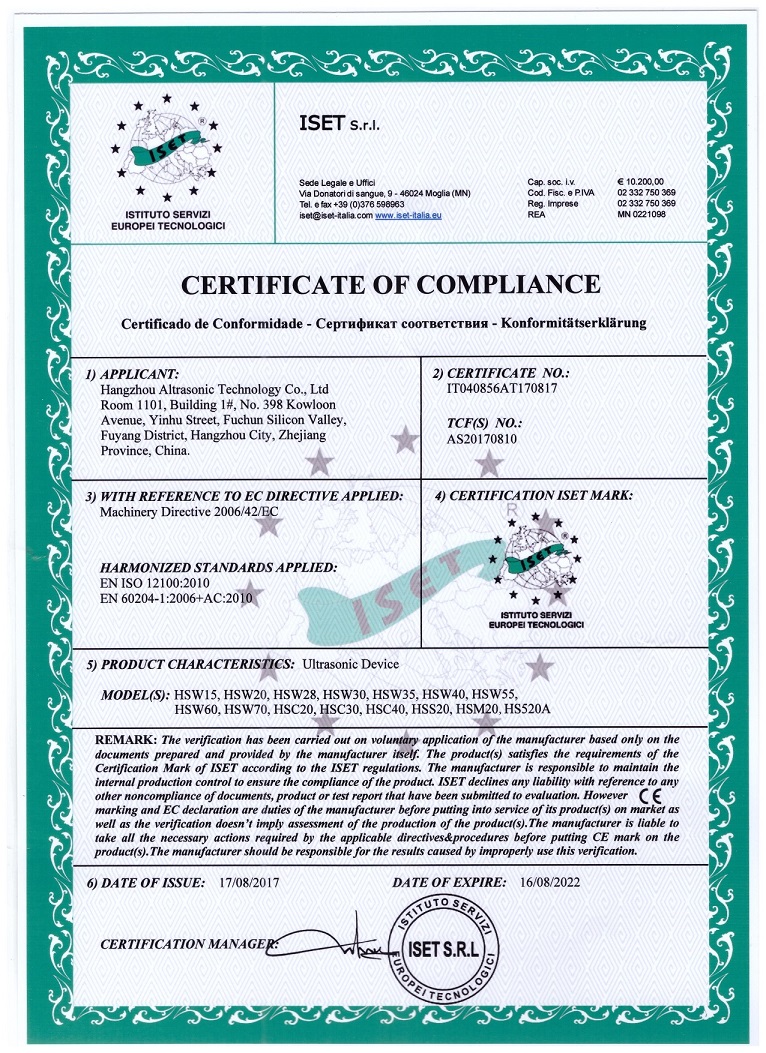

CE Certification:





Packing&Shipping:

Shipping Port:Shanghai

Shipping Term:By express,by air,by ocean and so on.

Leading Time:Quick production leading time and fast delivery.Usually 1-3days if we have in stock.







Payment:
