Ultrasonic Machining

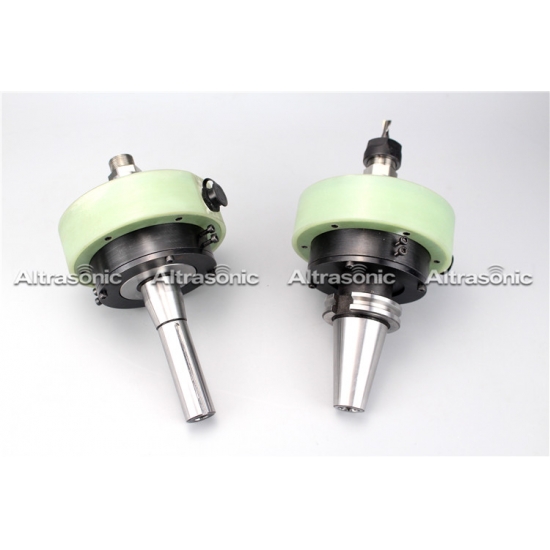

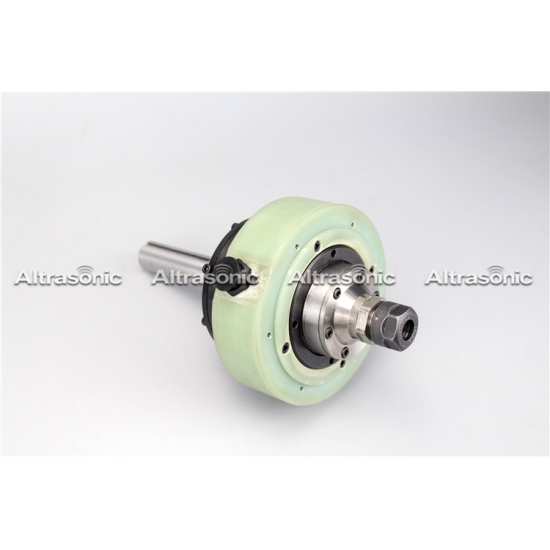

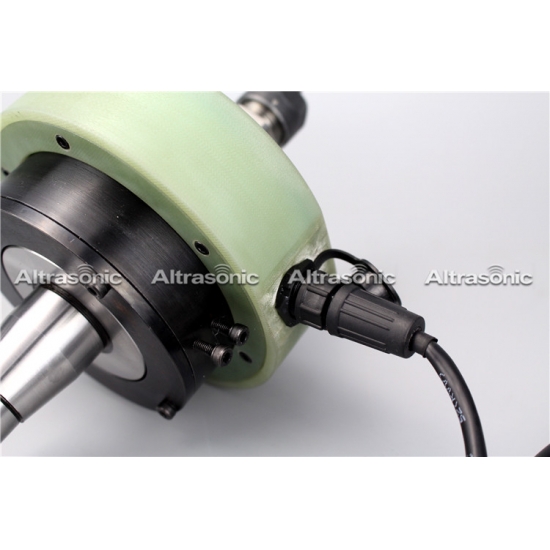

ULTRASONIC MACHINING (USM) for Zircon Oxide and Many More

ULTRASONIC MACHINING (USM) for Zircon Oxide and Many More

ULTRASONIC MACHINING (USM) for Zircon Oxide and Many More

  • Product origin:

    China
  • Product Details

ULTRASONIC MACHINING (USM) for Zircon Oxide and Many More


Technical Parameters:

Resonance point amplitude: 10um or more;

Speed: 3000 r / min or less

Matching tool: carbide end mill head Φ2-Φ13; disk cutter Φ50;

Power: 500W

Frequency 20 Khz/40Khz
Output Power 500 W
Voltage 220 V
Switch Handle or foot switch
Power Adjusting Step or continuous
Working Time Control 24 Hours
Weight 30 KG
Application Ultrasonic drilling
Generator Digital Generator
Length of cable 5M


Ultrasonic Machining

Ultrasonic assisted machining is a recently-developed technique, in which high-frequency (> 20 kHz) vibration is superimposed onto the movement of a standard drill bit in the axial direction, providing advantages including reduced drilling forces (reduction often in excess of 80%) and improved quality of drilled holes when compared to conventional drilling. Ultrasonic assisted drilling also achieves a reduction in entry and exit delamination size, but not in the expected proportion considering the observed reduction of drilling forces. A different mechanical process to that in conventional drilling may be driving the delamination in Ultrasonic assisted drilling, for example dynamic or thermal effects in addition to thrust and torque loads.

Principle:

Ultrasonic machining offers a unique blend of capabilities, quality and material compatibility for the machining of engineered ceramics and advanced technical materials. The process is versatile, offering flexibility to meet a wide range of design requirements, and yields high-quality parts with little or no subsurface damage and no heat-affected zone. These benefits make it a valuable resource for the scientists, engineers and designers who are developing tomorrow’s advanced technologies.


Applications

  • Glass TRIANGULAR CAVITY
  • Sapphire
  • Alumina
  • Ferrite
  • PCD
  • Piezoceramics
  • Quartz
  • CVD Silicon Carbide
  • Ceramic Matrix Composites
  • Technical Ceramics

Workshop:



CE Certification:





Packing&Shipping:

Shipping Port:Shanghai

Shipping Term:By express,by air,by ocean and so on.

Leading Time:Quick production leading time and fast delivery.Usually 1-3days if we have in stock.







Payment:



FAQS

Q:Can your ultrasonic machine assemble to my CNC machine?

A:Yes, you need to inform us the type of tool holder like BT/CTA/ISO/HSKA , or you can provide drawings that we will customized the same on our ultrasonic part to match your CNC machine.



Q:What is the RMP(Round Per Minute) pf your equipment?

A:Normally the max speed of designed equipment is below 3000RMP, if you need faster for better performance, we will do the some adjustment to match the max speed 30000 RPM.



Q:Can i adjust the amplitude for different application?

A:Yes, the amplitude can be adjust by our digital generator, we will send you the detailed instruction after finish the order.


Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

related products
ultrasonic assisted milling machine
Advanced Technology Rotary Ultrasonic Assisted Machining for Hard and Brittle Material

During ultrasonic drilling, the material is removed by micro-grinding or abrasive particle erosion.  The tool oscillates at a frequency of approximately 20 kHz by a piezoelectric sensor and an electric oscillator. The tool forces the abrasive grit to normally impact the work surface in the gap between the tool and the workpiece to machine the work surface.

Non-contact Ultrasonic Machining
Good Surface Finish HSK63 and R8 Ultrasonic Spindle for CNC Ultrasonic Milling & Dilling Machine

During ultrasonic drilling, the material is removed by micro-grinding or abrasive particle erosion.  The tool oscillates at a frequency of approximately 20 kHz by a piezoelectric sensor and an electric oscillator. The tool forces the abrasive grit to normally impact the work surface in the gap between the tool and the workpiece to machine the work surface.

Non-contact Ultrasonic Machining
30000RPM Non-contact Inductive Transmission Ultrasonic Milling and Drilling

During ultrasonic drilling, the material is removed by micro-grinding or abrasive particle erosion.  The tool oscillates at a frequency of approximately 20 kHz by a piezoelectric sensor and an electric oscillator. The tool forces the abrasive grit to normally impact the work surface in the gap between the tool and the workpiece to machine the work surface.

Ultrasonic Super-hard Material Machining
HSK63 R8 BT40 BT50 Spindle Ultrasonic Super-hard Material Machining

Customized Knife Handle Ultrasonic Vibration Spindle With Power Control

ultrasonic assisted milling machine
Rotary Ultrasonic Vibration Assisted Machining With CAT40 Spindle Type

Ultrasonic machining (UM or USM) is a non-thermal, non-chemical and non-electrical process that keeps the chemical composition, material microstructure and physical properties of the workpiece constant. Sometimes referred to as ultrasonic impact grinding (UIG) or vibratory cutting, this process can be used to create a variety of complex features in advanced materials.

Ultrasonic Machining Center
High Precision and High Efficient Process Ultrasonic Machining Center with BT40 and BT50 Spindle

Customized Knife Handle Ultrasonic Vibration Spindle With Power Control

Ultrasonic Drilling Equipment
Non-contact Ultrasonic Drilling Equipment Machining Tungsten Carbide

During ultrasonic drilling, the material is removed by micro-grinding or abrasive particle erosion.  The tool oscillates at a frequency of approximately 20 kHz by a piezoelectric sensor and an electric oscillator. The tool forces the abrasive grit to normally impact the work surface in the gap between the tool and the workpiece to machine the work surface.

ultrasonic assisted milling machine
high power Ultrasonic machining processing system for milling , drilling

Ultrasonic milling has proven to be an effective technique for improving titanium, aluminum and stainless steel workability. Under the action of ultrasonic milling, it has more advantage than the traditional milling. In contrast to the effect of ultrasonic machining aluminum, steel, stainless steel, titanium four metallic materials.Improved surface quality of the most prominent is the titanium and aluminum, can improve the cutting ability of the most prominent is the stainless steel, the quality of the workpiece side is the most significant improvement in steel.
