Impedance Analyzer

Ultrasonic Frequency measuring instrument

Ultrasonic Frequency measuring instrument

Impedance analyzer is the instrument applicable for measuring impedance-vs.-frequency and phase-vs.-frequency characteristics of complex impedance electrical components, as for instance: ultrasonic devices, piezoelectric ceramic and piezoelectric transducers for ultrasonic cleaners and ultrasonic plastic welders, underwater acoustic transducers, sensors, magnetostrictive transducers, and for many other industrial and medical applications.



  • Item No.:

    HS520A
  • Payment:

    T/T, Paypal, Western Union
  • Product origin:

    China
  • Color:

    White and Blue
  • Shipping port:

    Ningbo or Shanghai
  • Product Details

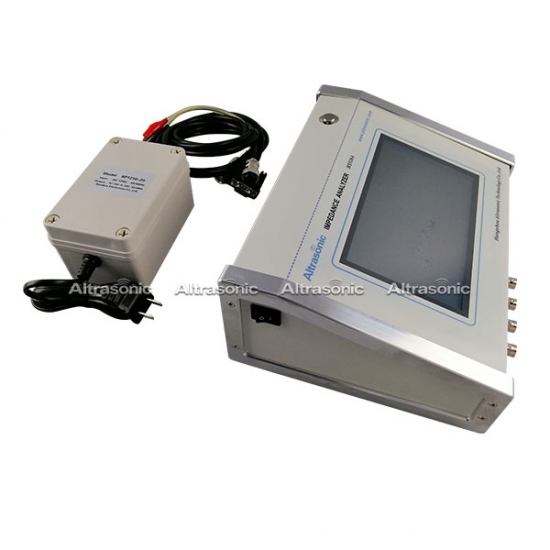

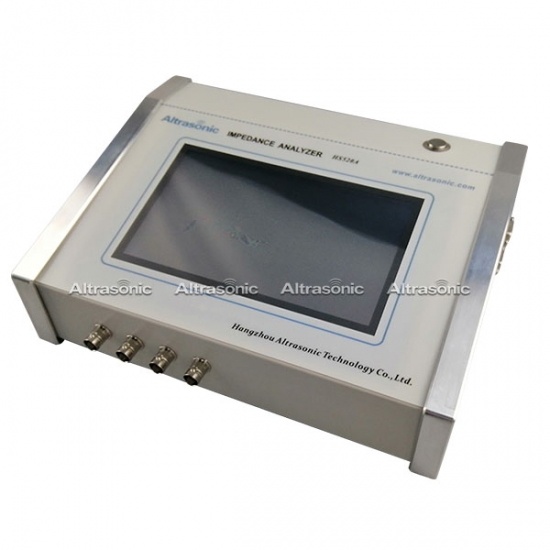

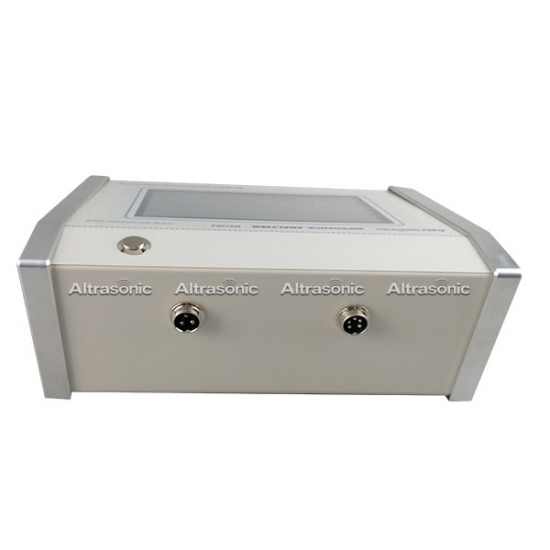

Ultrasonic Frequency measuring instrument




Description:


Ultrasonic Frequency measuring instrument is mainly used for piezoelectricity element impedance analysis and parameter calculation. Before using piezoelectricity element, you need to know its major parameters: resonance frequency Fs, antiresonance frequency Fa, half point power F1 and F2, the max. admittance Gmax, direct capacitance C0, dynamic resistance (R1, C1, L1), free capacitance CT, free dielectric constant 33T, mechanical quality factor Qm, electromechanical coupling factor Keff, plane electromechanical coupling factor Kp and so on.

This instrument can measure admittance characteristic curve of piezoelectricity element (the admittance is equal to reciprocal of impedance) and analyze and extract the above needed parameters. With this instrument, you can gain four characteristic curves of piezoelectricity element (admittance characteristic graph, impedance characteristic graph, admittance coordinate graph, impedance coordinate graph).

Moreover, it is easy to save and print the measured result.

This instrument combines the hardware and PC software for impedance analysis. The

hardware system finishes impedance measure, and the PC software finishes impedance analysis and parameter extraction power.

This instrument is used for guiding piezoelectricity element's testing and using.

It is a synthetic solution of piezoelectricity element's measurement and analysis.

Moreover, it can evaluate and test parameters of the piezoelectricity element.





Application:



ultrasonic plastic welder, ultrasonic cleaner, ultrasonic transducer,

ultrasonic electro machining, underwater acoustic transducer,

ultrasonic sensor, piezoelectric ceramic, parking sensor, medical ultrasonic device, ultrasonic scaling device, ultrasonic horn, ultrasonic welding head, ultrasonic grinder, and ultrasonic emulsor.



Advantage:



1) Obviously improving product quality. Because the graphics of impedance analyzer finds out whether there is unobvious bug inside ultrasonic devices, it can be applied in testing Corp's materials and instructing the production.

2) Rapid measurement speed can reduce human capital tremendously if needful to measure a lot of devices.

3) Advantageous to the Corp's standardization production and technical stabilization.
