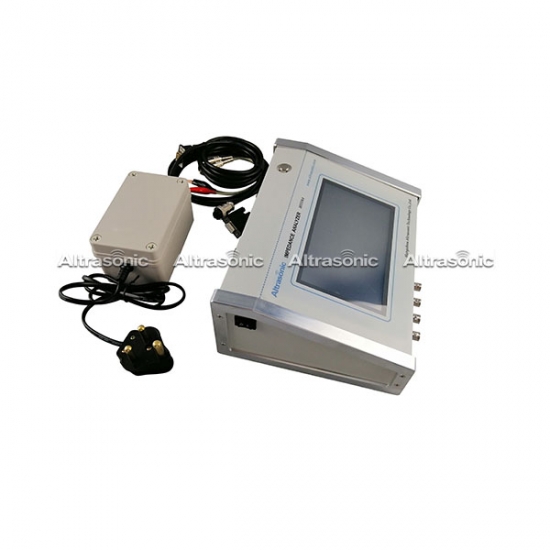

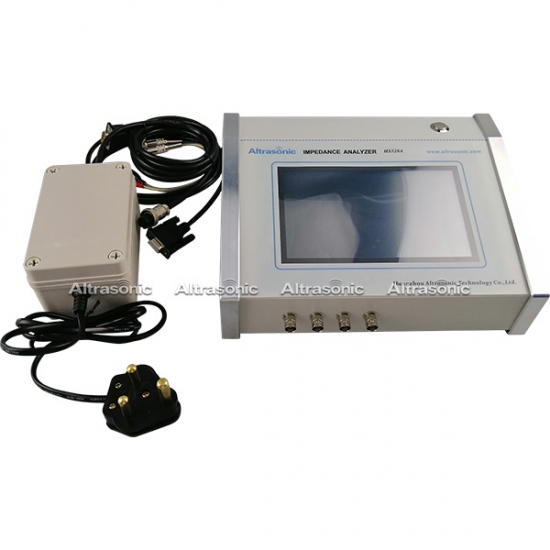

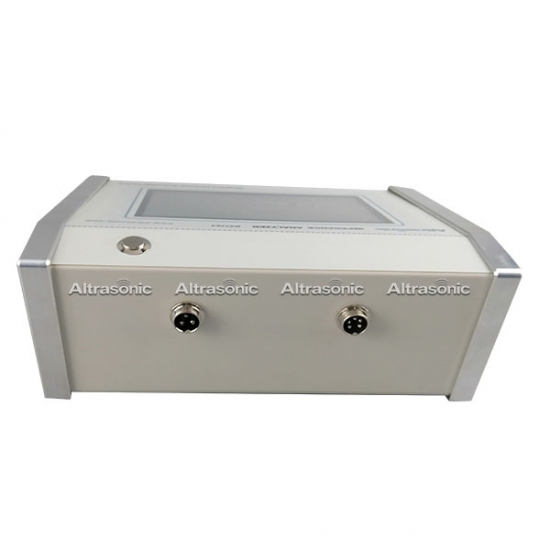

1Khz~5Mhz Portable Ultrasonic Components Measuring For Trz Horn And Ceramic Analysis

1Khz~5Mhz Portable Ultrasonic Components Measuring For Trz Horn And Ceramic Analysis

Impedance Analyzer Applicable for Ultrasonic Device,Piezoelectric ceramics, transducers and all other devices used in piezoelectric and ultrasound.

  • Item No.:

    HS520A
  • Payment:

    T/T, Paypal, Western Union
  • Product origin:

    China
  • Color:

    White and Blue
  • Shipping port:

    Shanghai or Ningbo
  • Product Details


1Khz~5Mhz Portable Ultrasonic Components Measuring For Trz Horn And Ceramic Analysis




Description:



The Measuring instrument which can easily replace much more complex and more complicated, also many times more expensive instruments from Agilent/HP, as for instance: HP Impedance Gain-Phase Analyzer 4294A, Agilent E5100A, Network Analyzer, HP 3563A,Control System Analyzer etc. It is also very easy to use HS520A (by engineers or ordinary production workers).





Specification:



Impedance Analyzer HS520A Newest
Frequency Range 1KHz~500KHz/3Mhz/5Mhz
Basic Accuracy < 0.5%
Scan Speed 5 sec/one pass (equivalent to 600 scan dots)
Frequency Accuracy ±10 ppm
Phase Accuracy 0.15 degree
Temperature Range 10~40 degree Celsius
Impedance Range 0.1Ω~1MΩ
Frequency Step 0.1Hz to Any
Measure Items Resonance Frequency: Fs
Half Power Frequency: F1 and F2
Maximum real admittance at Fs: Gmax
Dynamic Resistance: R1
Anti resonance frequency: Fp
Mechanical quality factor: Qm
Free capacitance: CT
Dynamic inductance: L1
Dynamic capacitance: C1
Static capacitance: Co
electromechanical coupling coefficient: Keff and Kp
Maximum real impedance at Fp: Zmax
Measure Diagram G,B-F
G-B (admittance circle coordinate)
R,X-F
R-X (impedance circle coordinate)
Z,phase-F
Y,phase-F
Z(Logarithm),phase-F
Amplification

piezoelectric ceramic, ultrasonic transducer, power ultrasonic,

ultrasonic weld, ultrasonic clean, ultrasonic sensor

Dimensions : 240mm*190mm*100mm

Size of LCD Screen: 8-inch screen





Application:


* Operation

* Sonotrode tuning

* Test of transducers

* Test of acoustic sets

* Test of piezo ceramics

* Predictive maintenance

Workshop:

 CE Certification:



Shipping:

 Payment:

Warranty:

One year Warranty with none human damage.In this period factory will responsible for repair fix it for free or factory will send the new parts to customer instead of the broken parts for free.After warranty time,factory will repair fix it or send the new parts on cost price



Quality control:

 3 times old test to confirm the products is well quality.

20 technician work together , and learn together , to improve our products.

48 hours working time to test the stability of our product before sending out.
