Cheap and Sample Piezoelectric Transducers Testing Instrumen
Item No.:
HS-520APayment:
T/T, Paypal, Western UnionProduct origin:
ChinaColor:
WhiteShipping port:
Shanghai or Ningbo
Description:

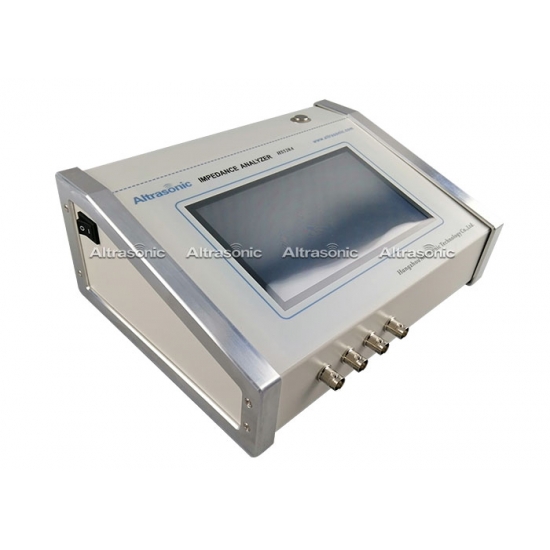

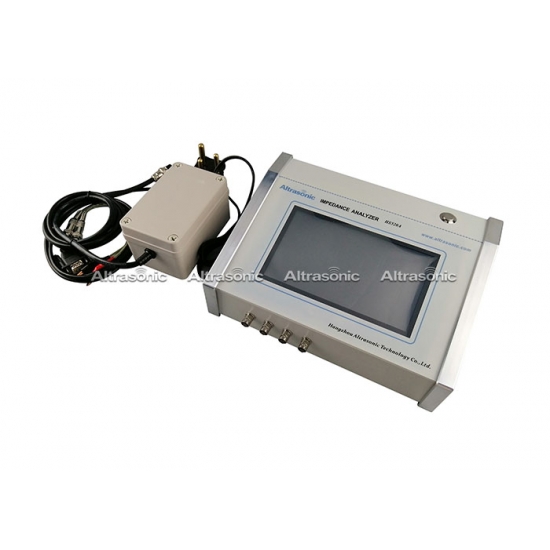

Impedance Analyzer is a high-tech device dedicated to tuning, frequency analysis, and testing of power ultrasonic transducers, horns (sonotrodes), and correlated devices.
With the impedance analyzer, the transducers and sonotrodes become just as measurable and adjustable as any other device.
The impedance Analyzer determines the operation frequency of the item to be tested and its impedance and current with the touch of a button. It’s quick and easy. With this quick and easily retrieved information, the user can perform the quality control of transducers, tuning of sonotrodes and ultrasonic horns, preventive and corrective maintenance of acoustic sets, and much more.
Advantage:
1. Large screen, full-screen touching, making the HS520A both HS70A-P(computer version) operating experience, and no cumbersome with a sense of computer operation.
2. Relies on the new powerful ARM processor data processing capacity, HS520A measurement accuracy is much higher than HS70A-D (with display version), can achieve HS70A-P(computer version) level.
3. Full-screen touch operation is more user-friendly, no longer need HS70A-D(own display version) a large number of physical buttons, thus operating instruments becomes extremely simple, the production size smaller, lighter and more portable.
4. Connecting the computer to operate as HS70V-P. The software is fully compatible, the user are no longer familiar with software operation.
5.HS520A was taken into account the needs of automated production line operation in the development time, reserved the 232interface with PLC communication and IO communication interface (replay input and output)
6. HS520A operation is no longer based on Windows system, with long-term reliable operation capacity in the production line.
Specification:
Impedance Analyzer | HS520A Newest |
Frequency Range | 1KHz~500KHz/1Mhz/3Mhz/5Mhz |
Basic Accuracy | < 0.5% |
Scan Speed | 5 sec/one pass (equivalent to 600 scan dots) |
Frequency Accuracy | ±10 ppm |
Phase Accuracy | 0.15 degree |
Temperature Range | 10~40 degree Celsius |
Impedance Range | 0.1Ω~1MΩ |
Frequency Step | 0.1Hz to Any |
Measure Items | Resonance Frequency: Fs |
Half Power Frequency: F1 and F2 | |
Maximum real admittance at Fs: Gmax | |
Dynamic Resistance: R1 | |
Anti resonance frequency: Fp | |
Mechanical quality factor: Qm | |
Free capacitance: CT | |
Dynamic inductance: L1 | |
Dynamic capacitance: C1 | |
Static capacitance: Co | |
electromechanical coupling coefficient: Keff and Kp | |
Maximum real impedance at Fp: Zmax | |
Measure Diagram | G,B-F |
G-B (admittance circle coordinate) | |
R,X-F | |
R-X (impedance circle coordinate) | |
Z,phase-F | |
Y,phase-F | |
Z(Logarithm),phase-F | |
Amplification | piezoelectric ceramic, ultrasonic transducer, power ultrasonic, ultrasonic weld, ultrasonic clean, ultrasonic sensor |
Dimensions : 240mm*190mm*100mm Size of LCD Screen: 8-inch screen |
Application :
Auto parts manufacturers (maintenance, horn manufacturing and receipt inspection)
Ultrasonic welder manufacturers (tuning process, quality control and horn development)
Ultrasonic cleaner manufacturers (tuning process and quality control)
Medical equipment manufacturers (quality control and receipt inspection)
Healthcare industry (maintenance, horn manufacturing and receipt inspection)
Mattress manufacturers (maintenance and receipt inspection)
Wire dies manufacturers (maintenance and horn manufacturing)
White line manufacturers (receipt inspection)
Footwear manufacturers (maintenance and horn manufacturing)
Underwear manufacturers (maintenance and horn manufacturing)
Fish finder manufacturers (quality control and underwater transducers development)
Eyeglass lenses manufacturers (maintenance of cleaning systems)
Fishing lures manufacturers (maintenance and horn manufacturing)
Water and energy meters manufacturers (maintenance and horn manufacturing)
Mining industry (maintenance and ultrasonic cleaning boxes refurbishing)
Ultrasonic additive industry (maintenance, horn manufacturing and development)
Research groups (piezoelectric and ultrasonic devices development)
R&D departments (product development)
Sensors manufacturers (maintenance, quality control and receipt inspection)
FAQ:
Q: Can this analyzer connect to PC ?
A: Our ultrasonic impedance analyzer can connect to PC operation for storage, you can also check the operation video on our YTB:https://youtu.be/AY16fSjw8ZM
Q:Can data be stored in the storage media (USB Hard Drive... etc.)?
A: At present, it support PC storage, we have reserved USB port and after we update the software,the date can be directly storaged into USB Hard Drive or mobile phone.
Q:How to judge the defects for the ceramic on you analyzer?
A: For piezoelectric ceramics, the merits of the device can be judged directly from admittance circle plots and logarithmic coordinates. If there are delaminations or cracks inside the ceramic plate, the logarithmic curve will appear multi-peaked, and the admittance circle diagram will appear more than one Parasitic small round.
Workshop:
CE:
Warranty:
One year Warranty with none human damage.In this period factory will responsible for repair fix it for free or factory will send the new parts to customer instead of the broken parts for free.After warranty time,factory will repair fix it or send the new parts on cost price
Quality:
3 times old test to confirm the products is well quality.
20 technician work together , and learn together , to improve our products.
48 hours working time to test the stability of our product before sending out.
