Seamless Hand-held Ultrasonic Spot Welding Equipment for shoes

Seamless Hand-held Ultrasonic Spot Welding Equipment for shoes

Ultrasonic welding machine is the use of ultrasonic generator to convert low current frequency to high frequency AC, then the same frequency of mechanical vibration by ultrasonic transducer.

  • Item No.:

    HS-W35
  • Payment:

    T/T, Paypal, Western Union
  • Product origin:

    China
  • Color:

    Blue and Silver
  • Shipping port:

    Shanghai or Ningbo
  • Product Details

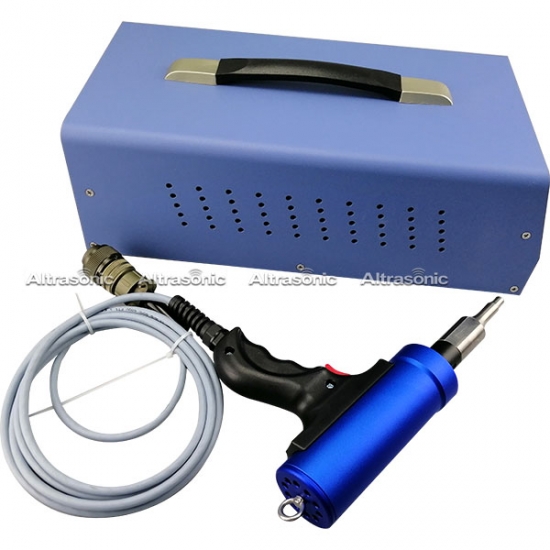

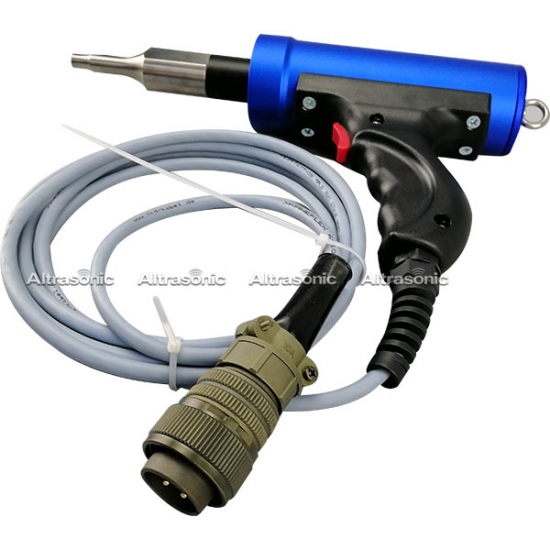

Hand-Held Ultrasonic Welding Equipment For Shoes




Technical Parameters:



Model

HS3505B

Input Voltage

220/110V, 50/60Hz

Weight

9KG

Welding Time

0.01-9.99S

Frequency

35KHz

Style

Hand held

Output Power

500W

Too Head Material

Titanium Alloy

Control Mode

NC

Dynamic Forms

Ultrasonic

Welding Head Stroke

5 mm

Lift Control

Manual

Welding Area

8*8mm

Spot Welding Size

Diameter 1-8mm

Appearance Size

440*120*180mm

Cooling Mode


Air Cooling




Description:


1. This ultrasonic welding machine uses a new generation of ultrasonic welding technology, which greatly shorten the processing time, a few milliseconds can complete the welding.

2. Application of ultrasonic machining, clean, stable and reliable and low energy consumption, ultrasonic energy only in the precise area of the welding will be consumption, efficient and economical, operation no preheating and heat preservation.

3. This ultrasonic welding machine can not only be used to weld hard thermoplastic, but also can process the fabric and film. With the advantages of fast, clean and safe, favored by the majority of manufacturers.

4. This ultrasonic welding machine can be used for welding thermoplastics, we can change the welding head according to customer demand for welding, spot welding, embedding, removal and other processing.

5. This ultrasonic welding machine adopts imported piezoelectric ceramic crystal oscillator, high efficiency, long service life. Normal circulation self-cooled ultrasonic generator, the failure rate is very low.

6. This ultrasonic welding machine can also be used for thermoplastic plastic products of welding, riveting, welding and metal parts and plastic parts between mosaic and side pressure process, low energy consumption, high efficiency, no deformation, no pollution, firm welding, convenient operation.



Ultrasonic Welding Principle:


1. Ultrasonic welding machine is the use of ultrasonic generator to convert low current frequency to high frequency AC, then the same frequency of mechanical vibration by ultrasonic transducer.

2. Mechanical vibration transmitted to the ultrasonic welding joints by the amplitude modulator, the vibrational energy welding joints received transfer to the workpiece to be welded joint. In the region, the energy through friction converted into heat energy, to melt the plastic.

3. After vibration stopped, maintain short-term pressure makes the weldment on artifacts in molecular link way solidification as a whole.



Advantages:


1. High-quality ultrasonic transducer, strong power, good stability.

2. Welding fast, each welding time only 0.01-9.99 seconds.

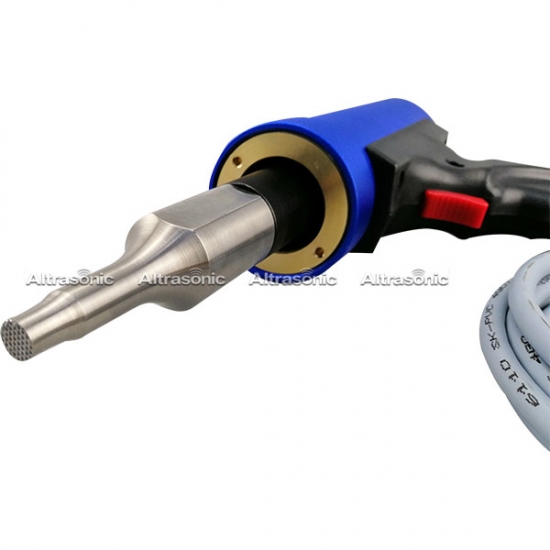

3. Titanium alloy mold, for a variety of environments, difficult to damage.

4. Extended matte plastic handle, protect the transducer damage.

5. Compact design, small space.

6. Low noise, good working environment.

7. Low energy consumption, high efficiency, no distortion, no pollution, welding firm, and convenient operation.

8. Handheld welder, easy control, precision, spot welding preferred.

9. It can be accurately set and quickly adjusted parameters.

10. Metal paint box, beautiful appearance, durable resistance to fall.





Application Area:

This machine adopts high quality elements, smart design, convenient for carrying and moving, reliable performance, easy operation, mainly for spot welding, bonding, riveting, marking, sealing and so on.
