Plastic Welding Hand-Held Ultrasonic Spot Welding Equipment

Plastic Welding Hand-Held Ultrasonic Spot Welding Equipment

Ultrasonic assembly is the method of choice for many applications in the automotive, appliance, medical, textile, packaging, toy and electronics markets, among others. The basic advantages of ultrasonic assembly - fast, strong, clean and reliable welds - are common to all markets.

  • Item No.:

    HS-GW35
  • Payment:

    T/T, Paypal, Western Union
  • Product origin:

    China
  • Color:

    Blue or White
  • Shipping port:

    Ningbo or Shanghai
  • Product Details

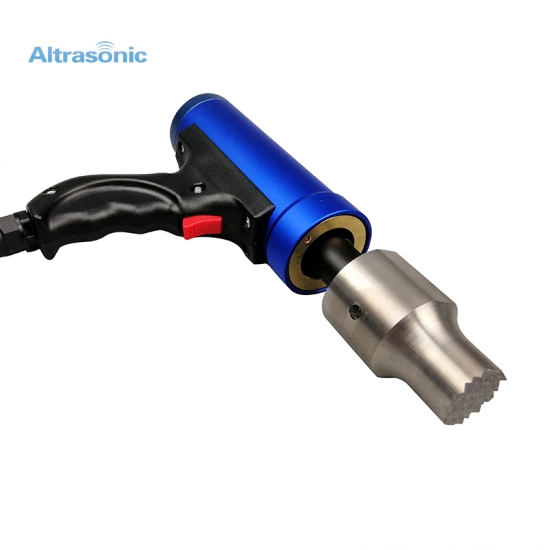

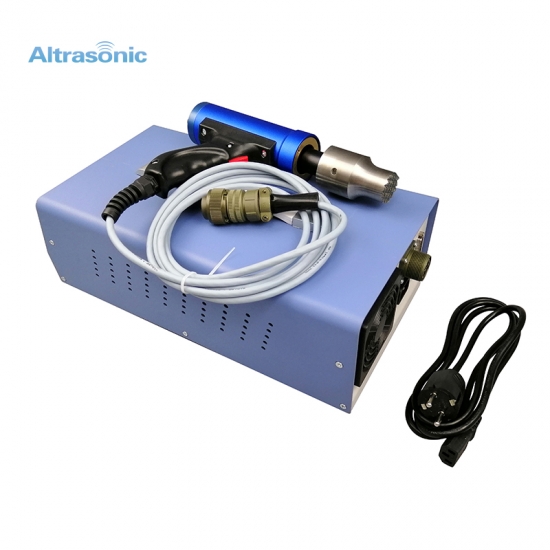

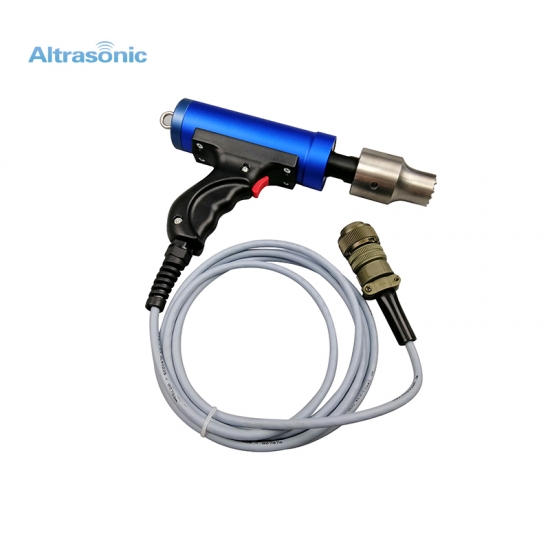

Plastic Welding Hand-Held Ultrasonic Spot Welding Equipment



Description:


Ultrasonic spot welding system is ALTRASONIC latest introduction, the power requirements of xxx watts the application. The ultrasonic spoter can be used with its suitable handheld device or directly connected to the converter / supercharger / speaker stack for automation.

Ergonomics-based ultrasonic spot welders are based on hand-held welders. It is mainly used for ignition riveting, thermoplastic welding and forming. With a modular integrated circuit, the output power, easy to operate. Built-in fully automatic protection circuit to ensure safe and reliable applications, stable and reliable operation.



Specification:


Item No.

HSW20

HSW30

HSW35

HSW40

HSW50

Frequency

20kHz

30kHz

35kHz

40kHz

50kHz

Power

1000W

1200W

1000W

500W

300W-500W

Horn

12mm

10mm

10mm

10mm

10mm

Housing Diameter

44mm

44mm

44mm

44mm

44mm

Weight of Welder

1.0kg

1.0kg

1.0kg

1.0kg

1.0kg



Advantage:


1. Lightweight

Thanks to their plastic housing, the ultrasonic hand welding units are extremely light yet also robust

2. Ergonomic shape

The weight of the ultrasonic hand welding guns is perfectly balanced thanks to their design, making them feel even lighter to handle as a result

3. Service friendly

The converter can be changed over in no time

4. Convenient working

Operating the hand unit is simple, safe, comfortable and intuitive

5. Air cooling

Air cooling for the sonotrode and the converter is pre-integrated in the hand unit and should be used as required



Application:


Ultrasonic assembly is the method of choice for many applications in the automotive, appliance, medical, textile, packaging, toy and electronics markets, among others. The basic advantages of ultrasonic assembly - fast, strong, clean and reliable welds - are common to all markets.

Appliance

In this high-volume market, hermeticity, strength and also cosmetic appearance are important. Applications include: steam iron, pump housing, vacuum cleaner wand, and dishwasher spray arm.

Automotive

Hermetic seals in applications such as lenses, filters and valves. Other applications include: glove box door, instrument cluster, air diverter and mass airflow sensor.

Business

"Clean" assemblies with reduced particulate matter are produced on information storage discs. Other applications include the assembly for ribbon cartridges, and audio and video cassettes.

Consumer

Precision welding, staking and forming operations are used in the manufacture of the Swatch®.

Electrical

Multiple staking and inserting applications are often automated for high-volume production requirements with consistent reliability. Applications include: terminal blocks, connectors, switches (e.g. toggle, dip, rotary quick and diaphragm), and bobbin assemblies.

Medical

Non-contamination and the ability to be operated in a clean room are as important as the strength of the weld. Reliable, repeatable assemblies for critical life-support devices are produced with new capabilities in process control. Applications include: arterial filter, cardiometry reservoir, blood/gas filter, face mask and IV spike/filter.

Packaging

From aseptic packages to toothpaste tubes, the ability of ultrasonic assembly to seal through product contamination in the joint area is a major advantage. In addition to good cosmetic appearance, ultrasonic assembly provides tamper-evident seals for blister packs. Applications include: condiment dispenser, blister package, juice pouch, juice carton and plastic coated paper cups.

Toys

In this highly competitive industry, the elimination of adhesives, screws and solvents, or other consumables is a bonus added to strong, safe, flash-free assemblies.




Workshop:



CE:



Packing&Shipping:


Shipping Port:Shanghai

Shipping Term:By express,by air,by ocean and so on.

Leading Time:Quick production leading time and fast delivery.Usually 1-3days if we have in stock.
