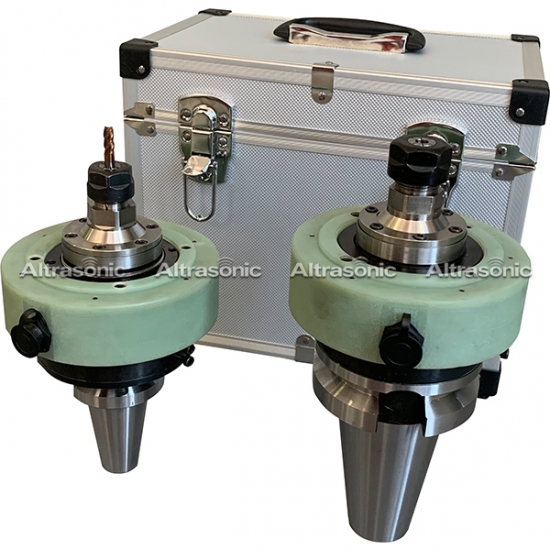

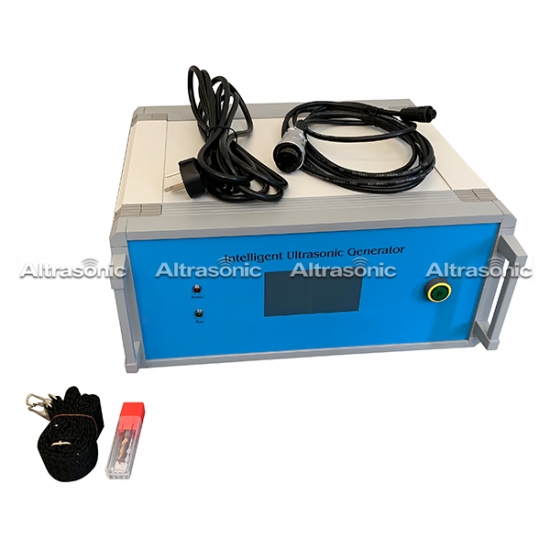

Rotary Ultrasonic Processing for Drilling Carbon Ceramics Quartz Glass



Specification:


Item No.: HS-M20

Frequency: 20kHz

Power: 500Watt

Speed: 20,000RPM

Amplitude: 10um or more

Diameter of Horn:

                          Milling: Φ1-Ф13mm

                          Drilling:Ф2-Ф6mm

Spindle: BT40 / BT50 / R8 / HSK63 / ISO / CAT

(Special spindles are made per request.)



Description:


In the case of ultrasonic processing, the classic manufacturing processes (drilling, milling, etc.) are brought together with the ultrasonic technology. The results are less tool wear, lower processing forces, better machinability and a higher surface quality.

Our ultrasonic tools for ultrasonic drilling, ultrasonic grinding and ultrasonic milling are, due to their technical properties, the solution for the ultrasonic processing of brittle hard materials. The bond hardness, the material of the bond matrix, the grain quality and the diamond concentration are designed so that they can withstand the additionally generated oscillating movement kinematics when using ultrasound.



Application:


Quartz glass

Float glass

Glasses for the optical area

Ceramics

Boron carbides

Carbon

Dental ceramic

Silicon

Silicon carbides

Titanium / steels

Ferrites

Hard metals

Composites

Zirconium oxides

and many more



Advantages:


1. Up to 5 times higher productivity through the use of ultrasound

2. Increase of durability of a galvanic tool by a factor of two

3. Reaching surface qualities of less than Ra = 0.2µ

4. Reduction of the cutting pressure due to smaller wall thicknesses

5. Good re-sharpening effect



Ultrasonic machining effect:
