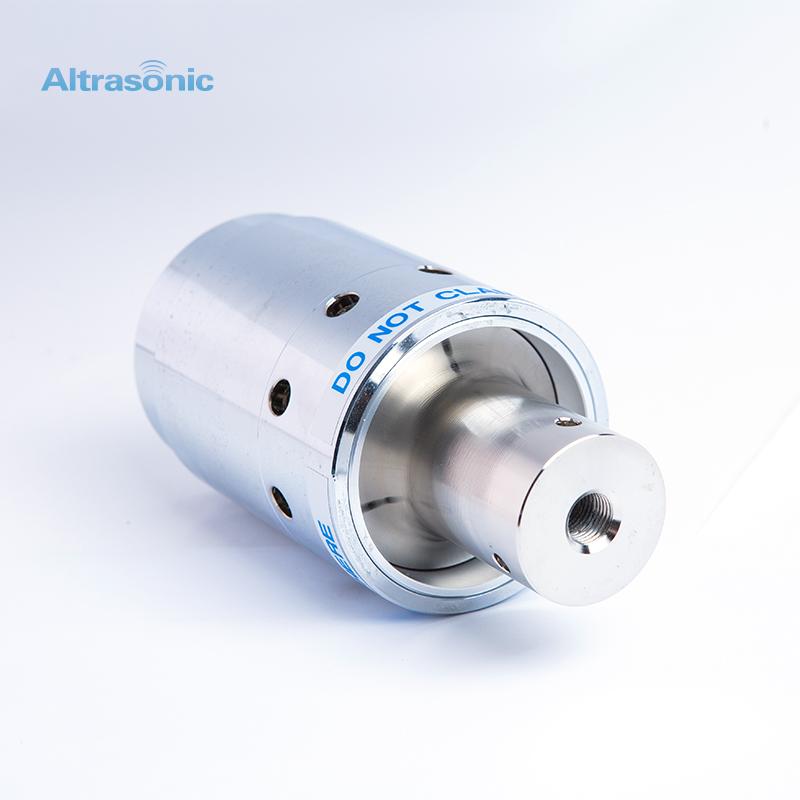

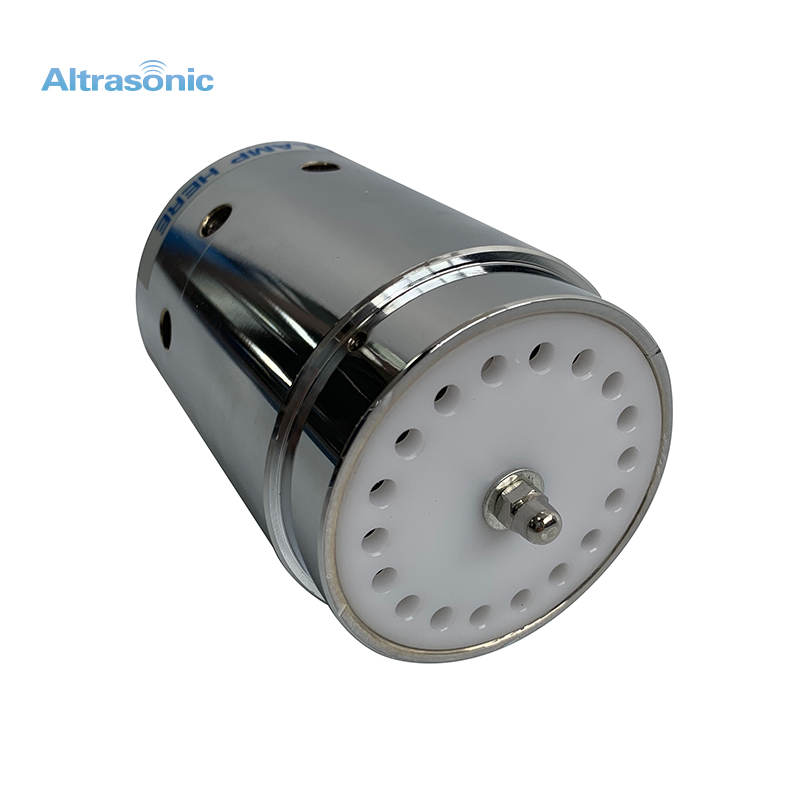

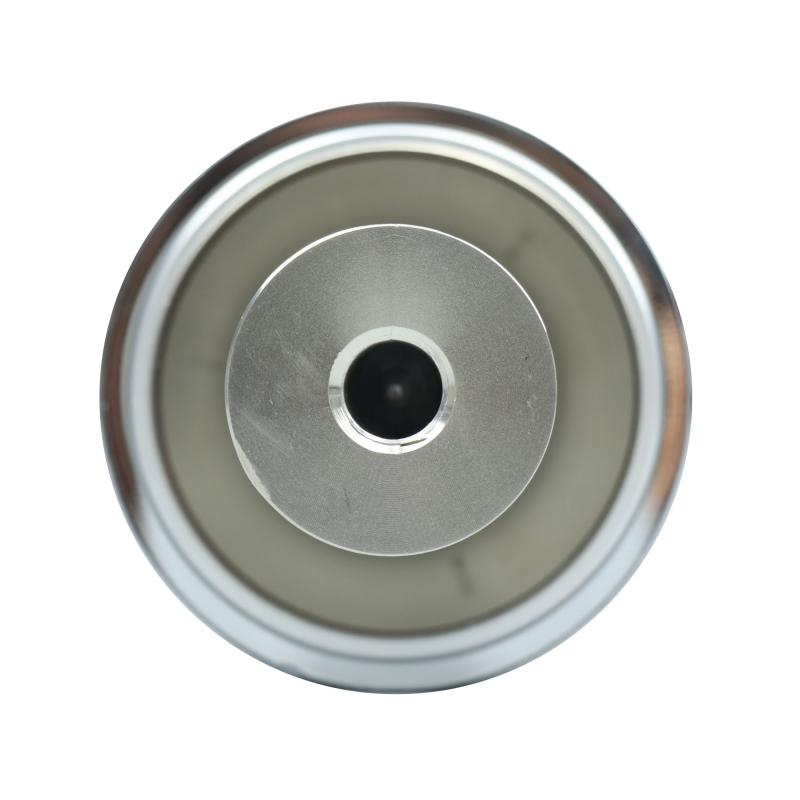

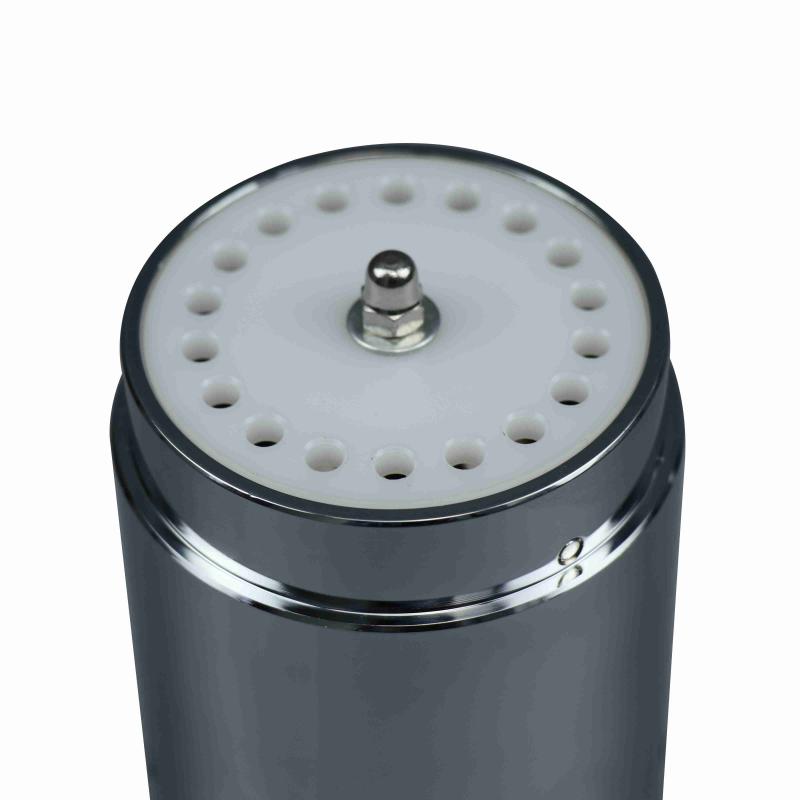

All parts of the transducer are all new. The parts are made from certified materials in tightly controlled manufacturing processes, assembled and tested in a climate-controlled environment using carefully calibrated equipment, then properly aged and re-tested to ensure performance that duplicates the OEM part.
Item No.:
HS-B902Payment:
T/T, Paypal, Western UnionProduct origin:
ChinaColor:
SliverShipping port:
Hangzhou or ShanghaiLead Time:
5
Description:
The transducer is made from a number of ceramic discs separated by thin metal plates, clamped together under high pressure. When an alternating voltage is applied to the
converters (or ceramics), a corresponding electric
field is produced which results in a variation
in thickness of the ceramic elements. This
variation in thickness induces a pressure wave. Because the molecules or atoms of a solid are
elastically bound to one another, the pressure wave
results in a wave propagating through the material
which is reflected by the ends the metal mass of the
converter.
Specification:
Item No
HS-B902
Frequency
20 kHz
Power
1100 watt
Connect screw
1/2-20 UNF
Diameter of ceramic
40 mm
Quantity of ceramic
4 pcs
Resistance
10 Ω
Advantages:
1. We can provide OEM service.
2. One by one testing to ensure that each transducer performance are excellent.
3. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.
4. The quality is comparable to Brason
