The transducer can be used in various machines and various industries. We can provide you the best service and quality.
Item No.:
HS-D41S30Payment:
T/T, PayPal, Western UnionProduct origin:
ChinaColor:
Silver and YellowShipping port:
Shanghai or NingboLead Time:
15

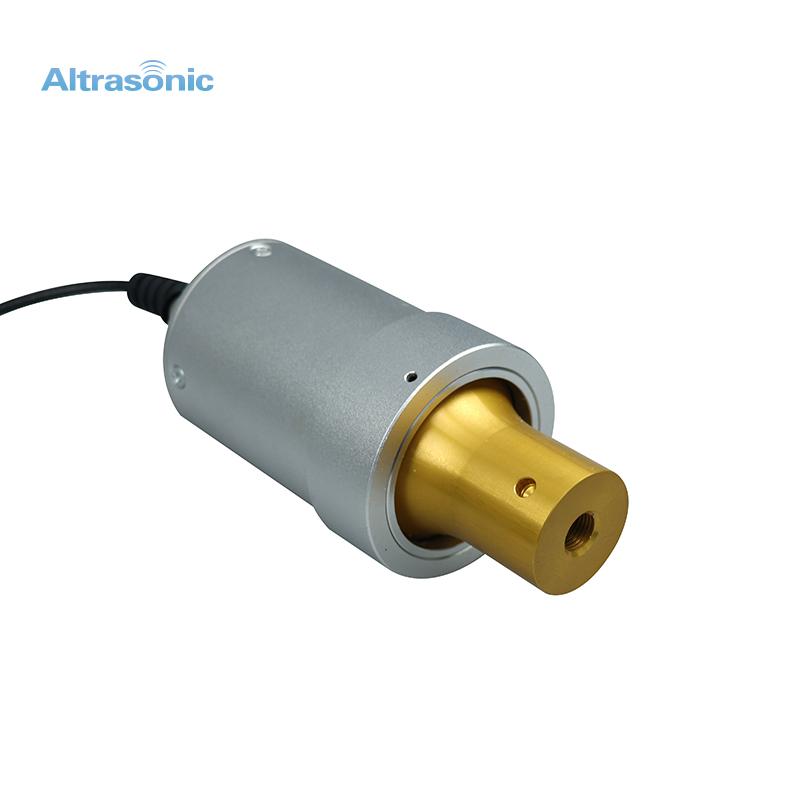

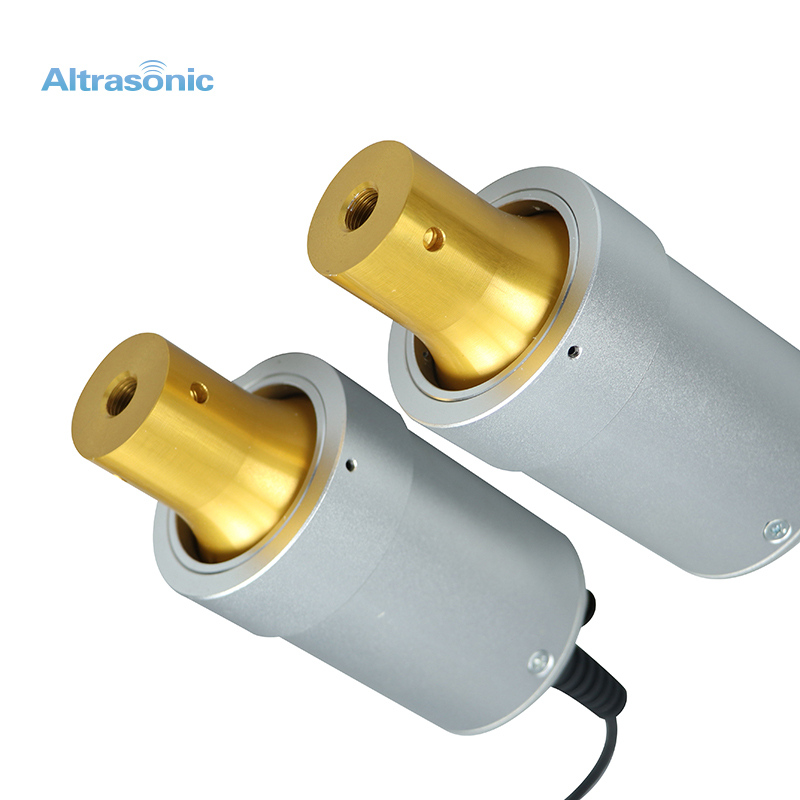

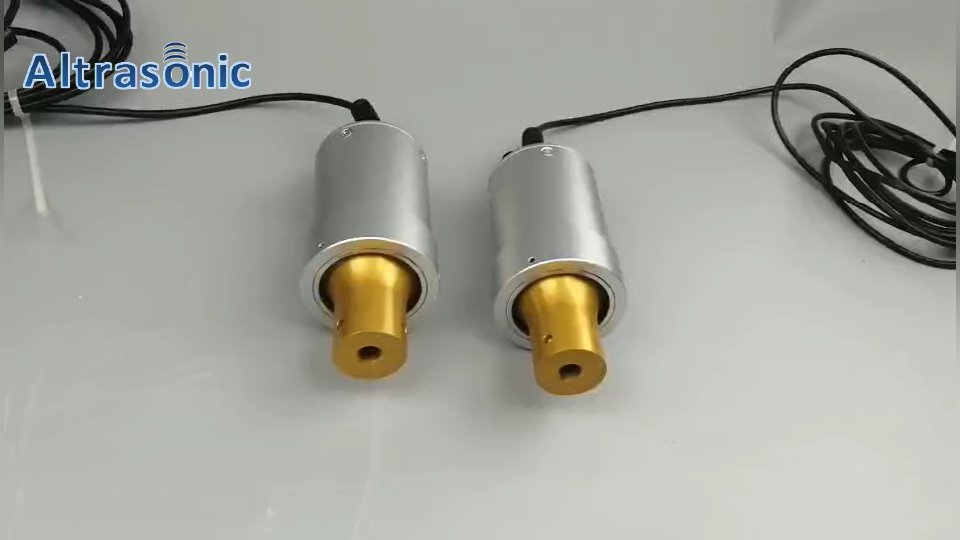

OEM Factory Cheap Good Quality Replacement of Dukane 41S30 Ultrasonic Welding Transducer
Specification:
Item No
HS-D41S30
Frequency
20 kHz
Power
1000 - 3000 watt
Joint bolt
1/2-20 UNF
Diameter of ceramic
50 mm
Quantity of ceramic
4 pcs
Capacitance
11000 pf
Amplitude
20 um
Application
Welding machine
Description:
The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.
Advantages:
1. Once assembled, the transducers are aged before testing and final assembly.
2. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.
3. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.
