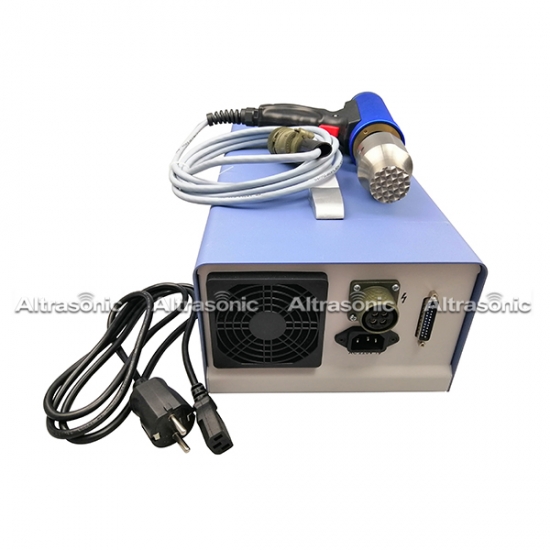

Manual Ultrasonic Soldering Device for Assembly of Compacts and Packaging

Ultrasonic welding of plastic materials creates a molecular bond within the weld seam. Longitudinal vibrations in frequencies of 20 kHz, 30 kHz, and 35 kHz with tool amplitudes between 5 µm and 50 µm are introduced into the plastic materials under the action of force. Ultrasonic vibrations are focused by means of special design of the components or tools.

Item No.:
HS-W35
Payment:
TT, West union, Paypal
Product origin:
China
Shipping port:
Shanghai

Product Details

Manual Ultrasonic Soldering Device for Assembly of Compacts and Packaging

Specifications:

Item No.	HSW20	HSW30	HSW35	HSW40	HSW50
Frequency	20kHz	30kHz	35kHz	40kHz	50kHz
Power	1000W	1200W	1000W	500W	300W-500W
Horn	≤12mm	≤10mm	≤10mm	≤10mm	≤10mm
Housing Diameter	44mm	44mm	44mm	44mm	44mm
Weight of Welder	1.0kg	1.0kg	1.0kg	1.0kg	1.0kg

Description：

Ultrasonic is not limited to only thermoplastic materials. An ultrasonic assembly process can also be used to install threaded brass inserts into molded plastic bosses; stake plastic bosses over metal plates or printed circuit boards; swage over standing walls to entrap another component; perform continuous line seals on thin films and fabrics; seal the ends of collapsible squeeze tubes; accomplish perimeter seals on clam shell packages; spot weld corrugated plastic sheets in the manufacture of boxes; and much more.

Applications In Automobile:

Joining of injection-molded parts

Embedding of membranes

Embedding of leather, nonwoven materials, and textiles

Staking of different types of materials

Production of form-fit joints by swaging

Inserting of bushes and magnets
