Ultrasonic converters, as an inevitable frontend of all ultrasonic systems serve the electro mechanical energy conversion. They transform the electric oscillations in mechanical waves or vice versa and form with it the interface between signal processing and measuring section.
Item No.:
HS-B902Payment:
T/T, Paypal, Western UnionProduct origin:
ChinaColor:
SliverShipping port:
Hangzhou or ShanghaiLead Time:
5
Description:

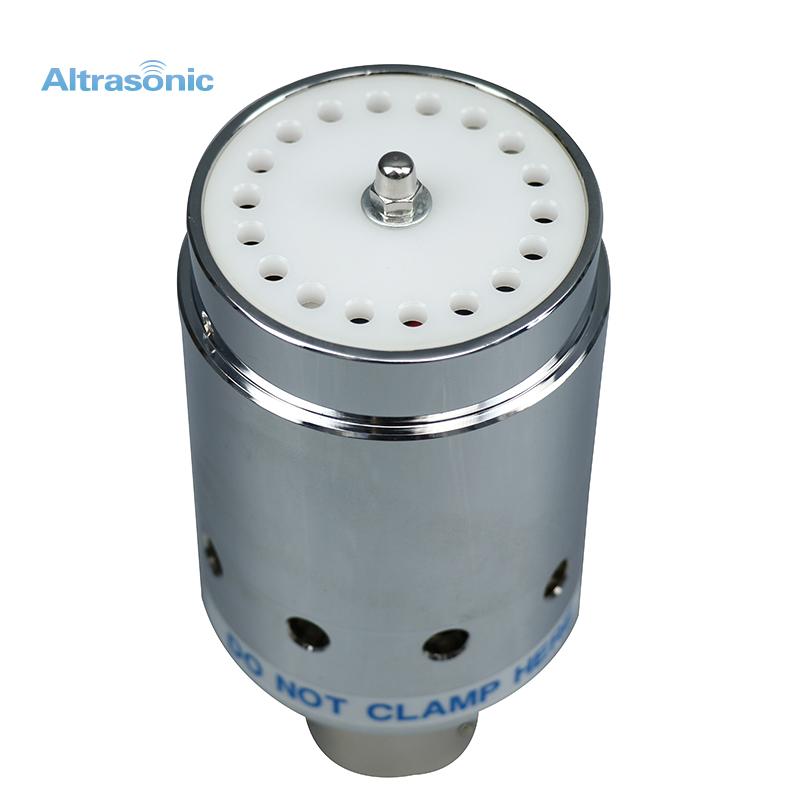

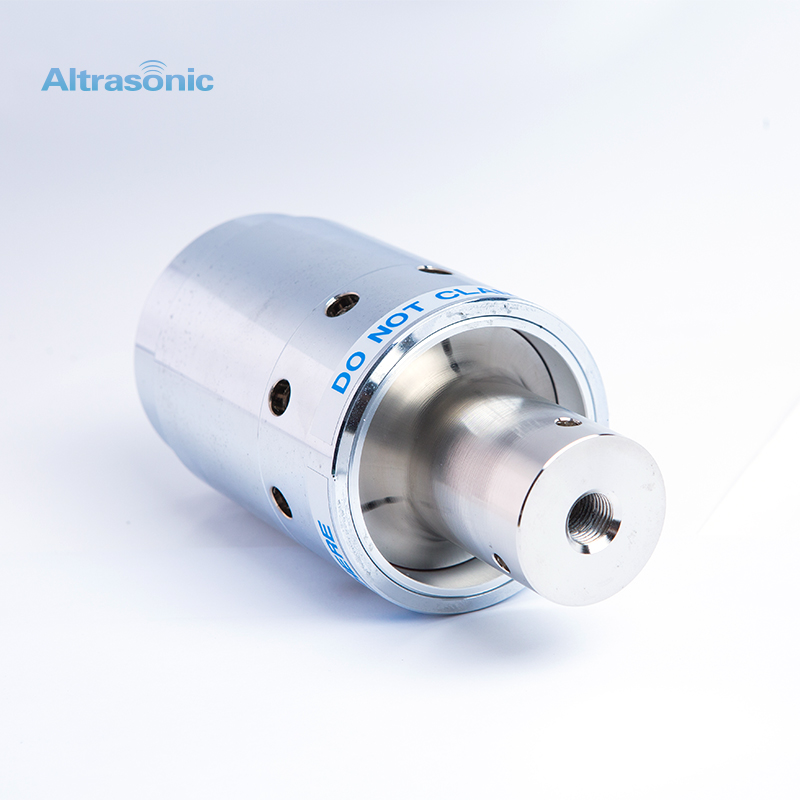

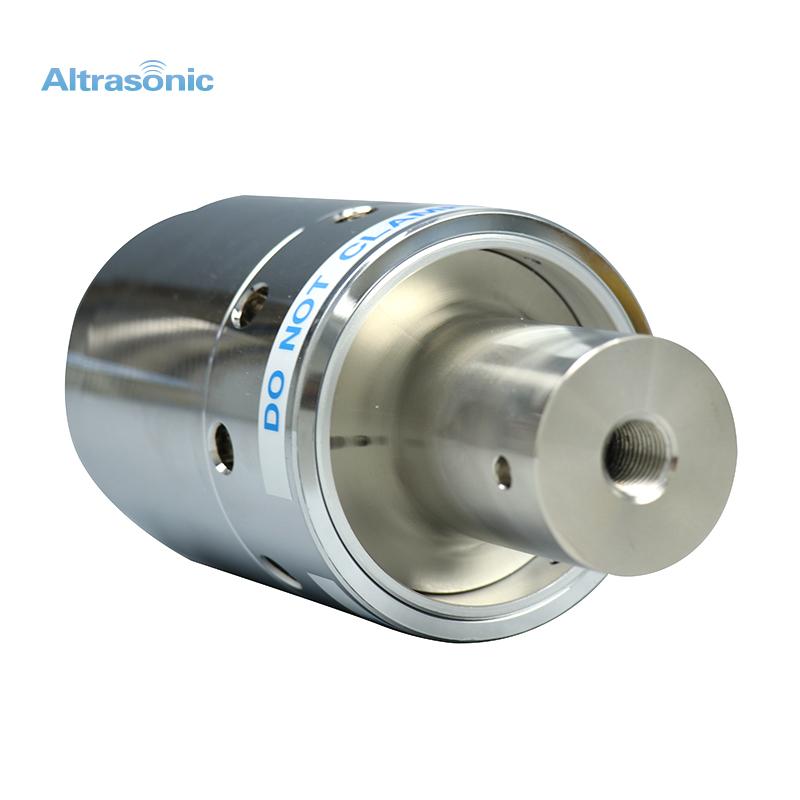

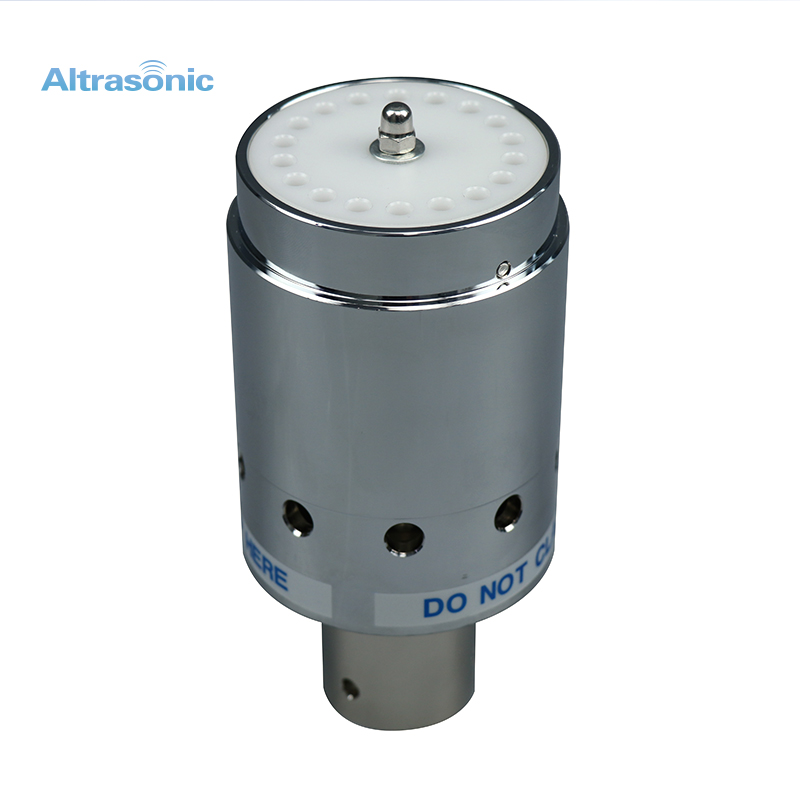

An ultrasonic transducer is a device that converts electrical ultrasonic energy into ultrasound energy, or sound waves above the normal range of human hearing. While technically a dog whistle is an ultrasonic transducer that converts ultrasonic mechanical energy in the form of air pressure into ultrasonic sound waves, the term is more apt to be used to refer to ultrasonic piezoelectric transducers that convert electrical energy into ultrasound.
Specification:
Item No
HS-B902
Frequency
20 kHz
Power
1100 watt
Connect screw
1/2-20 UNF
Diameter of ceramic
40 mm
Quantity of ceramic
4 pcs
Resistance
10 Ω
Advantages:
1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
2. Supply Replacement converter - Including Branson 902, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.
3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.
