Cheap and Sample Piezoelectric Transducers Testing Instrumen
Item No.:
HS520APayment:
T/T, Paypal, Western UnionProduct origin:
ChinaColor:
White and BlueShipping port:
Ningbo or Shanghai

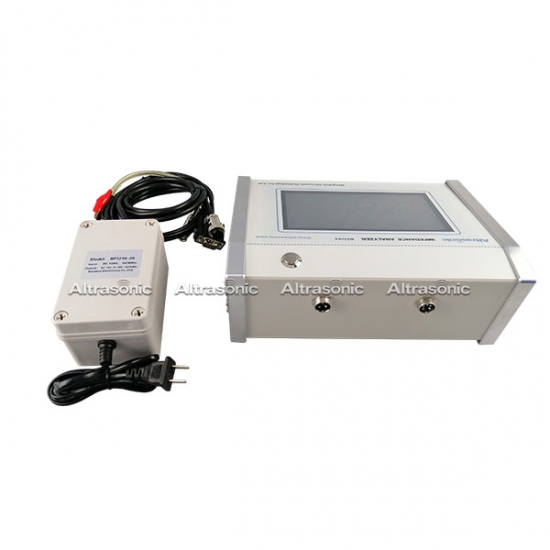

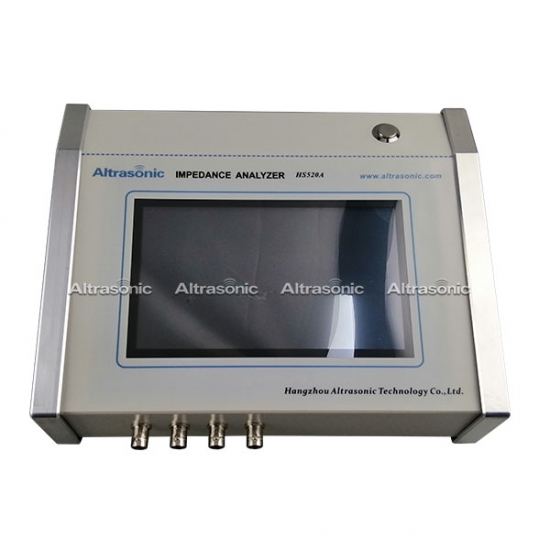

Large Touch Screen Accurate Testing Ultrasonic Horn Tuning Measuring Instrument For Transducer Characteristics
Specification:
| Impedance Analyzer | HS520A Newest |
| Frequency Range | 1KHz～500KHz/1Mhz/3Mhz/5Mhz |
| Basic Accuracy | < 0.5% |
| Scan Speed | 5 sec/one pass (equivalent to 600 scan dots) |
| Frequency Accuracy | ±10 ppm |
| Phase Accuracy | 0.15 degree |
| Temperature Range | 10～40 degree Celsius |
| Impedance Range | 0.1Ω～1MΩ |
| Frequency Step | 0.1Hz to Any |
| Measure Items | Resonance Frequency: Fs |
| Half Power Frequency: F1 and F2 | |
| Maximum real admittance at Fs: Gmax | |
| Dynamic Resistance: R1 | |
| Anti resonance frequency: Fp | |
| Mechanical quality factor: Qm | |
| Free capacitance: CT | |
| Dynamic inductance: L1 | |
| Dynamic capacitance: C1 | |
| Static capacitance: Co | |
| electromechanical coupling coefficient: Keff and Kp | |
| Maximum real impedance at Fp: Zmax | |
| Measure Diagram | G,B-F |
| G-B (admittance circle coordinate) | |
| R,X-F | |
| R-X (impedance circle coordinate) | |
| Z,phase-F | |
| Y,phase-F | |
| Z(Logarithm),phase-F | |
| Amplification | piezoelectric ceramic, ultrasonic transducer, power ultrasonic, ultrasonic weld, ultrasonic clean, ultrasonic sensor |
Dimensions : 240mm*190mm*100mm Size of LCD Screen: 8-inch screen |
|
Description:
The Ultrasonic Impedance Analyzer is a high-tech device dedicated to tuning, frequency analysis and testing of power ultrasonic transducers, horns (sonotrodes) and correlated devices. It is for these elements as an oscilloscope is for the electronics.
With the analyzer, the transducers and sonotrodes become just as measurable and adjustable as any other device.The Analyzer determines the operation frequency of the item to be tested and its impedance and current with the touch of a button. It’s quick and easy. With this quick and easily retrieved information, the user can perform the quality control of transducers, tuning of sonotrodes and ultrasonic horns, preventive and corrective maintenance of acoustic sets and much more
Advantage:
• Practicality and ease of use. No need for ultrasonic expertise.
• Allows the quality control of ultrasonic transducers reducing technical assistance.
• Makes fast and accurate manufacturing of sonotrodes possible.
• Affordable cost.
• Reduces ultrasonic equipment maintenance costs because it allows preventive maintenance.
Application :
* Operation
* Sonotrode tuning
* Test of transducers
* Test of acoustic sets
* Test of piezo ceramics
* Predictive maintenance
Previous :
Impedance Analyzer For Ultrasonic TransducerNext :
Cheap and Sample Piezoelectric Transducers Testing InstrumentIf you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Categories
New Products
The new generation HS-520A series impedance analyzer is mainly used for impedance analysis and testing of ferroelectric crystals, piezoelectric ceramics, piezoelectric crystals, ultrasonic transducers, etc. It is a frequency sweep and impedance measurement analysis of piezoelectric devices and devices. The value-for-money solution makes it quick and easy to test the parameters of a piezoelectric device.
The new generation HS-520A series impedance analyzer is mainly used for impedance analysis and testing of ferroelectric crystals, piezoelectric ceramics, piezoelectric crystals, ultrasonic transducers, etc.
Impedance analyzer is the instrumen essential in every production of ultrasonic equipment for components measurements and qualificaion and for resonant frequencies measurements.
Impedance analyzer is the instrument applicable for measuring impedance-vs.-frequency and phase-vs.-frequency characteristics of complex impedance electrical components, as for instance: ultrasonic devices, piezoelectric ceramic and piezoelectric transducers for ultrasonic cleaners and ultrasonic plastic welders, underwater acoustic transducers, sensors, magnetostrictive transducers, and for many other industrial and medical applications.
Impedance analyzer is the instrument applicable for measuring impedance-vs.-frequency and phase-vs.-frequency characteristics of complex impedance electrical components, as for instance: ultrasonic devices, piezoelectric ceramics and piezoelectric transducers for ultrasonic cleaners and ultrasonic plastic welders, underwater acoustic transducers, sensors, magnetostrictive transducers, and for many other industrial and medical applications.
A horn analyzer is an instrument used to determine the resonance and anti-resonance frequencies of ultrasonic parts such as transducers, sonotrodes and acoustic sets, which are used in ultrasonic welding, cutting, cleaning and other industrial applications. In addition, digital horn analyzers are able to determine the electrical impedance of piezoelectric materials.
Piezoelectric ceramics, transducers, ultrasonic cleaning machines, ultrasonic plastic welding machine, underwater acoustic, magnetostrictive materials, ultrasonic grinder, ultrasonic atomization , reversing radar, ultrasonic ranging, phacoemulsification , ultrasonic motors, and all other devices used in piezoelectric and ultrasound.
Impedance Analyzer Applicable for Ultrasonic Device,Piezoelectric ceramics, transducers and all other devices used in piezoelectric and ultrasound.
