The ultrasonic homogenizer realizes the emulsification of oil and water, the emulsification of water and oil, and the homogenization of the mixing of dispersed phase and continuous phase through its "cavitation effect". This is an advanced sonochemical method that can replace traditional emulsification Processes such as propellers and colloid mills etc.
Item No.:
HS-S2010-PPayment:
T/T, Paypal, Western UnionProduct origin:
ChinaShipping port:
Shanghai or Ningbo

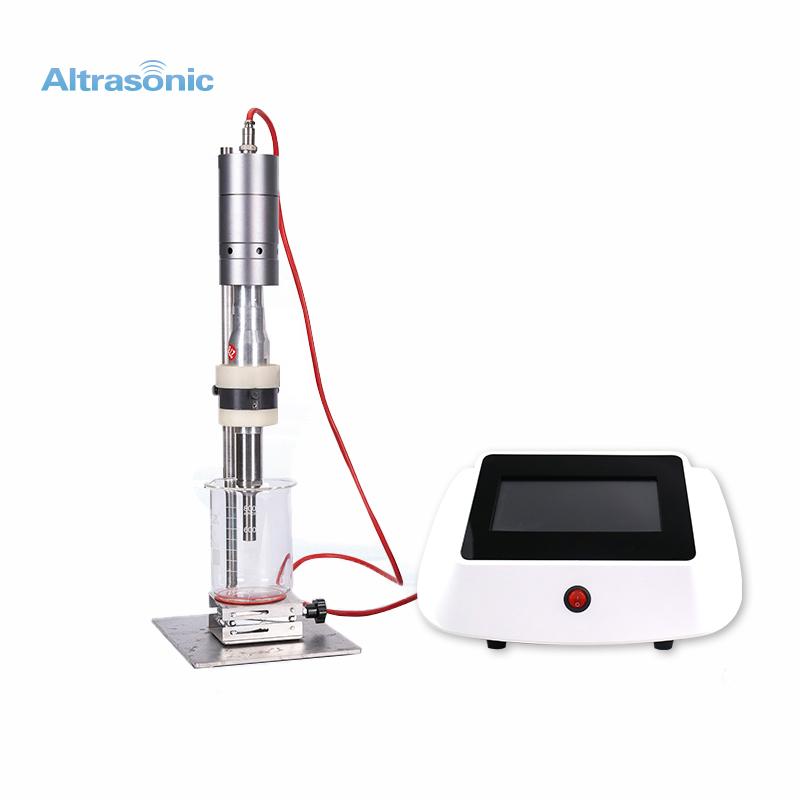

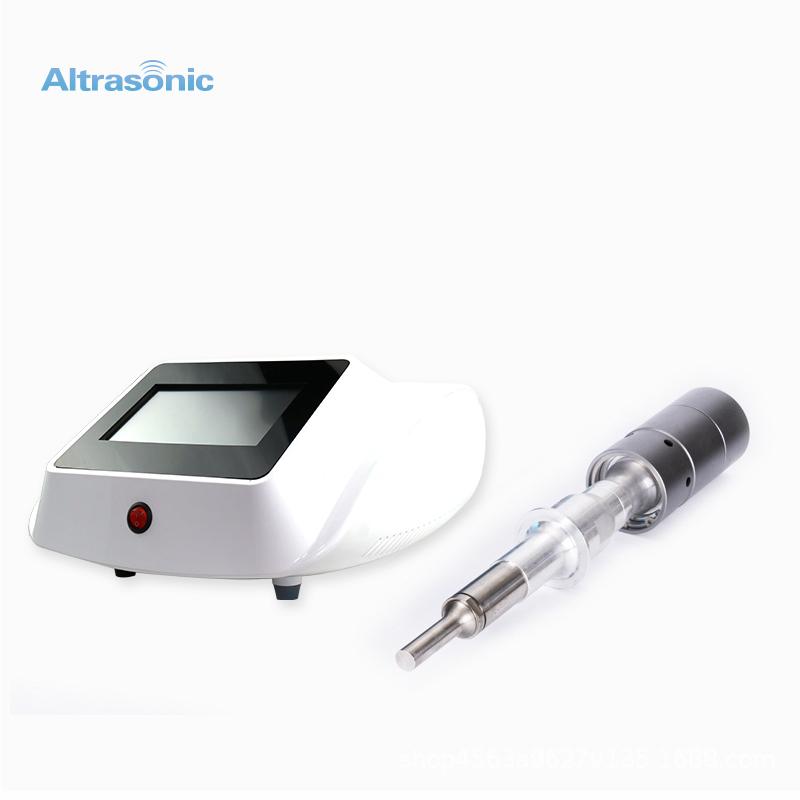

HS-S2010-P 20khz Ultrasonicator Laboratory Sonicator Probe Plant Extraction Ultrasonic Homogenizer
Specifications:
Item No
HS-S2010-P
Frequency
20kHz
Power
1000W
Timer
1S～99H can be set
Temperature setting
0-300°C, 1°C increments
capacity
500mL-3L
Description:
Ultrasonic vibrating rod is also known as ultrasonic homogenizer, ultrasonic cell pulverizer, extractor, disperser, homogenizer and emulsifier; It is one of the common equipment for sample pretreatment in the laboratory; It is suitable for processing trace and small amount of liquid samples, and is widely used in: CHIP analysis, sewage treatment (COD degradation), environmental science (extraction of soil organic matter), pharmaceutical (Chinese herbal medicine and plant extraction), life science (cell wall breaking extraction and crushing), composite material preparation (nano material dispersion), homogenization (accelerated dissolution, chemical reaction synthesis, oil-water emulsification)
Feature:
1. Automatic resonant point and power control, no need to adjust the energy manually.
2. On/off pulse timer: to ensure high intensity processing of temperature sensitive samples, on and off cycles can be set from 1 second to 99 minutes.
3. Sample overload and over temperature protection device.
4. Automatic frequency tracking, automatic fault alarm.
5. The equipment is equipped with temperature sensor, which can conduct temperature test on samples in real time
6. Sample overload, over-temperature and fault automatic alarm protection device

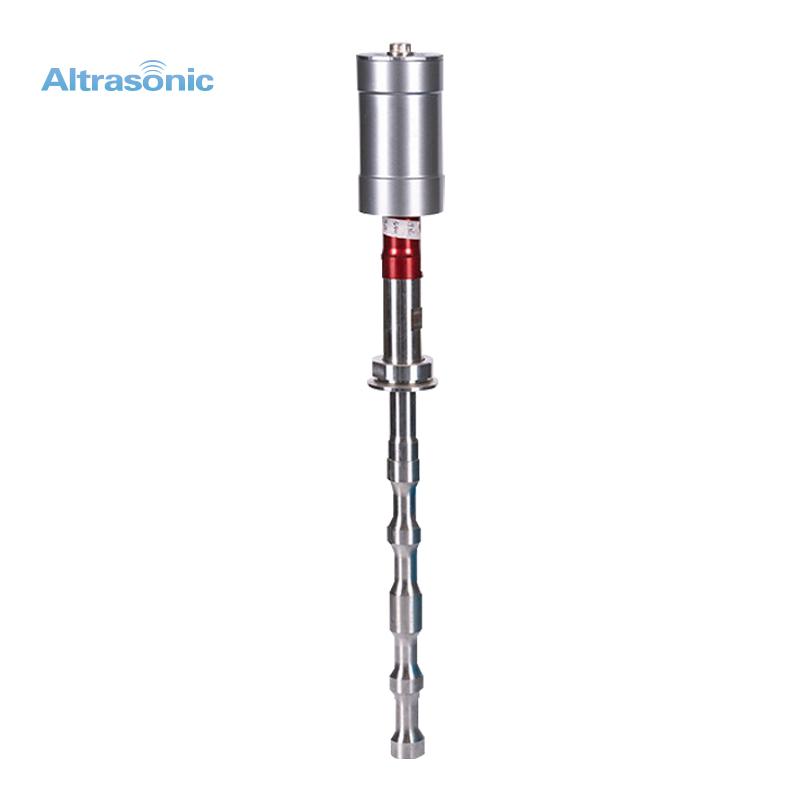

7. The three-dimensional exponential ultrasonic probe design is far more efficient than the traditional probe design and reduces the loss of the horn
8. The continuous pulse mode switch is independent, with three modes of continuous, pulse and timed continuous ultrasound
Workshop:
CE:
Packing&Shipping:
Shipping Port:Shanghai
Shipping Term:By express,by air,by ocean and so on.
Leading Time:Quick production leading time and fast delivery.Usually 1-3days if we have in stock.
Payment:
Previous :
HS-S2010-P Lab Ultrasonic Chemical Liquid Processor Ultrasonic Processing Equipment Ultrasonic Homogenizer ProcessorNext :
HS-S2015 Lab Ultrasonic Chemical Liquid Processor Ultrasonic Processing Equipment Ultrasonic Homogenizer ProcessorIf you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Categories
New Products
Ultrasonic pulverizer is a kind of multi-functional and multi-purpose instrument that uses strong ultrasound to produce cavitation effect in liquid and ultrasonically treat substances. It can be used for breaking animal and plant tissues, cells, bacteria, and spores. To emulsify, separate, disperse, homogenize, extract, degas, clean and accelerate chemical reactions. This machine is widely used in teaching, scientific research and production in the fields of biochemistry, microbiology, medicinal chemistry, surface chemistry, physics, zoology, agronomy, medicine, pharmacy, etc.
The phenomenon of cavitation using power ultrasound to accelerate and control chemical reactions, increase the reaction rate and initiate new chemical reactions is called ultrasonic chemistry.
Ultrasonic homogenizer can make molecules from micron to nanoscale. It's used for oil-water emulsification, solid-liquid dispersion, cell diffusion.
In the generation and application of nano-scale materials, ultrasound is a very effective processing method.
The ultrasonic spot welding system is a very efficient and environmentally friendly mask ear band welding machine. The user can adjust the welding time according to the thickness of the welding mask. And the operation is very simple.
Mixer Type:Homogenizer Barrel Volume (L):0.015---0.2 Material Processed:Chemicals, Medicine Max. Loading Volume (L):0.2 L Max. Loading Capacity:200ml Weight (KG):3 KG Material:Ti Condition:New Application:Ultrasonic extraction and cell lysis, Machinery Place of Origin:Zhejiang, China Brand Name:Altrasonic Voltage:85~260v Dimension(L*W*H):147mm*42mm*42mm Power (kW):0.15 kW Warranty:1 Year Key Selling Points:Portable design Applicable Industries:Manufacturing Plant Showroom Location:None Marketing Type:New Product 2023 Machinery Test Report:Provided Video outgoing-inspection:Provided Warranty of core components:1 Year Core Components:Motor Function:Stable Type:Automatic Ultrasonic Frequency:30KHZ Feature:High Working Efficiency Item:Ultrasonic Homogenize Certificate:CE Certificate Approve
Mixer Type: Homogenizer Barrel Volume (L): 150uL-3000mL Material Processed: Chemicals, Food, Medicine, Graphene Max. Loading Volume (L): 3 L Max. Loading Capacity: 3L Weight (KG): 6.8 KG Material: Ti Condition: New Product Type: Laboratory Supplies Application: Homogenizer, Emulsifier, Cell Disruptor Additional Capabilities: Sound insulation, Touch Screen Control, Variable Power Place of Origin: Zhejiang, China Brand Name: Altrasonic Voltage: 85~260V Dimension(L*W*H): 320mm*268mm*445mm Power (kW): 1.5 kW Warranty: 1 Year Key Selling Points: Sound insulation Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Energy & Mining, Food & Beverage Shops, Other, Laboratory Showroom Location: None Marketing Type: New Product 2023 Machinery Test Report: Provided Video outgoing-inspection: Provided Warranty of core components: 1 Year Core Components: Probe, Transducer, Generator, Temperature Sensor, Lifting platform Power: 85~260V/50-60Hz Frequency: 19-26KHz Timer: 1S~99H Temperature setting: 0-300℃ Ultrasonic Power: 100-1500W Size: 320mm*268mm*445mm Processing Capacity: 150uL-3000mL
Mixer Type:Homogenizer Barrel Volume (L):150uL-3000mL Material Processed:Chemicals, Food, Medicine, Graphene Max. Loading Volume (L):3 L Max. Loading Capacity:3L Weight (KG):6.8 KG Material:Ti Condition:New Product Type:Laboratory Supplies Application:Homogenizer, Emulsifier, Cell Disruptor Additional Capabilities:Sound insulation, Touch Screen Control, Variable Power Place of Origin:Zhejiang, China Brand Name:Altrasonic Voltage:85~260V Dimension(L*W*H):320mm*268mm*445mm Power (kW):1.5 kW Warranty:1 Year Key Selling Points:Sound insulation Applicable Industries:Manufacturing Plant, Food & Beverage Factory, Energy & Mining, Food & Beverage Shops, Other, Laboratory Showroom Location:None Marketing Type:New Product 2023 Machinery Test Report:Provided Video outgoing-inspection:Provided Warranty of core components:1 Year Core Components:Probe, Transducer, Generator, Temperature Sensor, Lifting platform Power:85~260V/50-60Hz Frequency:19-26KHz Timer:1S~99H Temperature setting:0-300℃ Ultrasonic Power:100-1500W Size:320mm*268mm*445mm Processing Capacity:150uL-3000mL
