Ultrasonic pulverizer is a kind of multi-functional and multi-purpose instrument that uses strong ultrasound to produce cavitation effect in liquid and ultrasonically treat substances. It can be used for breaking animal and plant tissues, cells, bacteria, and spores. To emulsify, separate, disperse, homogenize, extract, degas, clean and accelerate chemical reactions. This machine is widely used in teaching, scientific research and production in the fields of biochemistry, microbiology, medicinal chemistry, surface chemistry, physics, zoology, agronomy, medicine, pharmacy, etc.
Payment:
T/T, Paypal, Western UnionProduct origin:
ChinaColor:
silver and blueShipping port:
Shanghai or NingboLead Time:
1020khz ultrasonic crushing machine, used for crushing animal and plant tissues, cells, bacteria and spores
Description：
It uses the dispersion effect of ultrasonic waves in the liquid to cause the liquid to produce cavitation, thereby breaking the solid particles or cell tissue in the liquid. Ultrasonic pulverizer is a multi-functional and multi-purpose instrument that uses strong ultrasound to produce cavitation effect in liquids and ultrasonically treat substances. It can be used for breaking animal and plant tissues, cells, bacteria, and spores. To emulsify, separate, disperse, homogenize, extract, degas, clean and accelerate chemical reactions. This machine is widely used in teaching, research and production in the fields of biochemistry, microbiology, medicinal chemistry, surface chemistry, physics, zoology, agronomy, medicine, pharmacy, etc. Principle Ultrasonic cell crushing equipment is composed of two parts: ultrasonic vibration components and special ultrasonic drive power (ultrasonic generator).

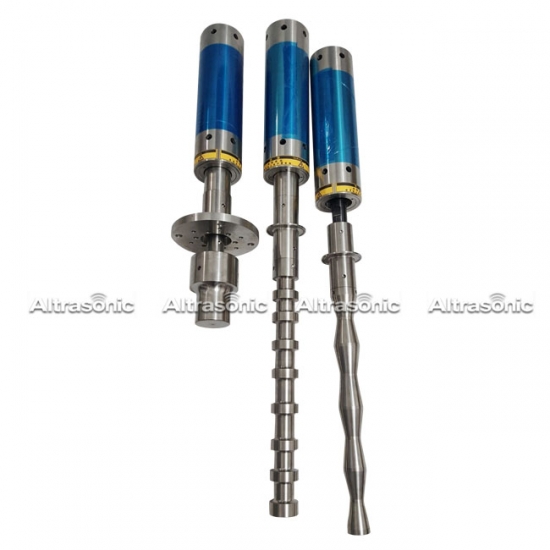

Ultrasonic vibration components mainly include ultrasonic transducers, ultrasonic horns, and ultrasonic tool heads for generating ultrasonic vibrations and emitting the vibration energy into the liquid. The transducer converts the input electrical energy into mechanical energy, namely ultrasound. Its manifestation is that the transducer stretches back and forth in the longitudinal direction, and the amplitude is generally several microns. Due to the insufficient amplitude, the ultrasonic transducer is connected to the horn to amplify the amplitude according to the design requirements, isolate the reaction solution and the ultrasonic transducer, and also play a role in fixing the entire ultrasonic vibration equipment. The tool head is connected with the horn, and the horn transmits the ultrasonic energy vibration to the tool head, and then the ultrasonic energy is emitted into the chemical reaction liquid by the tool head. Features There are two categories of products, laboratory grade and industrial grade, and various models (power 50W-3000W) to meet the needs of different customers. The energy conversion efficiency is high, reaching over 80%. The ultrasonic equipment has stable amplitude, long continuous working time, and the radiation area is 2.5 times larger than the traditional tool head. It adopts ultrasonic numerical control power supply, fully digital circuit control, and strong anti-interference ability. The frequency and power can be monitored in real time, and the power can be adjusted in stages, with automatic alarm protection function, and easy operation. Experimental ultrasonic sonochemical equipment is mainly used for laboratory tests or small-scale production. It has high frequency, small size, light weight, easy to carry, and has the characteristics of power frequency real-time monitoring and power adjustable.
Workshop:
CE:
Packing&Shipping:
Shipping Port:Shanghai
Shipping Term:By express,by air,by ocean and so on.
Leading Time:Quick production leading time and fast delivery.Usually 1-3days if we have in stock.
Payment:
Previous :
Hot sell ultrasonic cell crusher portable ultrasonic homogenizer new ultrasonic probe homogenizerNext :
Ultrasonic Sonochemistry Equipment for Oil Gas and Renewable FuelsIf you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Categories
New Products
High Efficiency 28khz Ultrasonic Sealing and Cutting Machine for Plastic Film Packing Bag Read More
Ultrasonic Welding Generator for N95 Mask Making Analog 15k Generator Read More
40kHz 800Watt Ultrasonic Converter BNC Connect Replace Branson 4TH Read More
Processing Special Surface of Mould Amplitude Stability Ultrasonic Milling Equipment Read More
New Product Clothing Manufacturing Rotary Sealing Machine Ultrasonic Sewing Machine Read More
The phenomenon of cavitation using power ultrasound to accelerate and control chemical reactions, increase the reaction rate and initiate new chemical reactions is called ultrasonic chemistry.
Ultrasonic homogenizer can make molecules from micron to nanoscale. It's used for oil-water emulsification, solid-liquid dispersion, cell diffusion.
In the generation and application of nano-scale materials, ultrasound is a very effective processing method.
The ultrasonic spot welding system is a very efficient and environmentally friendly mask ear band welding machine. The user can adjust the welding time according to the thickness of the welding mask. And the operation is very simple.
Mixer Type:Homogenizer Barrel Volume (L):0.015---0.2 Material Processed:Chemicals, Medicine Max. Loading Volume (L):0.2 L Max. Loading Capacity:200ml Weight (KG):3 KG Material:Ti Condition:New Application:Ultrasonic extraction and cell lysis, Machinery Place of Origin:Zhejiang, China Brand Name:Altrasonic Voltage:85~260v Dimension(L*W*H):147mm*42mm*42mm Power (kW):0.15 kW Warranty:1 Year Key Selling Points:Portable design Applicable Industries:Manufacturing Plant Showroom Location:None Marketing Type:New Product 2023 Machinery Test Report:Provided Video outgoing-inspection:Provided Warranty of core components:1 Year Core Components:Motor Function:Stable Type:Automatic Ultrasonic Frequency:30KHZ Feature:High Working Efficiency Item:Ultrasonic Homogenize Certificate:CE Certificate Approve
Mixer Type: Homogenizer Barrel Volume (L): 150uL-3000mL Material Processed: Chemicals, Food, Medicine, Graphene Max. Loading Volume (L): 3 L Max. Loading Capacity: 3L Weight (KG): 6.8 KG Material: Ti Condition: New Product Type: Laboratory Supplies Application: Homogenizer, Emulsifier, Cell Disruptor Additional Capabilities: Sound insulation, Touch Screen Control, Variable Power Place of Origin: Zhejiang, China Brand Name: Altrasonic Voltage: 85~260V Dimension(L*W*H): 320mm*268mm*445mm Power (kW): 1.5 kW Warranty: 1 Year Key Selling Points: Sound insulation Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Energy & Mining, Food & Beverage Shops, Other, Laboratory Showroom Location: None Marketing Type: New Product 2023 Machinery Test Report: Provided Video outgoing-inspection: Provided Warranty of core components: 1 Year Core Components: Probe, Transducer, Generator, Temperature Sensor, Lifting platform Power: 85~260V/50-60Hz Frequency: 19-26KHz Timer: 1S~99H Temperature setting: 0-300℃ Ultrasonic Power: 100-1500W Size: 320mm*268mm*445mm Processing Capacity: 150uL-3000mL
Mixer Type:Homogenizer Barrel Volume (L):150uL-3000mL Material Processed:Chemicals, Food, Medicine, Graphene Max. Loading Volume (L):3 L Max. Loading Capacity:3L Weight (KG):6.8 KG Material:Ti Condition:New Product Type:Laboratory Supplies Application:Homogenizer, Emulsifier, Cell Disruptor Additional Capabilities:Sound insulation, Touch Screen Control, Variable Power Place of Origin:Zhejiang, China Brand Name:Altrasonic Voltage:85~260V Dimension(L*W*H):320mm*268mm*445mm Power (kW):1.5 kW Warranty:1 Year Key Selling Points:Sound insulation Applicable Industries:Manufacturing Plant, Food & Beverage Factory, Energy & Mining, Food & Beverage Shops, Other, Laboratory Showroom Location:None Marketing Type:New Product 2023 Machinery Test Report:Provided Video outgoing-inspection:Provided Warranty of core components:1 Year Core Components:Probe, Transducer, Generator, Temperature Sensor, Lifting platform Power:85~260V/50-60Hz Frequency:19-26KHz Timer:1S~99H Temperature setting:0-300℃ Ultrasonic Power:100-1500W Size:320mm*268mm*445mm Processing Capacity:150uL-3000mL
Mixer Type:Homogenizer Barrel Volume (L):150uL-3000mL Material Processed:Chemicals, Food, Medicine, Graphene Max. Loading Volume (L):3 L Max. Loading Capacity:3L Weight (KG):6.8 KG Material:Ti Condition:New Product Type:Laboratory Supplies Application:Homogenizer, Emulsifier, Cell Disruptor Additional Capabilities:Sound insulation, Touch Screen Control, Variable Power Place of Origin:Zhejiang, China Brand Name:Altrasonic Voltage:85~260V Dimension(L*W*H):320mm*268mm*445mm Power (kW):1.5 kW Warranty:1 Year Key Selling Points:Sound insulation Applicable Industries:Manufacturing Plant, Food & Beverage Factory, Energy & Mining, Food & Beverage Shops, Other, Laboratory Showroom Location:None Marketing Type:New Product 2023 Machinery Test Report:Provided Video outgoing-inspection:Provided Warranty of core components:1 Year Core Components:Probe, Transducer, Generator, Temperature Sensor, Lifting platform Power:85~260V/50-60Hz Frequency:19-26KHz Timer:1S~99H Temperature setting:0-300℃ Ultrasonic Power:100-1500W Size:320mm*268mm*445mm Processing Capacity:150uL-3000mL
