High quality Ultrasonic Measuring Instrument Transducer Analyzer

High quality Ultrasonic Measuring Instrument Transducer Analyzer

Cheap and Sample Piezoelectric Transducers Testing Instrumen

  • Item No.:

    HS-520A
  • Payment:

    T/T, Paypal, Western Union
  • Product origin:

    China
  • Color:

    White
  • Shipping port:

    Shanghai or Ningbo
  • Product Details

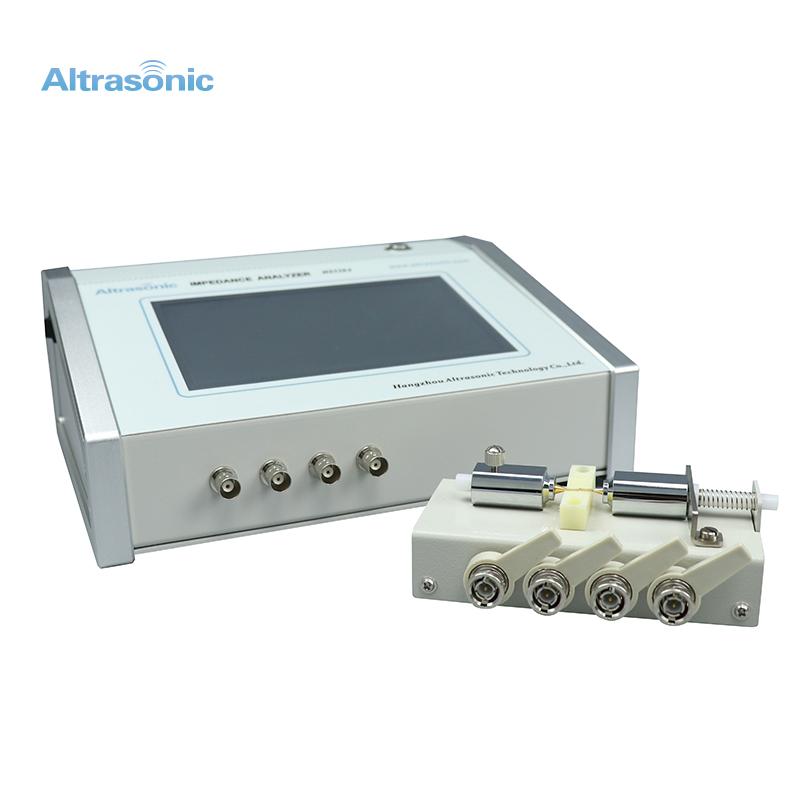

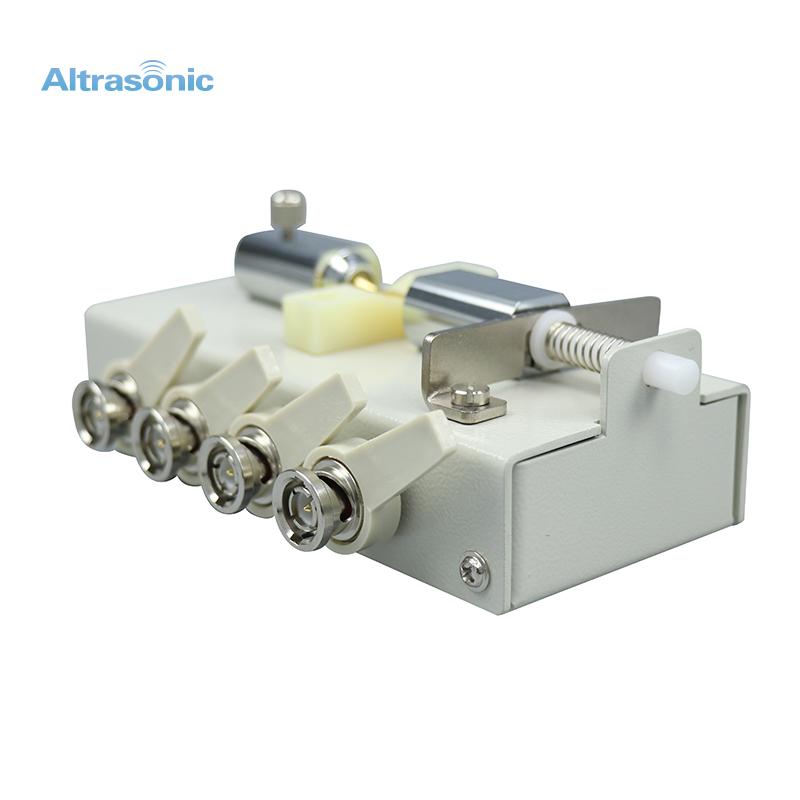

High quality Ultrasonic Measuring Instrument Transducer Analyzer



Description:



In the production of ultrasonic components, we will observe the current of the device to detect the resonance and anti-resonance frequencies and their respective electrical impedances. Because anti-resonance is the frequency at which the current meets the maximum impedance, resonance is the frequency of the minimum impedance. Altrasonic's impedance analyzer can detect the minimum and maximum current points while scanning the drive frequency, thereby detecting resonance and anti-resonance frequencies. The detection instrument comes with an ARM processor, which can be impedance. The operation is simple and easy to carry.



Advantage:



Practicality and ease of use. No need for ultrasonic expertise.

Allows the quality control of ultrasonic transducers reducing technical assistance.

Makes fast and accurate manufacturing of sonotrodes possible.

Affordable cost.

Reduces ultrasonic equipment maintenance costs because it allows preventive maintenance.



Specification:



Impedance Analyzer HS520A Newest
Frequency Range 1KHz~500KHz/1Mhz/3Mhz/5Mhz
Basic Accuracy < 0.5%
Scan Speed 5 sec/one pass (equivalent to 600 scan dots)
Frequency Accuracy ±10 ppm
Phase Accuracy 0.15 degree
Temperature Range 10~40 degree Celsius
Impedance Range 0.1Ω~1MΩ
Frequency Step 0.1Hz to Any
Measure Items Resonance Frequency: Fs
Half Power Frequency: F1 and F2
Maximum real admittance at Fs: Gmax
Dynamic Resistance: R1
Anti resonance frequency: Fp
Mechanical quality factor: Qm
Free capacitance: CT
Dynamic inductance: L1
Dynamic capacitance: C1
Static capacitance: Co
electromechanical coupling coefficient: Keff and Kp
Maximum real impedance at Fp: Zmax
Measure Diagram G,B-F
G-B (admittance circle coordinate)
R,X-F
R-X (impedance circle coordinate)
Z,phase-F
Y,phase-F
Z(Logarithm),phase-F
Amplification

piezoelectric ceramic, ultrasonic transducer, power ultrasonic,

ultrasonic weld, ultrasonic clean, ultrasonic sensor

Dimensions : 240mm*190mm*100mm

Size of LCD Screen: 8-inch screen





Application :



Auto parts manufacturers (maintenance, horn manufacturing and receipt inspection)

Ultrasonic welder manufacturers (tuning process, quality control and horn development)

Ultrasonic cleaner manufacturers (tuning process and quality control)

Medical equipment manufacturers (quality control and receipt inspection)

Healthcare industry (maintenance, horn manufacturing and receipt inspection)

Mattress manufacturers (maintenance and receipt inspection)

Wire dies manufacturers (maintenance and horn manufacturing)

White line manufacturers (receipt inspection)

Footwear manufacturers (maintenance and horn manufacturing)

Underwear manufacturers (maintenance and horn manufacturing)

Fish finder manufacturers (quality control and underwater transducers development)

Eyeglass lenses manufacturers (maintenance of cleaning systems)

Fishing lures manufacturers (maintenance and horn manufacturing)

Water and energy meters manufacturers (maintenance and horn manufacturing)

Mining industry (maintenance and ultrasonic cleaning boxes refurbishing)

Ultrasonic additive industry (maintenance, horn manufacturing and development)

Research groups (piezoelectric and ultrasonic devices development)

R&D departments (product development)

Sensors manufacturers (maintenance, quality control and receipt inspection)



FAQ:



Q: Can this analyzer connect to PC ?

A: Our ultrasonic impedance analyzer can connect to PC operation for storage, you can also check the operation video on our YTB:https://youtu.be/AY16fSjw8ZM

Q:Can data be stored in the storage media (USB Hard Drive... etc.)?

A: At present, it support PC storage, we have reserved USB port and after we update the software,the date can be directly storaged into USB Hard Drive or mobile phone.

Q:How to judge the defects for the ceramic on you analyzer?

A: For piezoelectric ceramics, the merits of the device can be judged directly from admittance circle plots and logarithmic coordinates. If there are delaminations or cracks inside the ceramic plate, the logarithmic curve will appear multi-peaked, and the admittance circle diagram will appear more than one Parasitic small round.





Workshop:


CE:



Warranty:

One year Warranty with none human damage.In this period factory will responsible for repair fix it for free or factory will send the new parts to customer instead of the broken parts for free.After warranty time,factory will repair fix it or send the new parts on cost price




Quality:

 3 times old test to confirm the products is well quality.

20 technician work together , and learn together , to improve our products.

48 hours working time to test the stability of our product before sending out.
