Ultrasonic sound intensity measuring instrument is a kind of equipment specially used to measure ultrasonic sound intensity in liquid. The so-called sound intensity is the sound power per unit area, and the size of the sound intensity directly affects the effect of ultrasonic cleaning, ultrasonic emulsification, ultrasonic extraction, ultrasonic dispersion, etc.
Item No.:
HS-TG320、HS-TG321、HSPayment:
T/T、PaypalProduct origin:
ChinaGoods_stock:
1000Shipping port:
ShangHai、NingBoLead Time:

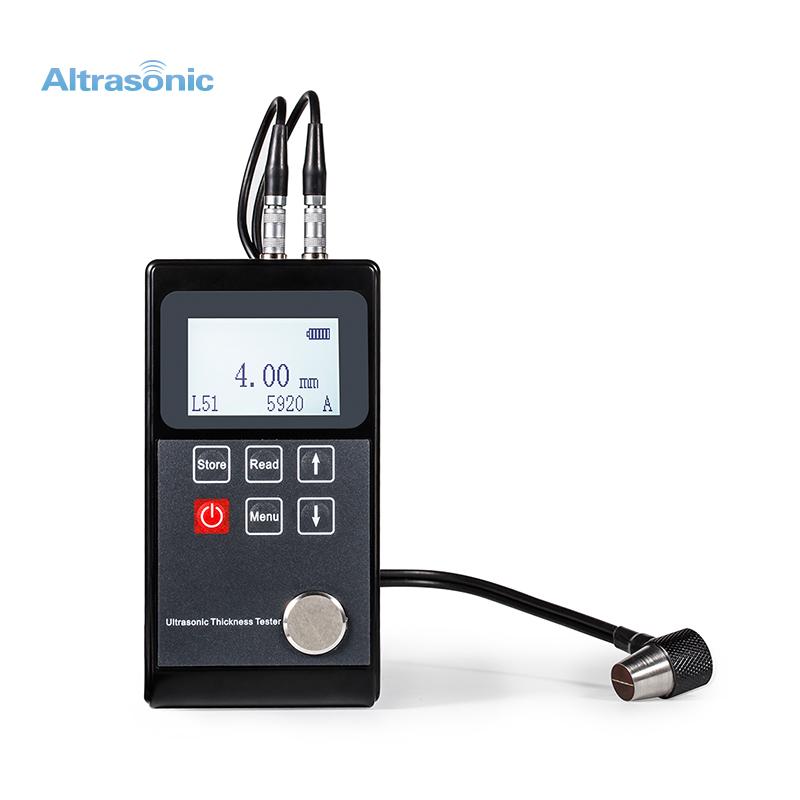

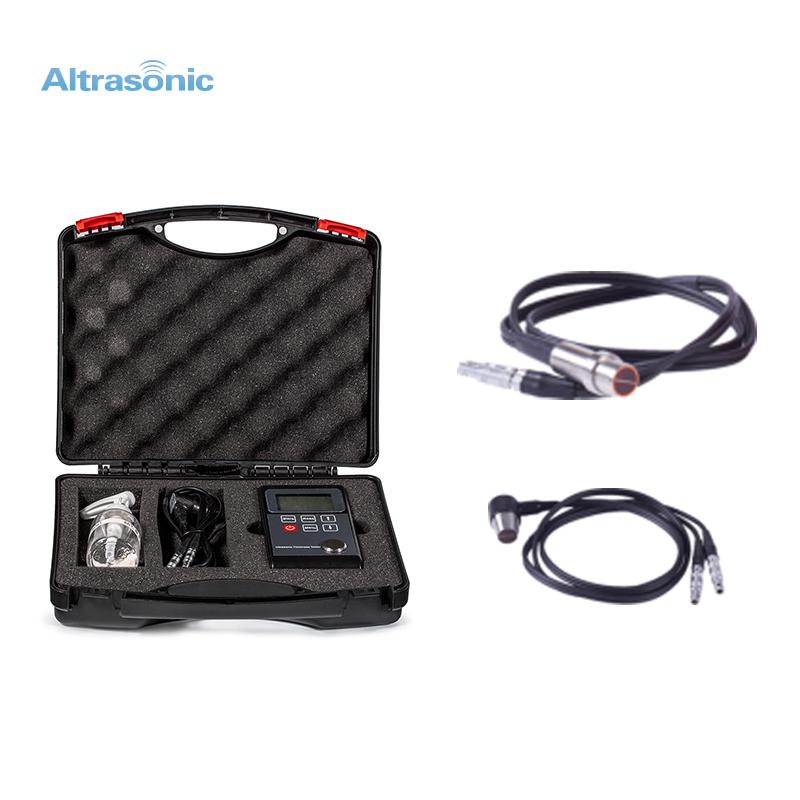

30High Performance Parts Thickness Accurate Measurement Ultrasonic Thickness Gauge
Related applications:

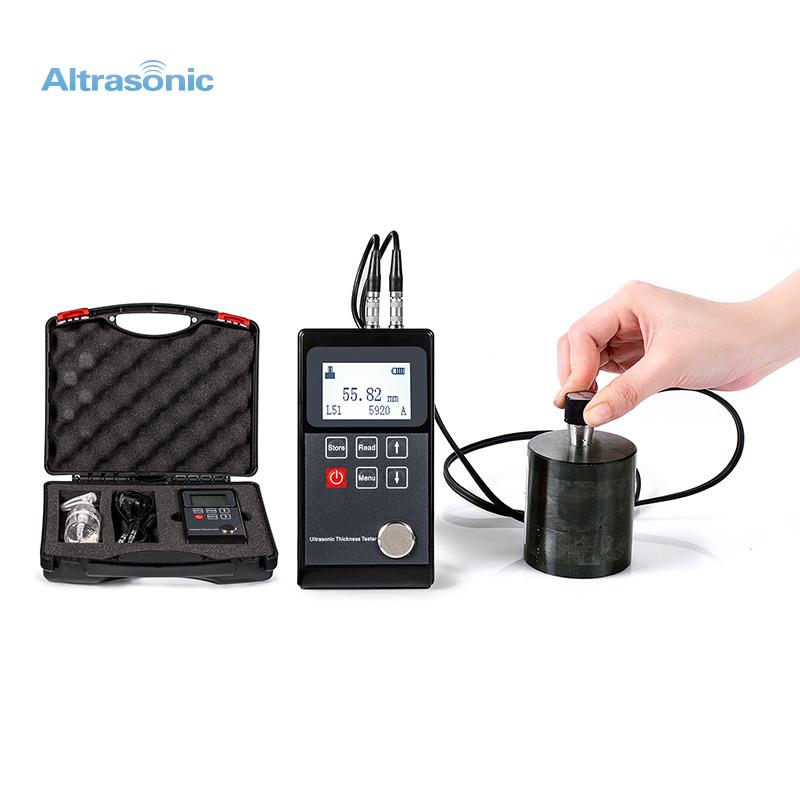

Due to the convenience of ultrasonic processing, and has good directivity, ultrasonic technology to measure the thickness of metal, non-metallic materials, fast and accurate, no pollution, especially in only one side can be touched on the occasion, more can show its advantages, widely used in a variety of plates, pipe wall thickness, boiler container wall thickness and local corrosion, rust, etc. Therefore, the product inspection of metallurgy, shipbuilding, machinery, chemical industry, electric power, atomic energy and other industrial departments plays a major role in the safe operation and modern management of equipment.
Technical Specification
| Model | HS-TG320 | HS-TG321 | HS-TG322 |
| Measuring range(mm) | 0.7~300 | ||
| Resolution(mm) | 0.1 | 0.01 | |
| Accuracy(mm) |
±(1%H+0.1) H refers to the thickness of testing piece |
±(0.5%H+0.01) H refers to the thickness of testing piece |
|
| Velocity range(m/s) | 5920 | 1000~9999 | |
| Storage | No | 500 Groups | |
| Shell | Plastic | ||
| Operating Temperature | -10°C~60°C | ||
| Dampness | 20%~90% | ||
| Dimensions(mm) | 130×70×250 | ||
| Power supply | AAA alkaline batteries | ||
| Weight (g) | 200g | ||
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
