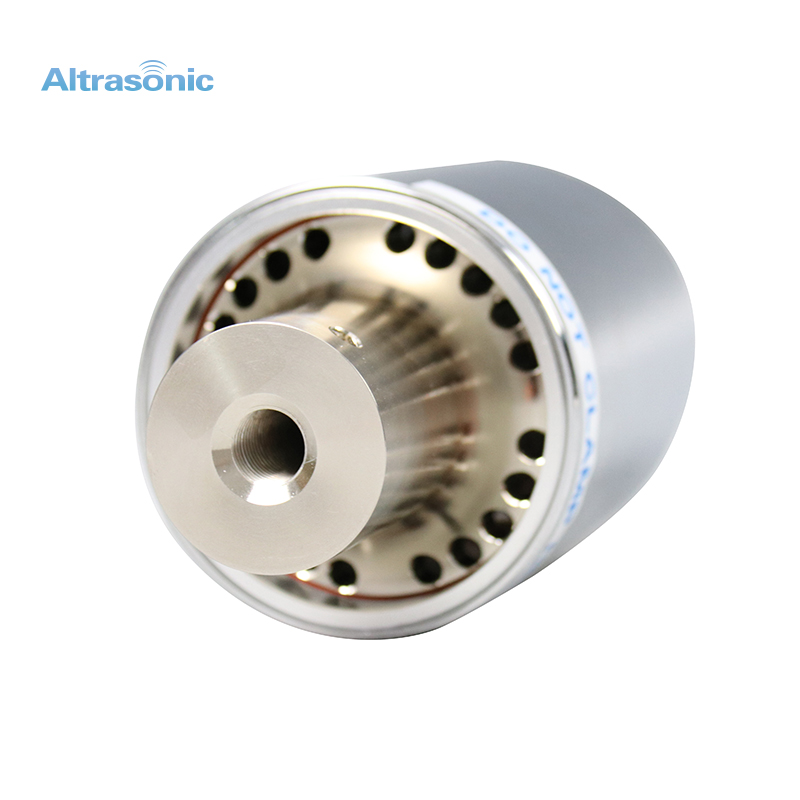

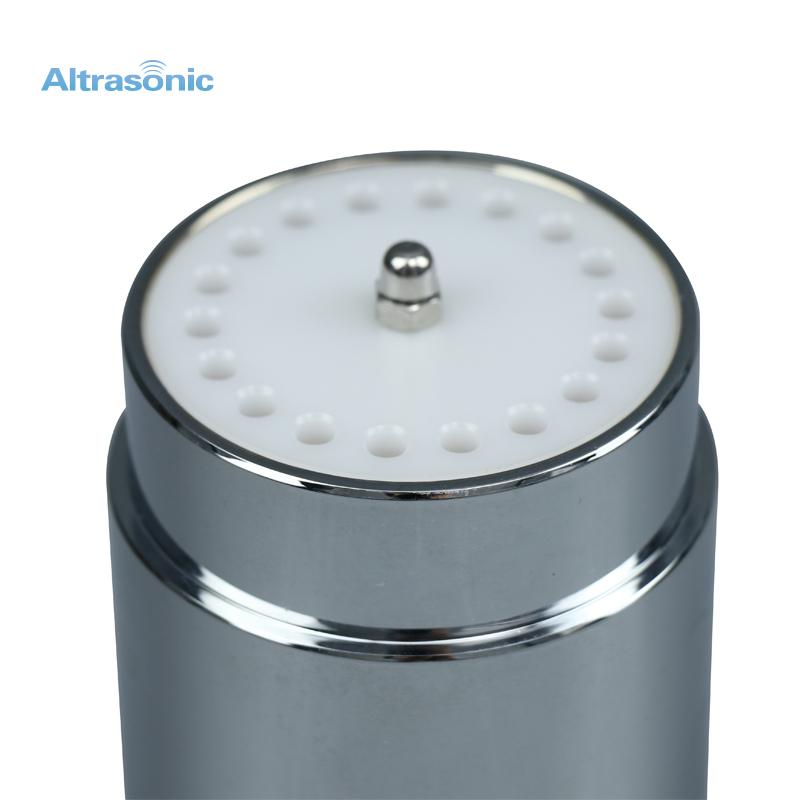

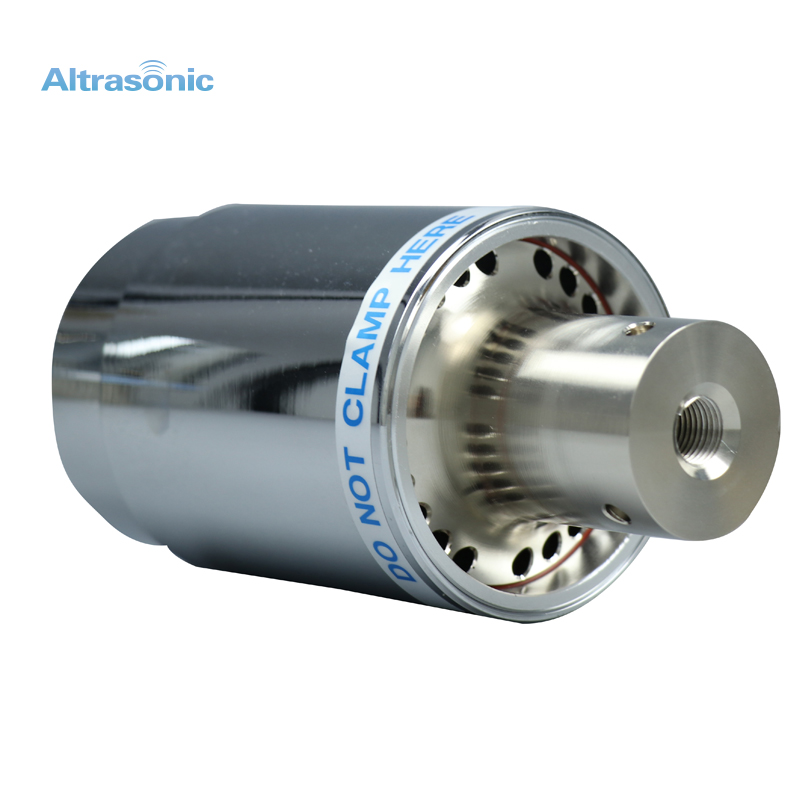

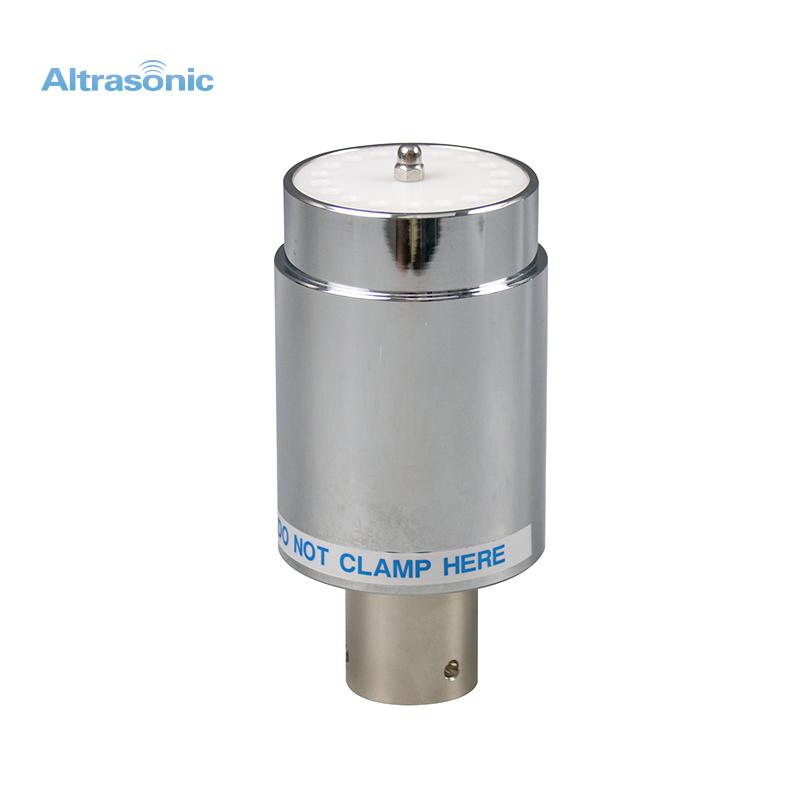

High Performance 20 um Ultrasonic Transducer For Replacement Branson 922JA

High Performance 20 um Ultrasonic Transducer For Replacement Branson 922JA

Description:

The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.

Specification:

Advantages:

1. Titanium materials and Aluminum materials optional.

2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

3. One by one testing to ensure that each transducer performance are excellent.

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.

Applied Range:

Directly replaces Branson model 922JA Converter as used in 920 IW, IW+, AE, AES and AO actuator and IW machines.
