The Converter is all-new made in China and it meets all Branson specifications. It can directly replaces Branson 803.The materials are certified and the product is made in ISO-9002 registered facility.
Item No.:
HS-B803Payment:
T/T, Paypal, Western UnionProduct origin:
ChinaColor:
SliverShipping port:
Hangzhou or ShanghaiLead Time:
7

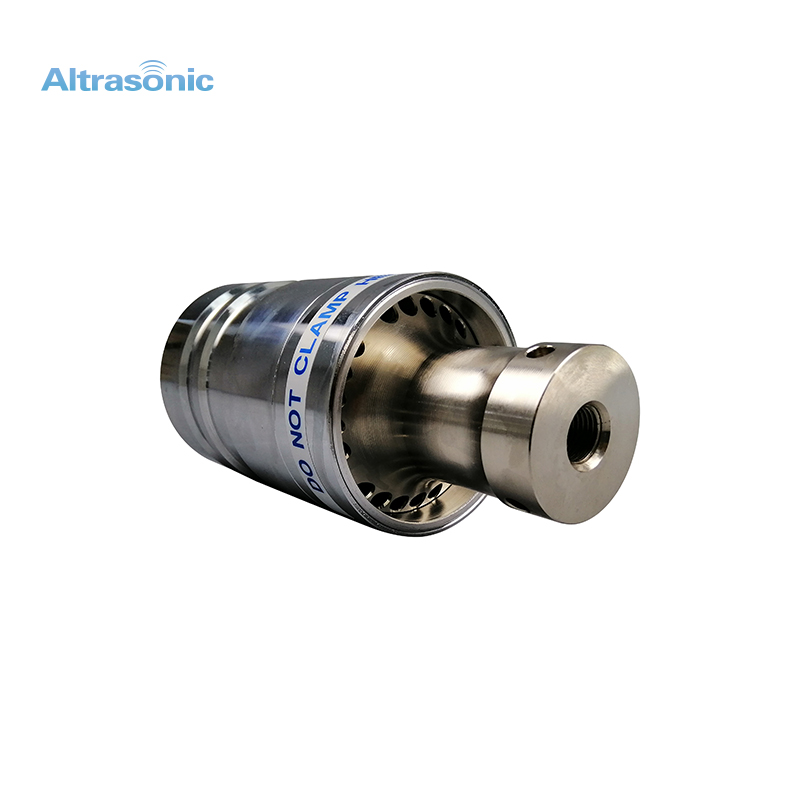

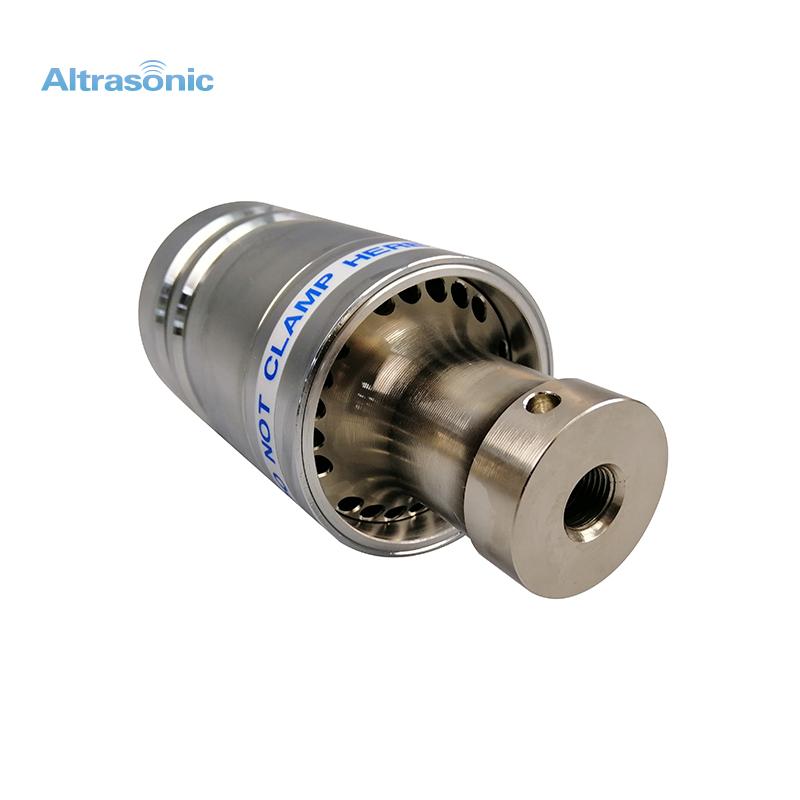

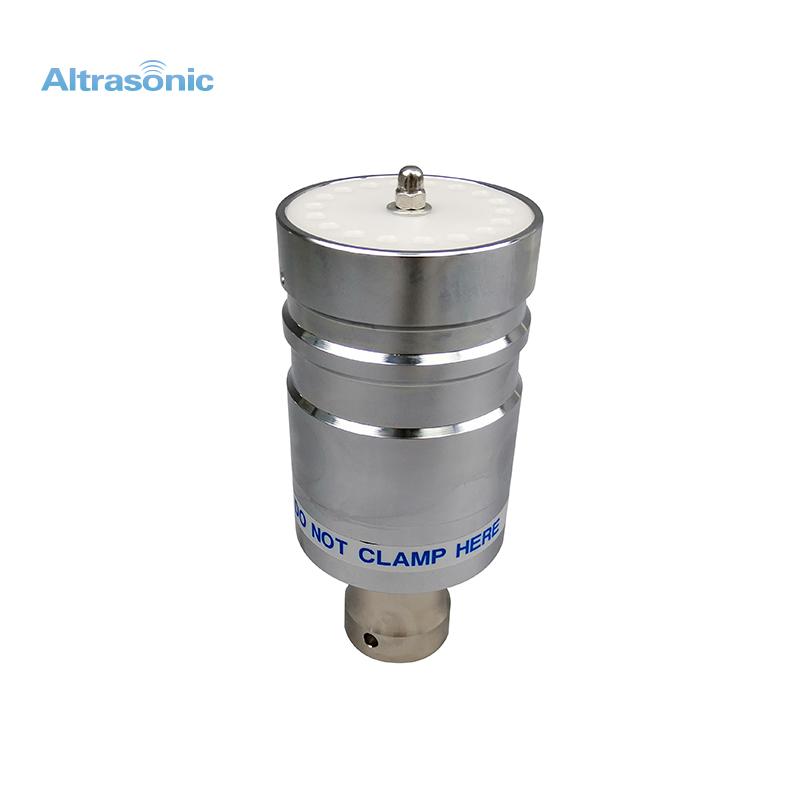

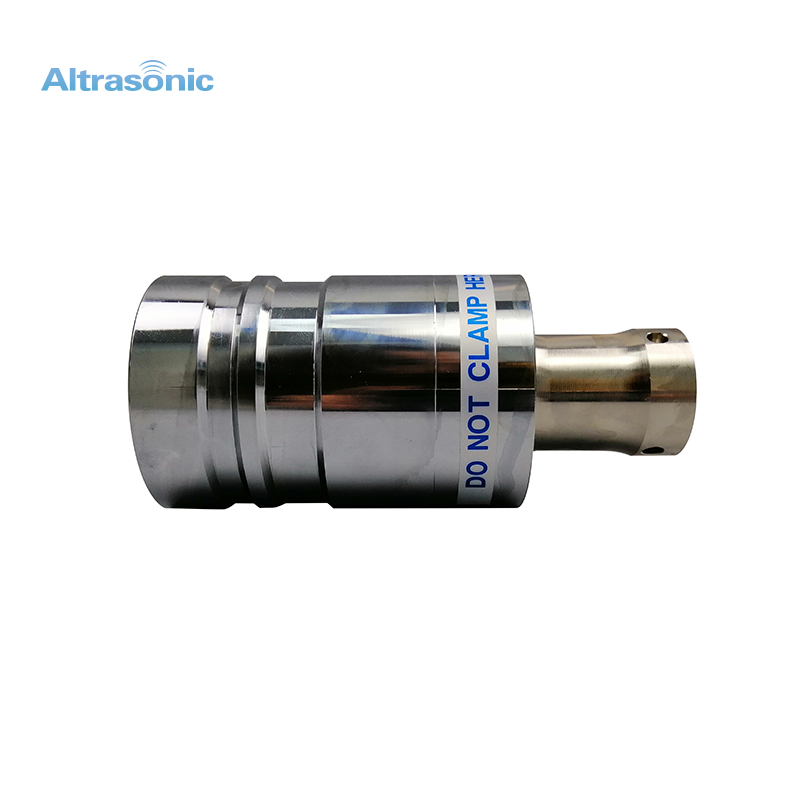

Customized Ultrasonic Converter For Replacement Branson With Big Discount
Description:
Ultrasonic transducers convert alternating current into ultrasound and vice versa. The transducers typically use piezoelectric transducers or capacitive transducers to generate or receive ultrasound. Ultrasound transmitters can also use non-piezoelectric principles. such as magnetostriction. Materials with this property change size slightly when exposed to a magnetic field and make practical transducers.The transducer can direct replacement for the Branson machine that delivers lower cost, rugged quality and superior value.
Specification:
Capacitance
Item No
HS-B803
Frequency
20 kHz
Power
1500 watt
Connect screw
1/2-20UNF
Diameter of ceramic
50 mm
Quantity of ceramic
4pcs or 6pcs
11.5-12.5 nf
Advantages:
1. Once assembled, the transducers are aged before testing and final assembly.
2. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.
3. We can provide samples for testing。
4. Perfect resonance image due to high-quality materials and select material pairings
Previous :
Stock available Ultrasonic Transducer For Replacement Branson With Reasonable PriceNext :
Best Performance Branson 803 Replacement 1500 W Ultrasonic TransducerIf you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
