Car Front and Rear Door Trim Panel Assembly Ultrasonic Welding Tooling

In the Auto industry, ultrasonic puncture welding is not strange to us. Take the actual internal product as a reference, Share some ultrasonic puncture welding designs for internal and external Auto parts. There are some ultrasonic puncture welding technology, such as auto wheel arch welding, car door panel welding, Auto radar support welding, Auto spoiler welding and so on.

Item No.:
HS-PT30
Payment:
TT, West union, Paypal
Market price:
$1650
Price:
$890/unit
Product origin:
China
Shipping port:
Shanghai

Product Details

Car Front and Rear Door Trim Panel Assembly Ultrasonic Welding Tooling

Description:

The auto door panel welding machine is also called the auto door panel interior trim panel welding machine. It uses the ultrasonic puncture welding technology to weld the two door panels together. the two door plank interior strength meet customer requirements, The equipment is designed to be symmetrical piece welding machine, it adopts PLC control parameters, semi-automatic production is realized.

How to use ultrasonic puncture welding technology?

It was decided by product material, best of same material, or a mixture of materials and other materials. It depends on whether the ultrasonic wave of two kinds material can be fused. You can send the material to try to test.

How to design ultrasonic puncture welding?

Usually it is up and down welding. The characteristics of puncture welding, there will certainly be a scar on one side, the other side may not be seen if thickness. Many customers are concerned about material issues and also they care about how to design. Here we share the actual ultrasonic puncture welding cases. There are some differences in the products of different ultrasonic puncture welding. The content is for reference only.

Specifications:

Model	HS-40	HS-35	HS-30	HS-28	HS-20
Frequency	40khz	35khz	30khz	28khz	20khz
Power	500W	500~800w	500~800w	500~800w	500~1000w
Horn	≤10mm	≤10mm	≤10mm	≤12mm	≤13mm
Housing Diameter	44mm	44mm	44mm	44mm	64mm
Weight of Welder	1.0kg	1.0kg	1.0kg	1.0kg	1.5kg

Gun and Cylinder Type of Horn

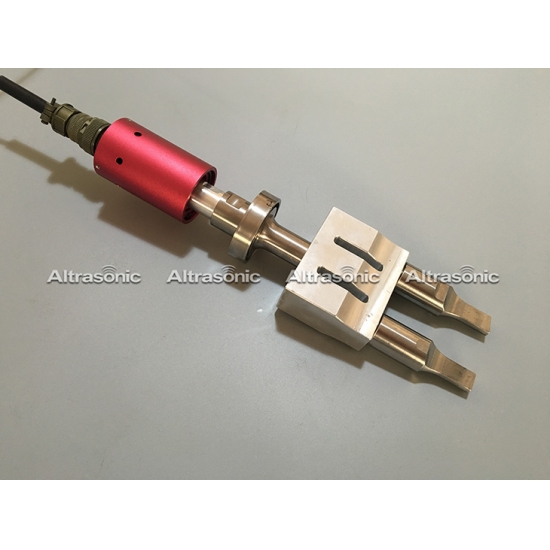

Gun type: in accordance with the shape design of human body engineering, ultrasonic start switch is located on the trigger, easy to grasp and use the welding operation, especially suitable for horizontal or vertical.

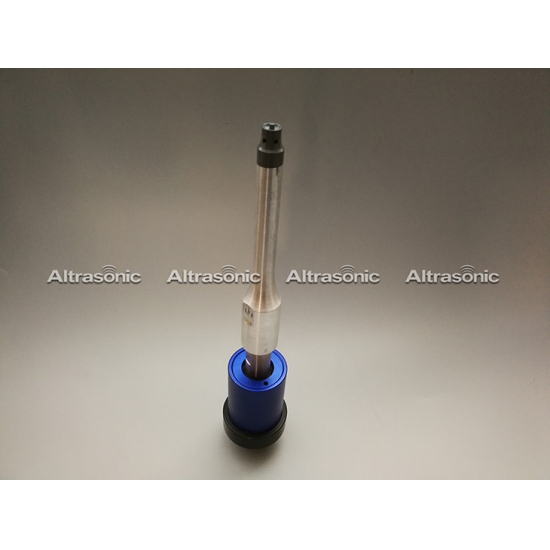

Cylinder type: for the appearance of design straight, ultrasonic start switch is located outside the cylinder, easy welding and hand carried, can also be installed between the on machine, welding operation for each direction.

Portable Ultrasonic Plastic Door Panel Riveting Principle:

When the ultrasonic role in the thermoplastic plastic contact surface, it will generate tens of thousands of times per second, high frequency vibration, this high-frequency vibration, ultrasonic energy through the ultrasonic wave transmitted to the mold to ultrasonic welding material surface, it will produce high-temperature materials. Plastic contact surface resulting in rapid melting, coupled with stress, it blend and coagulation, so that to achieve the purpose of ultrasonic welding.

Applications In Automobile:

Ultrasonic Spot Welding is mainly used in automotive interior parts. Ultrasonic spot welding in sound-proof cotton of engine cover, trunk and wheel casing, and hallstand felt. Ultrasonic Riveting Welding can be used in automobile air-conditioning outlet welding, car rear view mirror, car door handles, hand car door and so on.

Automotive plastic parts are mostly welded in non-standard ultrasonic welding equipment, long multi-station design, with PCL program control and LCD operation, large automotive complex workpiece welding, including different directions of the welding surface, in multiple locations.
